Aspheric Lens Collimators
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
YSenser -
On FindLight:
since 2025
Description
The aspherical lens's unique aberration-correction design empowers it to execute highly efficient and accurate collimation of light beams. As a result, the energy of the output light beam assumes a Gaussian distribution. Both surfaces of the lens are coated with anti-reflection films, that significantly decrease surface reflection losses and substantially improve the light transmittance. Nevertheless, the aspherical lens possesses certain inherent characteristics. Specifically, it exhibits a chromatic aberration phenomenon, with a strong correlation existing between its effective focal length (EFL) and the wavelength. During the manufacturing, the relative positioning of the lens and the optical fiber has undergone extremely precise adjustments. This ensures that the deflection angle of the emitted light beam is maintained within an exceedingly narrow range of 0.5 degree. Consequently, it is better equipped to adapt to diverse application scenarios and system requirements.

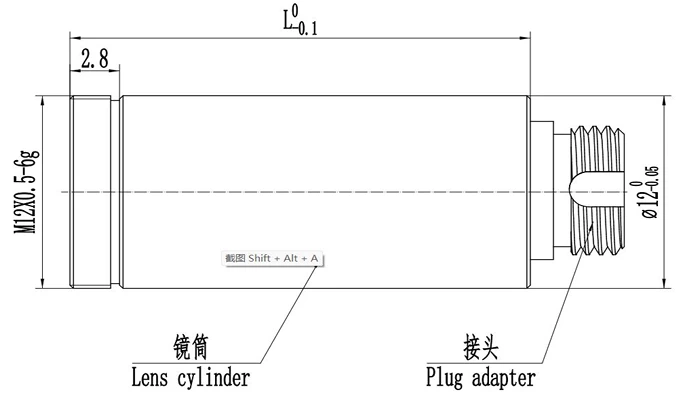

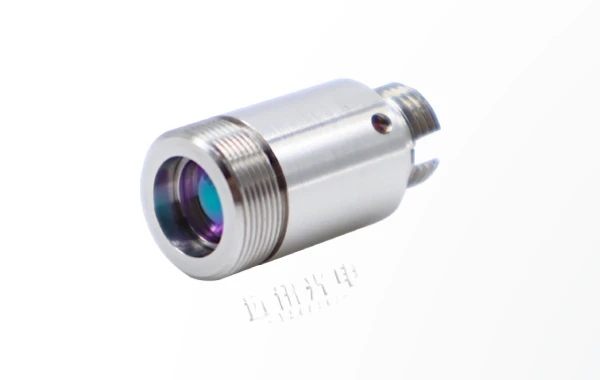

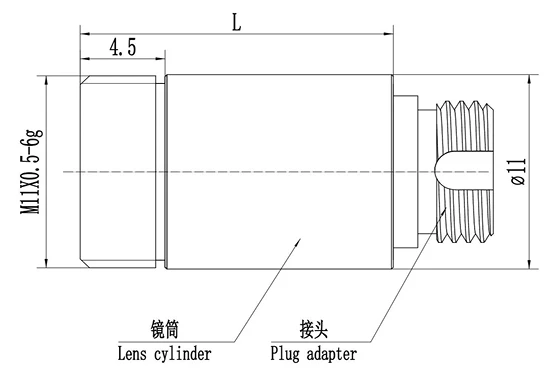

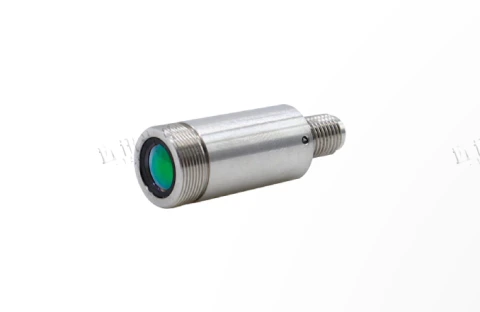

Aspheric Lens Collimators
Specifications |
|
|---|---|
| Wavelength: | 405 nm |
| Export Beam Size: | 0.8 mm |
| Divergence Angle: | 0.06°+0.01° |
| Package Dia.: | Φ11 mm，Φ12 mm |
| Bandwidth: | ±5 nm |
| SM Fiber Type: | 405HP, 460HP, 630HP, 780HP, 780HP, HI1060, Smf-28e |
| Transmittance: | >95% |
Features
- Three Connector Options: FC/PC, FC/APC, SMA905
- Compatible with Narrow and Wide Key Connectors
- Compact structure, Convenient for installation
- Custom Options including wavelengths
Applications
- Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
- Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
- Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
- Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
- Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
- Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices
Frequently Asked Questions
The available wavelengths for the YSF series connectors are 405nm, 450nm, 520nm, 633nm, and 780nm.
The transmittance percentage for the YSF-405-B0.8-FC/PC model is ≥95%.
The maximum power for the YSF-520-B0.8-FC/PC model is 1W/mm².
The divergence angle for the YSF-450-B0.9-FC/PC model is 0.04° + 0.01°.
The numerical aperture (NA) for the YSF-633-B2.3-FC/PC model is 0.25.
The size of the output beam for the YSF-520-B4.1-FC/PC model is 4.09mm ±10%.
Yifeng Chuangzhi Technology Valley is located at No. 1515 Fengxin Road, Fengxi New Town, Xixian New Area, Shaanxi Province, China.
