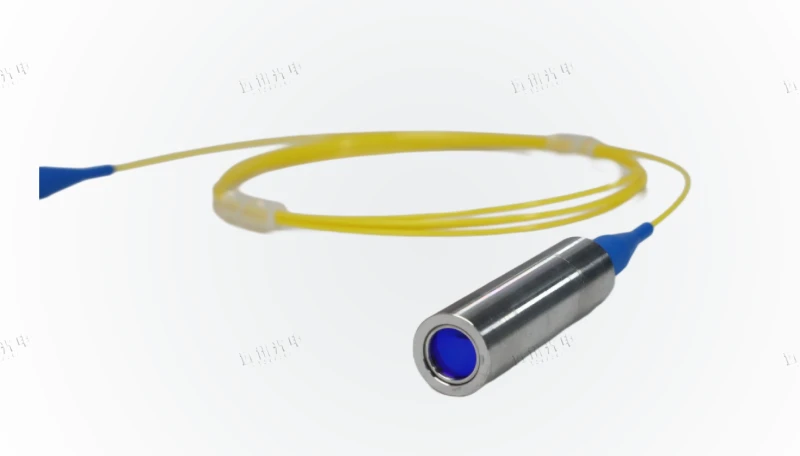

Aspheric Lens Collimators with Fiber 405nm-1550nm

Discover the cutting-edge range of precision-engineered optical components from YSenser, meticulously designed to meet the highest standards of performance and reliability. Our extensive selection of products is crafted to cater to the diverse needs of industries that demand unparalleled precision and quality. At the heart of our offerings is our commitment to delivering superior optical solutions that empower innovation and efficiency in various applications.

YSenser's optical components are distinguished by their meticulous construction and exceptional attention to detail. Each product is crafted to ensure optimal performance, with precise beam size, divergence angles, and effective focal lengths that are tailored to specific wavelength requirements. These components are designed to minimize output loss and maximize return loss, ensuring that each product delivers consistent and reliable results in demanding environments.

Our products are built using high-quality fibers, such as Nufern and Corning, renowned for their durability and performance. These fibers are selected to match the specific needs of each component, providing the ideal mode field diameter and maximum power capabilities. Whether you require products for wavelengths ranging from 405nm to 1550nm, Ysenser offers a comprehensive range of solutions that are engineered to meet your exact specifications.

With a focus on innovation and excellence, YSenser continues to set the standard in optical component manufacturing. Our commitment to quality ensures that each product not only meets but exceeds industry expectations, providing you with the tools you need to drive success in your projects and applications. Experience the difference with YSenser's premium optical components and elevate your performance to new heights.

Aspheric Lens Collimators with Fiber 405nm-1550nm

Specifications

Center Wavelength: 1064 nm
Bandwidth: 10 nm
Numerical Aperture: 0.24
Effective Focal Length (EFL): 4.67 mm
Beam Size (model Dependent): 0.85mm ± 0.1mm
Divergence Angle (model Dependent): 0.015°+0.01° ~ 0.11°+0.01°
Wavelength (model Dependent): 400 ~ 1600nm (+/-5nm)
NA (model Dependent): 0.15 - 0.24 (model dependent)
Output Loss: ≤0.5dB
Return Loss: ≥55dB
Fiber Type: 405HP, 460HP, 630HP, 780HP, Hi1060, G652D, G657A1, G657A2
MFD: 3.0 - 10.4um ± 0.5 um
Max. Power: 500mw
Manufacturer Part Number (MPN): Refer to Datasheet
FindLight SKU: FL-23761

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • The deflection angle of the emitted light and the deviation of the emitted light center are both minuscule
  • Fiber Type Options: 405HP/460HP/630HP/780HP/Hi1060/G625D
  • Connector Options: FC/PC, FC/APC, LC, SC, SMA905
  • The Type of Cable Options: PVC 0.9mm / 2.0mm / 3mm, 3mm armored cable, 3mm stainless steel, 0.9mm Teflon
  • The packaging material is 304 stainless steel, and the structure is compact and reliable
  • It can be customized with a packaging structure for applications in a non-magnetic and vacuum environment

Applications

  • Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
  • Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
  • Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
  • Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
  • Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
  • Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices

Export & Trade Information

ECCN: EAR99
HTS Code: 9002.90.9500
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What wavelengths are available for these fiber products?
The available wavelengths for these fiber products are 405nm, 532nm, 633nm, 780nm, 850nm, 980nm, 1064nm, 1310nm, and 1550nm.
What is the typical beam size for these fibers?
The beam size varies by model, ranging from approximately 0.84mm to 4.0mm, with specific tolerances provided for each product.
What are the typical numerical aperture (NA) values for these fibers?
The typical numerical aperture (NA) for these fibers is 0.15, 0.24 or 0.25, depending on the specific product.
What is the return loss specification for these fibers?
The return loss for these fibers is specified to be greater than or equal to 55dB.
What are the core sizes (mode field diameter) for these fibers?
The core sizes, or mode field diameters (MFD), range from 3.0±0.5 um to 10.4±0.5 um, depending on the specific fiber.
What fiber types are used in these products?
The fibers are made from various types, including Nufern 405HP, Nufern 460HP, Nufern 630HP, Nufern 780HP, Corning Hi1060, and G652D/G657A1/G657A2 for the FSD series.
Are customs duties, tariffs, value added tax (VAT) included in the price?
No, the listed price does not include any customs duties, tariffs, or the VAT.
