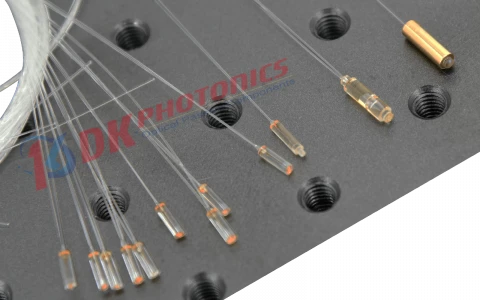

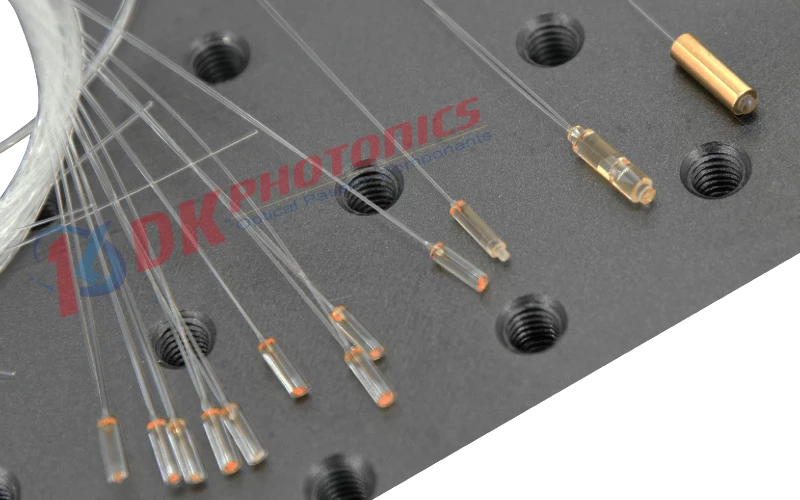

Thumbnail of 1064nm Single Mode Single Fiber Collimator photo 1

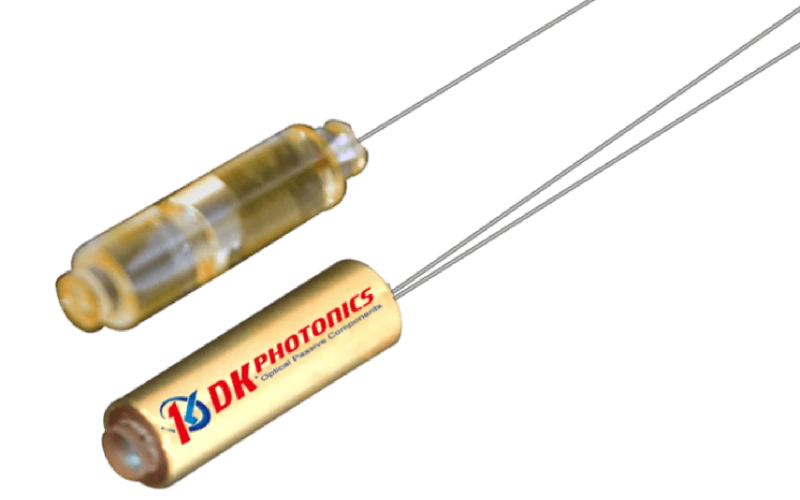

Thumbnail of 1064nm Single Mode Single Fiber Collimator photo 2

Description

The 1064nm Single Mode Single Fiber Collimator from DK Photonics is a precision optical component designed for high-performance fiber optic systems. As a fundamental building block for in-line fiber optics devices—including isolators, circulators, switches, and WDM modules—this collimator is engineered to deliver exceptional optical performance in demanding environments. Its compact form factor and robust construction make it suitable for integration into both laboratory setups and industrial applications where space and reliability are critical.

This collimator stands out for its low insertion loss and high return loss, ensuring minimal signal degradation and optimal transmission efficiency. The advanced anti-reflection (AR) coating and meticulous manufacturing process enable the device to handle higher optical power levels, making it ideal for applications such as laser signal processing, fiber laser systems, and high-power optical communication networks. The wide operating wavelength range further enhances its versatility, allowing it to be deployed across various photonics platforms.

DK Photonics’ SM Fiber Collimator is also highly customizable, catering to specific project requirements. Whether you need different working distances, fiber types, or handling power, the product can be tailored to meet unique specifications. This flexibility, combined with its high reliability and stability, makes it a preferred choice for research institutions, OEMs, and system integrators seeking consistent performance and long-term durability in their optical setups.

Overall, the 1064nm Single Mode Single Fiber Collimator is a reliable and efficient solution for coupling and collimating light in single-mode fiber systems. Its precision engineering and adaptability ensure it meets the rigorous demands of modern photonics applications, providing users with a dependable component for both standard and custom optical assemblies.

1064nm Single Mode Single Fiber Collimator

Visit the DK Photonics Store

Specifications

Center Wavelength: 1064 nm
Bandwidth: 60 nm
Numerical Aperture: Not Specified
Effective Focal Length (EFL): Not Specified
Type: Standard
Max. Working Distance: 20 mm
Max. Insertion Loss (λc): 0.25 dB
Waist Beam Diameter: ~0.35 mm
Min. Return Loss: 60 dB
Fiber Type: 1060-XP
Max. Power Handling: 10 W
Operating Temperature: -5 to +70 ℃
Storage Temperature: -40 to +85 ℃

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Insertion Loss: Ensures minimal signal loss for high-performance optical systems.
  • Low Polarization Dependent Loss (PDL): Maintains signal integrity across varying polarization states.
  • Wide Operating Wavelength Range: Optimized for 1064nm, with customizable options for other wavelengths.
  • High Return Loss: Reduces back reflections, improving system stability and performance.
  • High Power Handling Capability: Advanced AR coating allows for reliable operation at up to 0.5W (customizable for higher power).
  • Compact and Robust Design: Space-saving form factor suitable for integration into various optical assemblies.
  • Customizable Working Distance: Standard 5mm working distance, with options for other distances to suit specific applications.
  • High Reliability and Stability: Engineered for consistent performance in demanding environments.
  • Versatile Fiber Compatibility: Supports 1060-XP and other single mode fibers; custom pigtails available.
  • Flexible Packaging: Multiple package dimensions available; custom sizes upon request.
  • Connector Options: Available with or without connectors; various connector types supported.
  • Ideal for Integration: Perfect for use in isolators, circulators, switches, WDMs, and signal processing modules.
  • Custom Solutions Available: Tailored designs for unique wavelength, power, or packaging requirements.

Applications

  • Optical Isolators: Essential for preventing back reflections and feedback in laser systems, ensuring stable operation and protecting sensitive components.
  • Optical Circulators: Used in advanced fiber optic communication systems for routing light signals in a specific direction, enhancing network efficiency.
  • Optical Switches: Integral in switching optical signals between different fibers or channels in telecommunication and data center networks.
  • Wavelength Division Multiplexing (WDM) Systems: Enables the combination or separation of multiple wavelengths in a single fiber, increasing bandwidth and data transmission rates.
  • Fiber Optic Signal Processing: Facilitates precise manipulation and conditioning of optical signals in laboratory and industrial environments.
  • High Power Fiber Laser Delivery: Suitable for coupling and collimating high-power laser beams in industrial laser processing, medical, and scientific applications.
  • Fiber Optic Sensing: Used in distributed and point fiber optic sensors for applications such as structural health monitoring, temperature, and strain sensing.
  • Optical Measurement and Testing: Provides accurate beam collimation for use in optical test benches, interferometry, and metrology setups.
  • Quantum Communication: Ensures low-loss and stable beam propagation in quantum key distribution and quantum optics experiments.
  • Research and Development: Widely used in R&D labs for prototyping and testing new fiber optic devices and systems.
  • Medical and Biomedical Instruments: Enables precise light delivery and collection in optical coherence tomography (OCT), endoscopy, and other diagnostic tools.
  • Laser Beam Shaping and Delivery: Used for shaping, expanding, or focusing laser beams in various scientific and industrial applications.
  • Telecommunications: Key component in long-haul and metro fiber optic networks for efficient signal transmission and routing.
  • Custom Fiber Optic Assemblies: Can be integrated into custom solutions requiring specific wavelengths, fiber types, or power handling capabilities.

Frequently Asked Questions

What is a 1064nm Single Mode Fiber Collimator and what are its main applications?
A 1064nm Single Mode Fiber Collimator is an optical device designed to collimate light exiting a single mode fiber at a wavelength of 1064nm. It is commonly used as a basic element in in-line fiber optic components such as optical isolators, circulators, switches, WDMs (Wavelength Division Multiplexers), and for signal processing in fiber optic communication systems.
What are the key features of the DK Photonics SM Fiber Collimator Series?
The DK Photonics SM Fiber Collimator Series offers low insertion loss, low polarization dependent loss (PDL), a compact design, wide operating wavelength range, high reliability, and stability. It also features high-quality AR coating for high power handling and is suitable for integration into various fiber optic components.
Can the DK Photonics 1064nm Fiber Collimator be customized for specific requirements?
Yes, DK Photonics welcomes custom orders for their fiber collimators. Customers can specify custom fiber pigtails, different operating wavelengths, power handling capabilities, lens sizes, and other specific requirements. Detailed descriptions should be provided when requesting a custom solution.
What should I consider when ordering a fiber collimator with or without connectors?
When ordering a fiber collimator with connectors, note that the insertion loss (IL) will be 0.3dB higher and the return loss (RL) will be 5dB lower compared to units without connectors. Additionally, the maximum power transmitted through the connector should be less than 2W. For bare fiber pigtails, connectors are not recommended.
How do I specify the correct part number when ordering a DK Photonics fiber collimator?
To ensure accurate order fulfillment, provide the correct part number (P/N) according to DK Photonics' ordering information and include a detailed description of your requirements. For example, COLL-S-64-5-L-C-25-10-00-2.78X9 specifies a 1064nm SM Single Fiber Collimator with 5mm working distance, 0.5W handling power, C lens, 1060-XP fiber, bare fiber, 1.0m fiber length, no connector, and a 2.78x9mm package.
What is the typical working distance and power handling capability of the 1064nm SM Fiber Collimator?
The working distance and power handling capability can be customized, but a typical configuration features a 5mm working distance and can handle up to 0.5W of optical power. For higher power or different working distances, custom options are available upon request.
