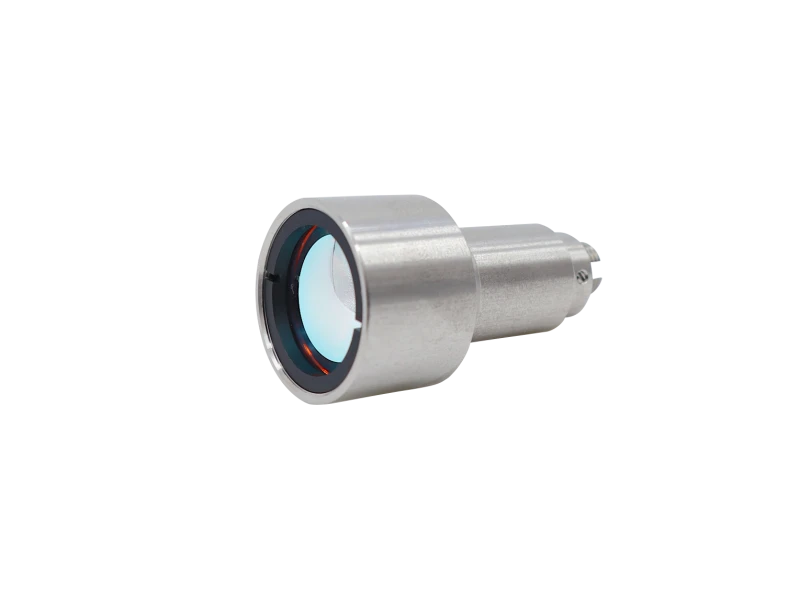

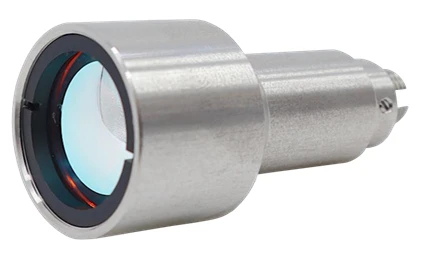

Large Beam Collimators for SM Fibers FC/PC Connector 405nm-1650nm
By using an air gap bonded lens, it can provide better beam quality than aspherical lenses and achromatic lenses in terms of collimation performance. The design of a low aberration lens group can achieve a beam closer to a Gaussian beam, with smaller divergence angles and smaller wavefront errors.
Large Beam Collimators for SM Fibers FC/PC Connector 405nm-1650nm
Specifications
| Wavelength: | 405 - 1654 nm |
|---|---|
| Bandwidth: | ±30 nm |
| Beam Waist: | 5.0 - 8.6 mm |
| Divergence Angle: | 0.10 - 0.30 mrad |
| EFL: | 33.2 - 37.2 mm |
| NA（Lens）: | 0.24 - 0.27 |
| Package Dia.: | φ24 mm |
| Fiber Type: | 405HP, 460HP, 630HP, 780HP, Hi1060, Smf-28e |
| Connectors: | FC/PC, FC/APC, SMA905 |
| Transmittance: | ＞92% |
| Manufacturer Part Number (MPN): | YSD-XXX-XX-XXXX-FC/PC |
| FindLight SKU: | FL-23544 |
Download Data Sheet
Features
- Three Connector Options: FC/PC, FC/APC, MA905
- Compatible with Narrow and Wide Key Connectors
- Compact structure
- Convenient for installation
- Custom options including wavelengths
- It is recommended to select YSenser's standard patch cords to improve the repeatability and consistency of the parameters
Applications
- Free-Space Optical Systems
- Laser Delivery Systems
- Spectroscopy
- LIDAR and Remote Sensing
- Optical Metrology
- Biomedical and Imaging Systems
- Optical Testing and Characterization
- Machine Vision and Illumination
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9002.90.9500 |
| Estimated US Tariff: | 25% |
Frequently Asked Questions
What types of connectors are available for the YSD series?
The YSD series is available with two types of connectors: FC/APC and FC/PC.
What is the wavelength range for the YSD series products?
The YSD series covers wavelengths from 405nm to 1654nm, with specific models for each wavelength.
What is the typical transmittance for the YSD series products?
The typical transmittance for the YSD series products is ≥92%.
What is the divergence angle range for the YSD series?
The divergence angle for the YSD series ranges from 0.10mrad to 0.30mrad, depending on the model.
What is the beam size range for the YSD series products?
The beam size for the YSD series products ranges from 5.0 mm to 8.6 mm, with a tolerance of ±10%.
What is the input fiber type used in the YSD series?
The input fiber types used in the YSD series include Nufern 405HP, 460HP, 630HP, 780HP, Hi1060, and Smf-28e.
What are the physical dimensions of the YSD series products?

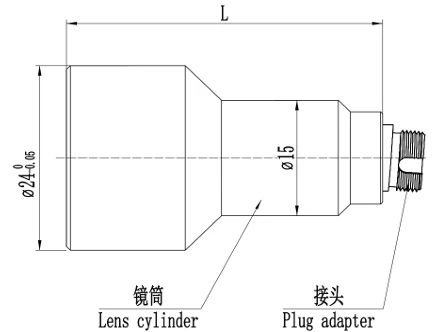

The physical dimensions of the YSD series products are typically Φ24*L39mm to Φ24*L42mm, depending on the model.
Are customs duties, tariffs, value added tax (VAT) included in the price?
No, the listed price does not include any customs duties, tariffs, or the VAT.
