Description
When the connector and the fiber remain stationary, the internal lens has five alignment degrees of freedom: linear alignment in the X and Y directions, pitch and yaw alignment angles, and adjustment of the Z-axis using both pitch and yaw. The travel range in the X and Y directions is ±0.7mm, the travel range in the Z direction is greater than 2 mm, and the pitch and yaw adjustment range is ±4°. It has good structural stability and high coupling efficiency. If the wavelength of the light source is changed, the collimator needs to be re-adjusted to achieve higher coupling efficiency.

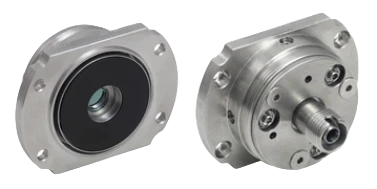

Collimators with Achromatic Lenses for Fiber Port Couplers
Specifications
| Center Wavelength: | 1350 nm |
|---|---|
| Bandwidth: | 600 nm |
| Numerical Aperture: | 0.3 |
| Effective Focal Length (EFL): | 7.5 mm |
| Wavelength (model Dependent): | 350-1650nm |
| EFL (model Dependent): | 7.5mm, 10mm |
| Fiber MFD (model Dependent): | 3.5um, 5.0um, 10.4um |
| Waist Beam (model Dependent): | 1.23mm, 1.62mm, 1.42mm, 1.64mm, 2.16mm, 1.99mm |
| Divergence Angle (model Dependent): | 0.47mra, 0.67mrad, 1.39mrad, 0.35mrad, 0.50mrad, 0.99mrad |
| NA(model Dependent): | 0.2, 0.23, 0.3 |
| AR Coating (model Dependent): | R<0.5% @ 350-700nm; R<0.5% @ 600-1050nm; R<0.5% @ 1050-1650nm |
| Transmittance: | >95% |
Download Data Sheet
Features
- Connecting fiber collimated output or coupling free space collimated light into fiber
- Five Degrees of Freedom Plus Rotational Adjustment
- Optional combination of an aspherical lens and an achromatic lens
- Three AR-Coated Lens Options: 400-700nm, 650-1050nm, 1050-1650nm
- When used in combination with YSenser's standard jumpers, it can improve coupling efficiency and ensure good repeatability
Applications
- Fiber-to-Free-Space Coupling
- Free-Space-to-Fiber Coupling
- Interferometry and Optical Metrology
- Quantum Optics & Quantum Communication
- Fiber Alignment and Beam Shaping
- Laser Beam Delivery Systems
- Spectroscopy and Sensing Systems
- Optical Imaging Systems
- Research and Development Prototyping
Frequently Asked Questions
What types of connectors are available for the lenses?
The lenses are available with FC/APC and FC/PC connectors.
What is the typical beam size for the YSWX-VIS-F7.5-FC/APC lens?
The typical beam size for the YSWX-VIS-F7.5-FC/APC lens is 1.23 mm ±10%.
What is the maximum power rating for the achromatic lenses?
The maximum power rating for the achromatic lenses is 2W.
What wavelength range does the AR coating cover for the YSWX-NIR-F7.5-FC/APC lens?
The AR coating for the YSWX-NIR-F7.5-FC/APC lens covers the wavelength range of 600 - 1050 nm.
What is the far-field divergence angle for the YSWF-VIS-F4.6-FC/APC aspheric lens?
The far-field divergence angle for the YSWF-VIS-F4.6-FC/APC aspheric lens is 0.76 mrad.
What is the transmittance of the lenses?
The transmittance of the lenses is ≥95%.
What are the package dimensions for the lenses?
The package dimensions for the lenses are L38mm x W28.5mm.
