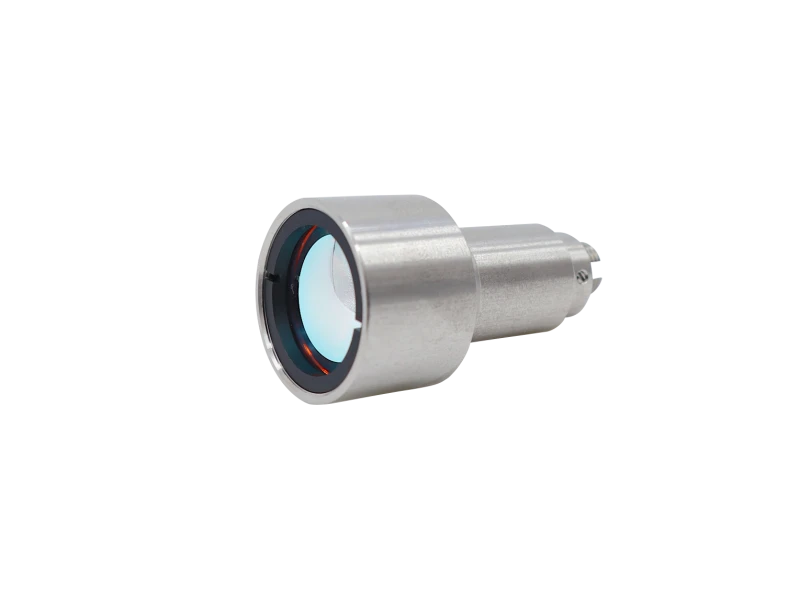

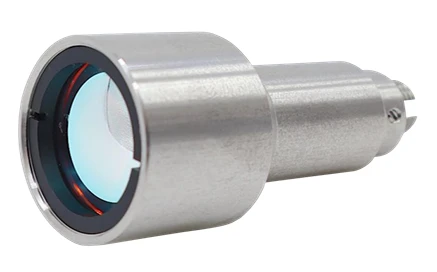

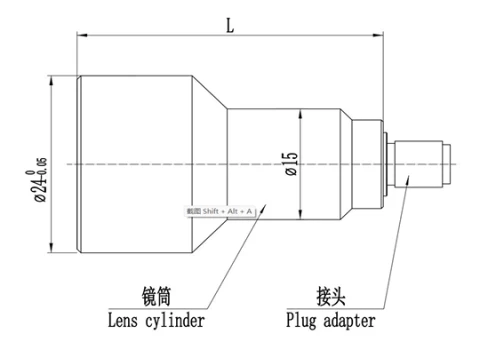

Large Beam Collimators for MM Fibers FC/PC Connector 450nm-1550nm
By using an air gap bonded lens, this collimator can provide better beam quality than aspherical lenses and achromatic lenses in terms of collimation performance. The design of a low aberration lens group can achieve a beam closer to a Gaussian beam, with smaller divergence angles and smaller wavefront errors.
Large Beam Collimators for MM Fibers FC/PC Connector 450nm-1550nm
Specifications
| Wavelength: | 450 - 1550 nm |
|---|---|
| Bandwidth: | ±30nm |
| Beam Waist Diameter: | 14.6 - 19.4 mm |
| Divergence Angle: | 2.2 - 12.8 mrad |
| EFL: | 33.5 - 37.1 mm |
| NA（Lens）: | 0.25, 0.26, 0.27 |
| Package Dia.: | φ24mm |
| Fiber Type: | 62.5/125; 200/220; 400/440; 105/125; 200/220; 400/440 |
| Connectors: | FC/PC SMA 905 |
| Transmittance: | ＞92% |
| Manufacturer Part Number (MPN): | YSD-XXX-XX-XXXX-FC/PC |
| FindLight SKU: | FL-23545 |
Download Data Sheet
Features
- Three Connector Options: FC/PC, FC/APC, SMA905
- Compatible with Narrow and Wide Key Connectors
- Compact structure
- Convenient for installation
- Custom options including wavelengths
- It is recommended to select Ysenser's standard patch cords to improve the repeatability and consistency of the parameters
Applications
- Free-Space Optical Systems
- Laser Delivery Systems
- Spectroscopy
- LIDAR and Remote Sensing
- Optical Metrology
- Biomedical and Imaging Systems
- Optical Testing and Characterization
- Machine Vision and Illumination
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9002.90.9500 |
| Estimated US Tariff: | 25% |
Frequently Asked Questions
What is the wavelength range of the YSD-450 series products?
The YSD-450 series products have a wavelength of 450nm with a bandwidth of ±30nm.
What is the beam size specification for the YSD-520-M2-B18K-FC/PC model?
The beam size for the YSD-520-M2-B18K-FC/PC model is 18.2mm±10%.
What is the transmittance percentage for the YSD-780-105-B16K-FC/PC model?
The transmittance for the YSD-780-105-B16K-FC/PC model is ≥92%.
Which input fiber type is used in the YSD-633-M2-B18K-FC/PC model?
The YSD-633-M2-B18K-FC/PC model uses an input fiber type of 62.5/125.
What is the divergence angle for the YSD-1064-105-B16K-FC/PC model?
The divergence angle for the YSD-1064-105-B16K-FC/PC model is 3.4mrad.
What is the lens numerical aperture (NA) for the YSD-850-400S-B16K-FC/PC model?
The lens numerical aperture (NA) for the YSD-850-400S-B16K-FC/PC model is 0.22.
What is the package size for the YSD-488-105-B15K-FC/PC model?
The package size for the YSD-488-105-B15K-FC/PC model is 34.1mm Φ24*L39mm.
Are customs duties, tariffs, value added tax (VAT) included in the price?
No, the listed price does not include any customs duties, tariffs, or the VAT.
