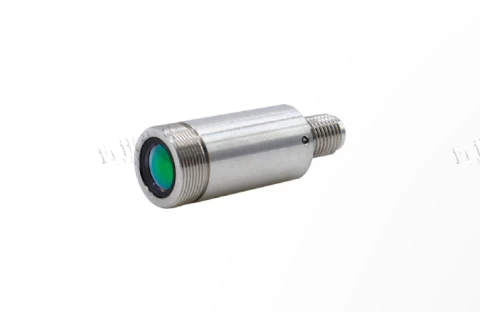

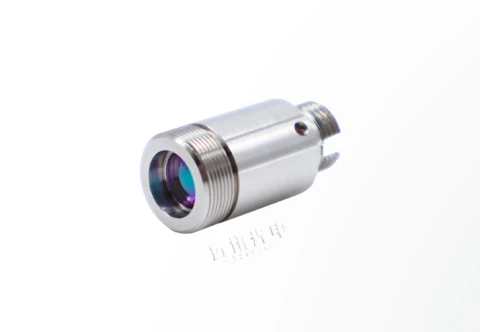

Aspheric Lens Collimators SMA Connector 405nm-1650nm

The aspherical lens collimator's unique aberration-correction design empowers it to execute highly efficient and accurate collimation of light beams. As a result, the energy of the output light beam assumes a Gaussian distribution. Both surfaces of the lens are coated with anti-reflection films, that significantly decrease surface reflection losses and substantially improve the light transmittance. Nevertheless, the aspherical lens possesses certain inherent characteristics. Specifically, it exhibits a chromatic aberration phenomenon, with a strong correlation existing between its effective focal length (EFL) and the wavelength.

During the manufacturing, the relative positioning of the lens and the optical fiber has undergone extremely precise adjustments. This ensures that the deflection angle of the emitted light beam is maintained within an exceedingly narrow range of 0.5 degree. Consequently, it is better equipped to adapt to diverse application scenarios and system requirements.

Aspheric Lens Collimators SMA Connector 405nm-1650nm

Specifications

Center Wavelength: 1310 nm
Bandwidth: 10 nm
Numerical Aperture: 0.49
Effective Focal Length (EFL): 8.12 mm
Connectors: SMA
Max. Power (model Dependent): 1W/mm^2
Transmittance: ≥95%
Wavelength Options (model Dependent): 405, 450, 520, 633, 780, 850, 980, 1064, 1310, 1550, 1650
Bandwidth (nm): ±5
EFL (model Dependent): 4.45 - 24.42 mm
NA (model Dependent): 0.15 - 0.51
Manufacturer Part Number (MPN): YSF-XXX-XXX-SMA
FindLight SKU: FL-23759

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Three Connector Options: FC/PC, FC/APC, SMA905
  • Compatible with Narrow and Wide Key Connectors
  • Compact structure, Convenient for installation
  • Custom Options including wavelengths

Applications

  • Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
  • Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
  • Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
  • Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
  • Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
  • Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices

Export & Trade Information

ECCN: EAR99
HTS Code: 9002.90.9500
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What connectors are used in these products?
The connectors used are FC/PC connectors.
What are the available wavelengths for these products?
The available wavelengths are 405nm, 450nm, 520nm, 633nm, 780nm, 850nm, 980nm, 1064nm, 1330nm, 1550nm, 1650nm each with a bandwidth of ±5nm.
What is the maximum power rating for these products?
The maximum power rating is 1W/mm2.
What is the transmittance of these products?
The transmittance is ≥95%.
What is the divergence angle range for these products?
The divergence angle ranges from 0.01° to 0.06° with an additional tolerance of +0.01°.
What is the bandwidth for the wavelengths provided?
The bandwidth for the wavelengths is ±5nm.
What is the typical numerical aperture (NA) for these products?
The numerical aperture (NA) varies by model, ranging from 0.15 to 0.51.
Are customs duties, tariffs, value added tax (VAT) included in the price?
No, the listed price does not include any customs duties, tariffs, or the VAT.

Got more questions? Use the inquiry form to ask the supplier directly.
