Description

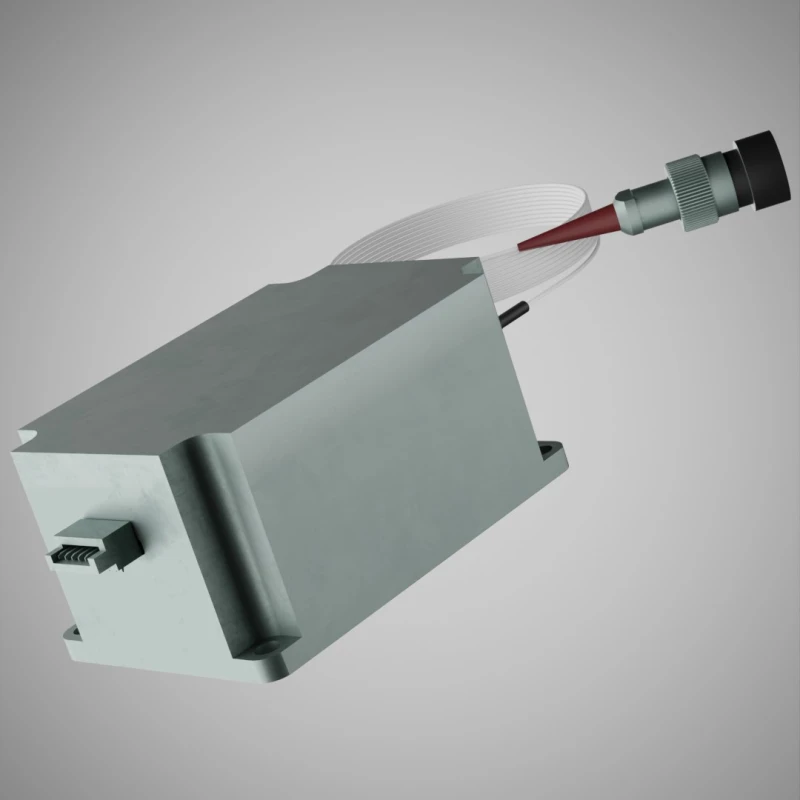

The Photodigm IsoBragg™ is an advanced fiber-coupled laser diode package designed for high-performance applications requiring optical isolation. It integrates Photodigm’s proprietary Distributed Bragg Reflector (DBR) laser diode technology, ensuring a single spatial mode beam with exceptional stability and precision. The monolithic single-frequency GaAs design enables superior coherence and narrow linewidth operation.
The IsoBragg™ package offers enhanced reliability with a robust Aluminum 6061 enclosure and features a polarization-maintaining (PM) fiber for stable beam transmission. The FC/APC male connector ensures low-back-reflection coupling, making it ideal for applications requiring high optical isolation (≥ 30 dB).
Designed for precision optical setups, the IsoBragg™ provides power outputs ranging from 10 mW to 110 mW and supports TEC-controlled thermal stability for consistent performance across varying conditions. With its compact 58.0 x 40.0 x 29.0 mm footprint, the IsoBragg™ is a powerful solution for spectroscopy, quantum optics, and advanced metrology applications.
780.241 Single-Frequency DBR Fiber-Coupled Optically Packaged IsoBragg
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Single Mode |
| Wavelength: | 780 nm |
| Output Power: | 100 mW |
| Fiber Core Diamater: | Not Specified |
| Fiber Cladding Diameter: | Not Specified |
| Optical Isolation: | ≥ 30 dB |
| Operating Current, Max (CW & Pulsed): | 250 mA |
| Nominal Laser Linewidth @ LIV Current: | 500 kHz |
| Temperature Tuning Rate: | 0.06 nm/ºC |
| Fiber Bend Radius: | 25 mm |
| Fiber Numerical Aperture: | 0.12 |
| Dimensions: | 58.0 x 40.0 x 29.0 mm |
Download Data Sheet
Features
- Fiber-Coupled Precision: Provides a single-mode spatial output via a 1-meter PM fiber with an FC/APC connector
- High Optical Isolation: Ensures minimal feedback and signal degradation with ≥ 30 dB isolation
- Narrow Linewidth: Maintains a single-frequency operation with excellent coherence for precision applications
- Wide Power Range: Supports 10 mW to 110 mW output, adaptable for different applications
- Compact & Robust Design: Constructed with Aluminum 6061 housing for durability and easy integration
- Efficient Thermal Management: TEC-enabled operation with ±1.9 A current and ±2.8 V voltage control
Applications
- Precision Spectroscopy: Ideal for high-resolution atomic and molecular studies
- Quantum Optics & Computing: Provides stable single-frequency output for quantum experiments
- Optical Metrology: Enables precise wavelength stabilization in metrology systems
- Laser Interferometry: Supports high-sensitivity interferometric measurements
- Biomedical Applications: Used in fluorescence imaging and optical diagnostics
Frequently Asked Questions
What is the advantage of the IsoBragg™ package over standard laser diode modules?
What type of fiber is used in the IsoBragg™ package?
What is the maximum optical power output of the IsoBragg™ laser?
How is the IsoBragg™ laser thermally stabilized?
What precautions should be taken when handling the IsoBragg™ module?
