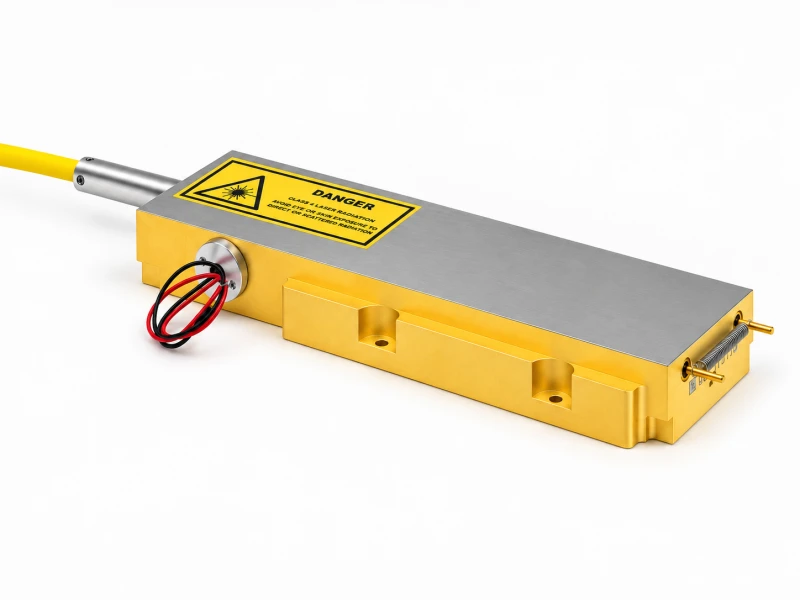

Fiber-Coupled Diode Laser With Square Beam Output

Name: Fiber-Coupled Diode Laser With Square Beam Output
Brand: PhotonTech Berlin GmbH
Availability: InStock

Description

Introducing the cutting-edge Fiber-coupled Diode Laser with a Square Beam Profile, expertly crafted for high-performance applications. This product is designed to deliver exceptional precision and reliability, making it an ideal choice for various OEM applications. The laser is available at multiple wavelengths, including 450nm, 808nm, 915nm, 980nm, and 1064nm, providing versatility for diverse industrial and scientific uses. With a maximum optical power of 300W CW, this diode laser ensures robust performance, meeting the demanding needs of modern technology.

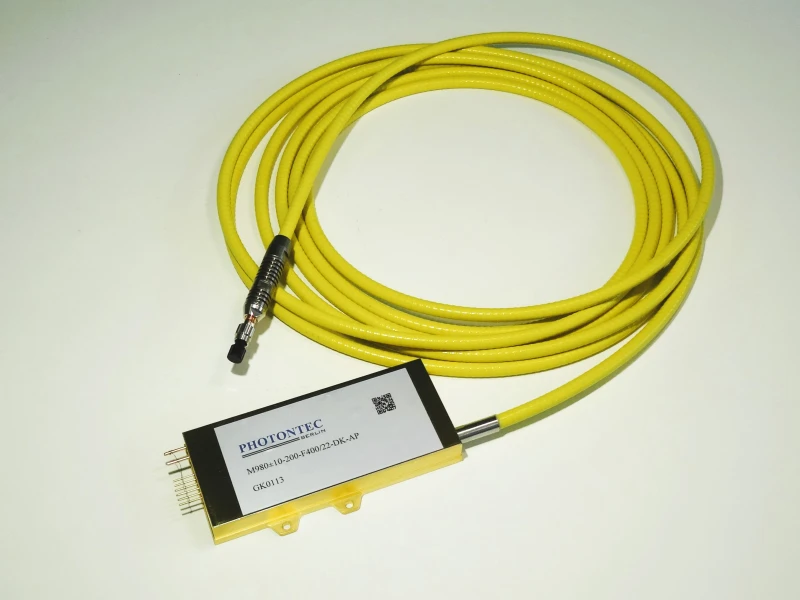

The fiber pigtail of this diode laser is engineered for excellence, featuring a core of 400x400µm, with options for customization to meet specific requirements. The standard fiber length is 5 meters, with a maximum extension of 10 meters, providing flexibility in setup and integration. The FSMA905 connector and free-standing fiber tip enhance the ease of use and reliability of the system.

Durability and ease of maintenance are key attributes of this product, with a metallic tubing encased in yellow PU and an outer diameter of 6.4mm. The long-term bending radius is 300 times the cladding diameter, ensuring longevity and consistent performance even in challenging environments. This diode laser package includes essential accessories such as a thermistor, monitor photodiode, and pilot beam, ensuring comprehensive functionality and ease of integration into your systems.

PhotonTec Berlin GmbH, located in Germany, stands behind this innovative product. For inquiries, contact us at Tel.: +49-30-83409380 or email info@photontec-berlin.com. Experience the superior performance and reliability of our Fiber-coupled Diode Laser, designed to meet the highest standards in the industry.

Specifications

Laser Type:	Continuous Wave (CW), Modulated
Fiber Type:	Multi-Mode
Output Power:	300000 mW
Fiber Core Diamater:	400 um
Fiber Cladding Diameter:	660 um
Wavelength:	450nm, 808nm, 915nm, 980nm, 1064nm
Optical Power:	max. 300W CW
Fiber Core (standard):	400x400µm
Fiber Cladding:	660µm round
Fiber Length:	5m, max. 10m
Fiber Connector:	FSMA905, free standing fiber tip
Tubing:	metalic with yellow PU, OD=6.4mm
Long Term Bending Radius:	300x cladding diameter

Download Data Sheet

Features

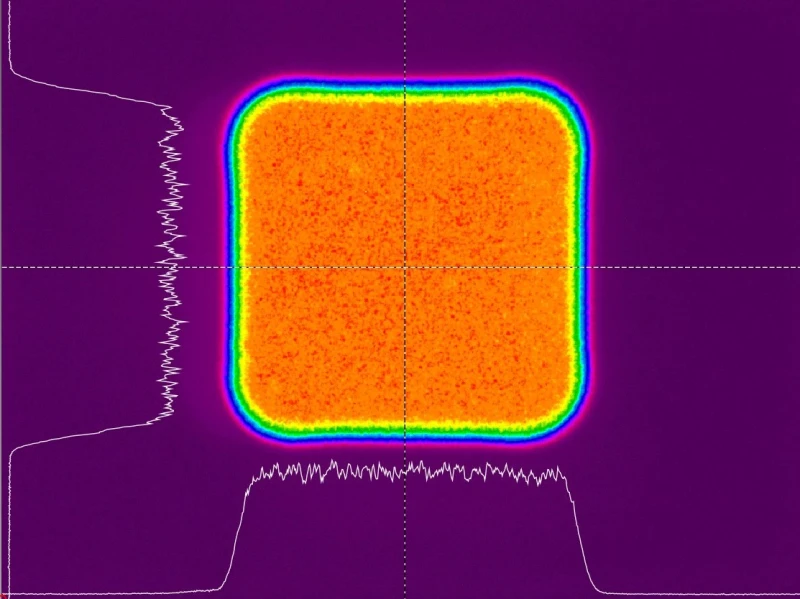

Square Beam Output: Ensures uniform intensity distribution for precise applications.

Blue to Near IR Wavelengths: Available in 450nm, 808nm, 915nm, 980nm, and 1064nm to suit various needs.

High Optical Power: Capable of delivering up to 300W continuous wave (CW) for demanding tasks.

Optical Fiber Output: Features a fiber pigtail with a standard core of 400x400µm and a cladding of 660µm, with lengths up to 10m.

OEM Module and Turn-Key System: Designed for easy integration into existing systems or as a standalone solution.

Comprehensive Accessories: Includes a thermistor, monitor photodiode, and pilot beam for enhanced functionality.

Durable Construction: Equipped with a metallic tubing with yellow PU for added protection and flexibility.

Flexible Connectivity: Available with FSMA905 connector and free-standing fiber tip for versatile applications.

Applications

Industrial Manufacturing: Ideal for precision welding application due to its high power and square beam profile.

Material Processing: Effective in processes such as annealing, surface treatment, and heat conduction.

Medical Applications: Suitable for medical laser treatments and surgical procedures, offering reliable performance across various wavelengths.

Scientific Research: Utilized in laboratories for experiments requiring consistent and high-power laser output.

Defense and Security: Applicable in systems requiring high-power laser beams for targeting and surveillance.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Germany

Sold by:

PhotonTech Berlin GmbH

On FindLight:

since 2018

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What wavelengths are available for the fiber-coupled diode laser?

The available wavelengths are 450nm, 808nm, 915nm, 980nm, and 1064nm.

What is the maximum optical power output of the diode laser?

The maximum optical power output is 300W continuous wave (CW).

What accessories are included with the diode laser?

The accessories included are a thermistor, a monitor photodiode, and a pilot beam.

What are the specifications of the fiber pigtail?

The fiber pigtail has a core size of 400x400µm (standard), cladding diameter of 660µm, standard length of 5m (max 10m), FSMA905 connector, metallic tubing with yellow PU, and an outer diameter of 6.4mm.

What is the bending radius of the fiber pigtail?

The long-term bending radius is 300 times the cladding diameter.

What are the features of the diode laser?

The features include square beam output, wavelengths from blue to near IR, power up to 300W CW, optical fiber output, and availability as an OEM module and turn-key system.

How can I contact PhotonTec Berlin GmbH for more information?

You can contact them via phone at +49-30-83409380 or email at info@photontec-berlin.com. Their address is Warthestrasse 21, D-14513 Teltow, Germany. More information is available on their website www.photontec-berlin.com.
