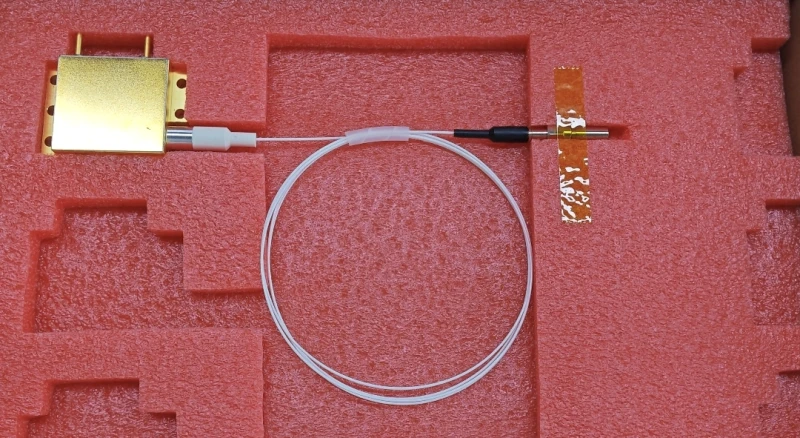

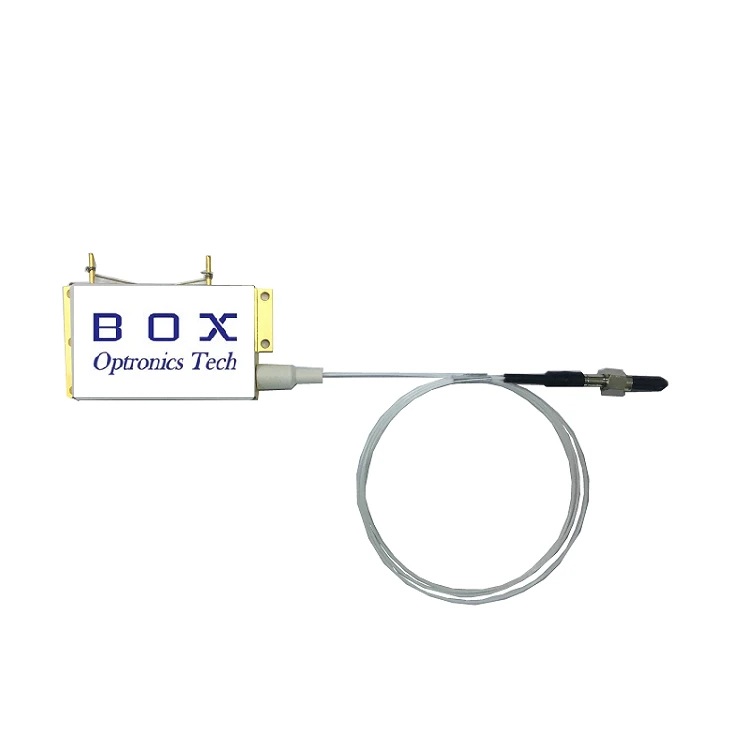

The BLD-F793-40-22N0 is a high-performance 793nm fiber coupled diode laser designed for applications requiring high power and reliability. This laser features a single emitting laser with an output power of up to 40W, coupled to a 105/125µm 0.22NA fiber. It is ideal for medical care, printing, material processing, and as a pump source.

The laser operates within a temperature range of 15 to 55°C, ensuring stable performance in various environments. It is RoHS compliant, adhering to environmental and safety standards. The electro-optical characteristics of the BLD-F793-40-22N0 are optimized for superior performance.

The laser has a wavelength range of 790 to 796nm, with a spectral width of 4.0 to 6.0nm at FWHM. It features a threshold current of 1.5 to 2.0A and an operating current of up to 12.0A at full power. The power conversion efficiency is up to 40%, and the wavelength temperature coefficient is 0.3nm/°C. The fiber specifications include a length of 0.9 to 1.5 meters, terminated with SMA905 or FC/PC connectors, ensuring flexibility in integration.

he mechanical design of the BLD-F793-40-22N0 ensures easy integration and reliable operation. The package dimensions are 66.50mm x 61.50mm x 55.15mm, making it compact and suitable for various systems. Safety features include warnings against direct eye exposure to the laser beam and recommendations for proper heatsink and ESD protection.

This laser diode is a robust solution for applications where high power and reliability are critical.
