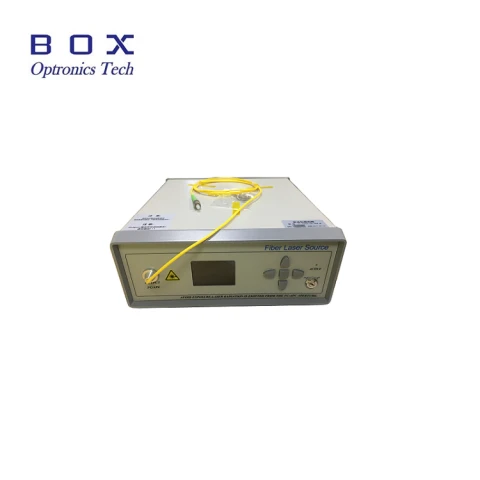

Thumbnail of Multi-module High Power Fiber Pump Laser Source photo 1

Description

The MM High Power Fiber Pump Laser Source from BOX Optronics is a high-performance, high-power laser designed for demanding applications in medical research, material handling, and fiber laser pumping.

This laser light source is based on a high-performance semiconductor laser chip, ensuring stable and safe operation. It features a professionally designed constant current drive and TEC control, which maintain power fluctuation below 3% and spectral stability within ±3nm.

The laser offers 105/125um fiber coupling output, making it suitable for a wide range of applications requiring high power and stability.The electro-optical characteristics of the MM High Power Fiber Pump Laser Source are optimized for superior performance. It operates at wavelengths of 793nm, 808nm, 915nm, and 976nm, with a spectral width of 3nm to 6nm. The output power ranges from 5W to 25W, ensuring high power stability over both short-term (≤0.05dB in 15 minutes) and long-term (≤0.1dB in 8 hours) periods.

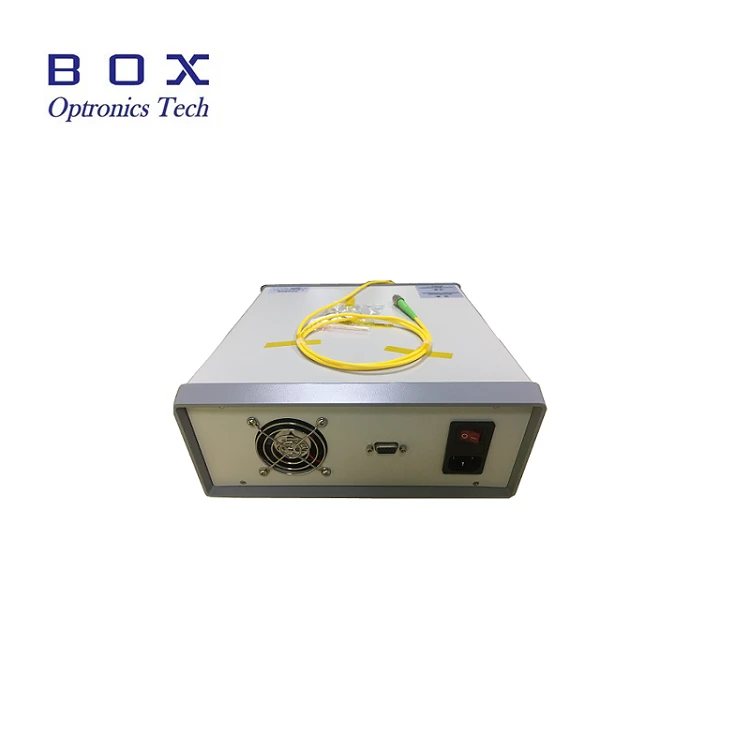

The laser is available in both module and benchtop packages, with dimensions of 150mm x 125mm x 30mm for the module and 260mm x 320mm x 120mm for the benchtop version. It uses a 105/125μm, 0.22NA fiber and can be equipped with either bare fiber or a collimator.The mechanical design of the MM High Power Fiber Pump Laser Source ensures easy integration and reliable operation. It features a color LCD status display and a communication interface (DB9 Female, RS232) for easy monitoring and control.

The power supply is AC 110~240V for the benchtop version and DC 5V/4A for the module version, with a power dissipation of up to 60W. The operating temperature range is -20°C to +50°C, and the storage temperature range is -20°C to +70°C. This laser source is ideal for applications requiring high power and stability, such as medical research and fiber laser pumping.

Multi-module High Power Fiber Pump Laser Source

Visit the Shenzhen Box Optronics Technology Co.,Ltd. Store

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 808 nm
Output Power: 10 mW
Fiber Core Diamater: 105 um
Fiber Cladding Diameter: 125 um
Operating Wavelength Options: 793±3, 808±3, 915±10, 976±3 nm
Spectral Width: 3, 6 nm
Output Power: 5, 10, 25 W
Power Instability (Short-term 15mins): ≤0.05(1%) dB
Power Instability (Long-term 8hours): ≤0.1(3%) dB
Power Dissipation: ≤ 60 W
Communication Interface: DB9 Female(RS232)
Fiber Type: 105/125μm, 0.22NA
Connector: Bare fiber or collimator

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High output power
  • Power and spectral stability
  • Module or Benchtop package
  • Color LCD status display

Applications

  • Medical research
  • Material handling
  • Fiber laser pumping

Frequently Asked Questions

What is the MM High Power Fiber Pump Laser Source used for?
The MM High Power Fiber Pump Laser Source is suitable for medical research, fiber laser pumping, and other production tests.
What are the available output power options for the laser source?
The available output power options are 5W, 10W, and 25W.
What are the operating wavelength options for this laser source?
The operating wavelength options are 793±3 nm, 808±3 nm, 915±10 nm, and 976±3 nm.
What is the power instability for short-term and long-term use?
The power instability is ≤0.05 dB (1%) for short-term use (15 minutes) and ≤0.1 dB (3%) for long-term use (8 hours).
What are the dimensions of the benchtop and module packages?
The benchtop package dimensions are 260(W)×320(D)×120(H) mm, and the module package dimensions are 150(W)×125(D)×30(H) mm.
What type of fiber and connector does the laser source use?
The laser source uses 105/125μm fiber with a 0.22 NA and can have either a bare fiber or collimator connector.
What are the power supply requirements for the benchtop and module versions?
The benchtop version requires an AC 110~240V power supply, while the module version requires a DC 5V/4A power supply.

Got more questions? Use the inquiry form to ask the supplier directly.
