The 10G DFB Pigtail Laser Diode Module from BOX Optronics Tech is a high-performance laser module designed for demanding optical communication applications. This module features a 1310nm or 1550nm DFB laser diode, offering low noise, low distortion, and a low threshold current. It is equipped with an InGaAs monitor PIN photodiode for precise power monitoring and adheres to the stringent Telcordia GR-468 reliability test standards.

The module is ideal for use in optical transmitters, bidirectional modules, and optical transceivers, providing stable and efficient performance in various network configurations. The electro-optical characteristics of the 10G DFB Pigtail Laser Diode Module are optimized for superior performance. The module delivers an output optical power of 2.0 to 2.5 mW with a threshold current of up to 50 mA. It features a spectral width of 0.3 to 0.5 nm and a rise/fall time of 200 ps for the 1310nm wavelength and 120 ps for the 1550nm wavelength.

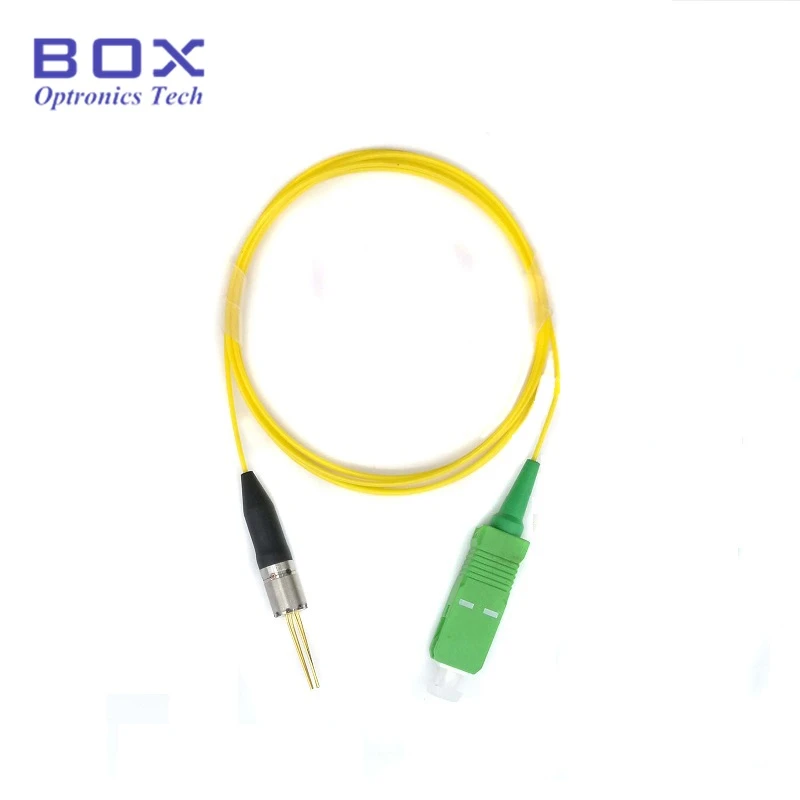

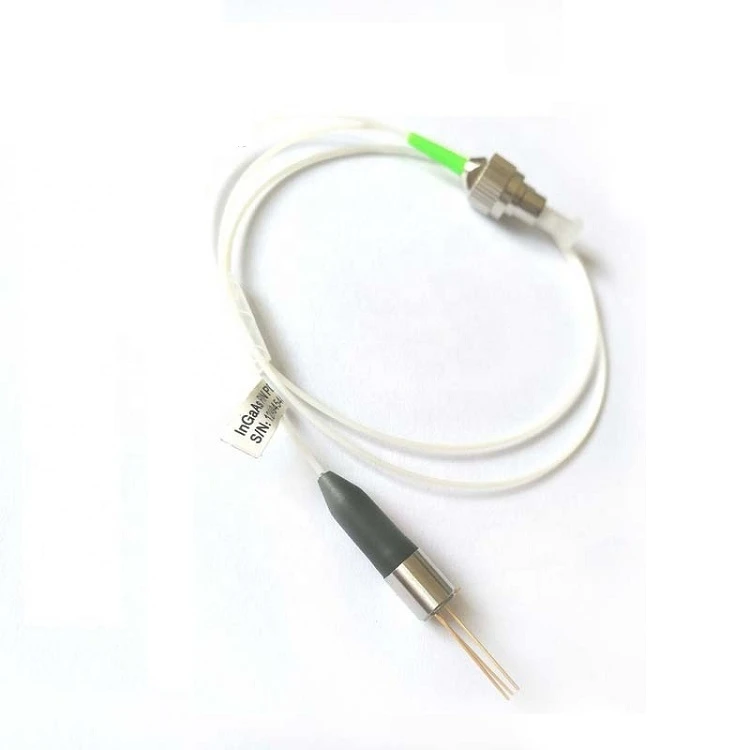

The module also boasts a high side mode suppression ratio of 30 dB and a relative intensity noise of -130 dB/Hz, ensuring high signal purity and reliability. The optical isolation is 30 dB, and the tracking error is maintained at -1.5 dB, providing stable operation over a wide range of conditions. The mechanical design of the 10G DFB Pigtail Laser Diode Module ensures easy integration and reliable operation. The module is available with a SC/APC or FC/APC connector, making it compatible with standard optical systems.

The package dimensions are compact, allowing for easy integration into various optical communication systems. The module operates within a temperature range of -20 to +70°C and can be stored between -40 to +85°C, ensuring robust performance in different environments. This module is a reliable choice for applications requiring high-speed, high-quality optical signal transmission.
