Description

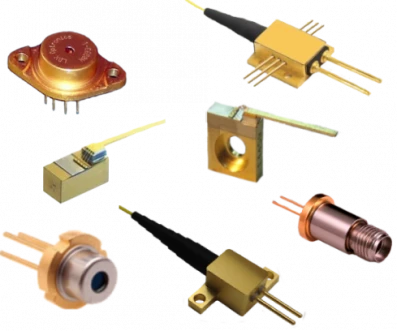

This 1064nm diode laser produces 5000mW from a 150um emitter in the free space packages or 4000mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.
LDX-3515-1064: 1064nm Multimode Laser Diode
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 1064 nm |
| Output Power: | 5000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | 300 um |
Download Data Sheet
Features
- Wavelength: 1064nm
- Output Power: 5000mW free space, 4000mW from the fiber
- High output power and dynamic range
- High efficiency
- Custom packaging available
- Custom wavelengths and laser designs available
Applications
- Diode laser solutions
- Scientific and industrial applications
- OEM applications
Frequently Asked Questions
What is the wavelength of the LDX-3515-1064 laser diode?
The wavelength of the LDX-3515-1064 laser diode is 1064nm.
What is the output power of the LDX-3515-1064 laser diode?
The LDX-3515-1064 laser diode produces 5000mW from a 150um emitter in the free space packages or 4000mW from the fiber in the fiber coupled packages.
What applications is the LDX-3515-1064 laser diode suitable for?
The LDX-3515-1064 laser diode is suitable for diode laser solutions, scientific and industrial applications, and OEM applications.
Are custom packaging and laser designs available for the LDX-3515-1064 laser diode?
Yes, custom packaging and laser designs are available for the LDX-3515-1064 laser diode.
What is the operating temperature range for the LDX-3515-1064 laser diode?
The operating temperature range for the LDX-3515-1064 laser diode is not specified in the product description provided.
