Fiber-Coupled Diode Lasers (Fiber Type: Multi-Mode)

Filter (0)

JOLD-100-CPXF-2P W 880: Fiber-Coupled Laser Diode

JOLD-100-CPXF-2P W 880: Fiber-Coupled Laser Diode

Inquire Price
Sold by: RPMC Lasers, Inc. Ships from: United States
Specifications
Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 880 nm
Output Power: 100000 mW
Fiber Core Diamater: 400 um
JOLD-140-CPXF-2P W 915: Fiber Coupled Laser Diode

JOLD-140-CPXF-2P W 915: Fiber Coupled Laser Diode

Inquire Price
Sold by: RPMC Lasers, Inc. Ships from: United States
Specifications
Fiber Cladding Diameter: 440 um
Wavelengths: 915, 938, 976 nm
Fiber Core Diameter: 400 μm
Numerical Aperture: 0.22
Long Lifetime: > 20,000 h
JOLD-210-CAXF-6A 976: Fiber-Coupled Diode Laser

JOLD-210-CAXF-6A 976: Fiber-Coupled Diode Laser

Inquire Price
Sold by: RPMC Lasers, Inc. Ships from: United States
Specifications
Center Wavelength Variation At 25 °C: 3 nm
Typical Spectral Bandwidth (FWHM): 5 nm
Maximum Spectral Bandwidth (FWHM): 6 nm
Typical Operation Current: 95 A
Maximum Operation Current: 105 A
JOLD-250-CAXF-6P2 915: Fiber Coupled Laser Diode

JOLD-250-CAXF-6P2 915: Fiber Coupled Laser Diode

Inquire Price
Sold by: RPMC Lasers, Inc. Ships from: United States
Specifications
Center Wavelength At 25 °C: 807 nm, 915 nm, 938 nm, 976 nm
Center Wavelength Variation At 25 °C: 5 nm, 5 nm, 5 nm, 3 nm
Typical Spectral Bandwidth (FWHM): 5 nm, 6 nm, 6 nm, 6 nm
Maximum Spectral Bandwidth (FWHM): 6 nm, 7 nm, 7 nm, 7 nm
Fiber Core Diameter: 600 µm
JOLD-100-CPXF-2P A 940: Fiber Coupled Laser Diode

JOLD-100-CPXF-2P A 940: Fiber Coupled Laser Diode

Inquire Price
Sold by: RPMC Lasers, Inc. Ships from: United States
Specifications
Center Wavelengths: 915, 938, 976 nm
Typical Operation Current: 95 A
Maximum Operation Current: 105 A
Maximum Operating Voltage: 4.5 V
Expected Lifetime: > 20,000 h
JOLD-120-QPXF-2P W 808: Fiber Coupled Diode Laser

JOLD-120-QPXF-2P W 808: Fiber Coupled Diode Laser

Inquire Price
Sold by: RPMC Lasers, Inc. Ships from: United States
Specifications
Maximum Pulse Length / Duty Cycle: ≤ 0.3 ms / ≤ 20 %
Center Wavelength Variation At 25 °C: 5 nm
Typical Spectral Bandwidth (FWHM): 5 nm
Maximum Spectral Bandwidth (FWHM): 6 nm
Typical Operation Current: 105 A

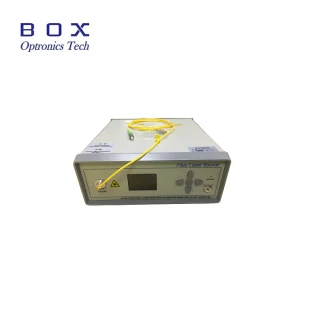

808nm Multimode Fiber High-Power Pump Source

808nm Multimode Fiber High-Power Pump Source

Inquire Price
Sold by: Shenzhen Box Optronics Technology Co.,Ltd. Ships from: China
Specifications
Output Power: 5/8/10/20W
Power Instability: ≤±0.02(15min.); ≤±0.05(8hrs)
Fiber Type: 105/125 um
Fiber Connector: FC/PC or SMA
Communication Interface: DB9 Female(RS232)
1064nm Multimode Fiber High-Power Pump Source

1064nm Multimode Fiber High-Power Pump Source

Inquire Price
Sold by: Shenzhen Box Optronics Technology Co.,Ltd. Ships from: China
Specifications
Operating Wavelength: 1064 nm
Output Power: 8/20/45 W
Power Instability: ≤±0.02(15min.); ≤±0.05(8hrs)
Fiber Type: 105/125
Communication Interface: DB9 Female(RS232)

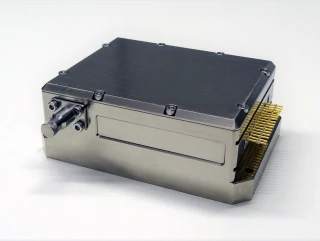

Green 520nm 15W fiber-coupled diode laser

Green 520nm 15W fiber-coupled diode laser

Inquire Price
Sold by: PhotonTec Berlin GmbH Ships from: Germany
Specifications
Wavelength Tolerance: +/-10nm
Spectral Width (FWHM): 10.0 nm
Connector: FSMA905
Threshold Current: 0.2 A
Operating Current: 1.4-1.5 A
Fiber-Coupled Diode Laser With Square Beam Output

Fiber-Coupled Diode Laser With Square Beam Output

Inquire Price
Sold by: PhotonTec Berlin GmbH Ships from: Germany
Specifications
Optical Power: max. 500W CW
Fiber Core (standard): 400x400µm, 600x600µm
Fiber Length: 5m, max. 10m
Tubing: metallic with yellow PU, OD=6.4mm
Long Term Bending Radius: 300x cladding diameter

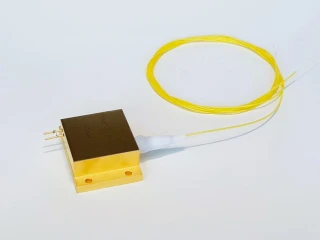

878.6nm 40W wavelength-stabilized fiber-coupled diode laser

878.6nm 40W wavelength-stabilized fiber-coupled diode laser

Inquire Price
Sold by: PhotonTec Berlin GmbH Ships from: Germany
Specifications
Spectral Width (FWHM): 0.5 nm
Wavelength Temp. Coefficient: 0.02 nm/°C
Wavelength Current Coefficient: 0.05 nm/A
Fiber Connector: SMA905
Threshold Current: 1.4 A
LDX-3518-1550: 1550nm 4000mW Fiber Coupled Multimode Laser Diode

LDX-3518-1550: 1550nm 4000mW Fiber Coupled Multimode Laser Diode

Inquire Price
Sold by: RPMC Lasers, Inc. Ships from: United States
Specifications
Operating Current (mA) Typ.: 5900 mA
Beam Divergenc E (FWHM): 30
Spectral Width: 9.0 nm
Operating Temperature: 25 °C
LDX-3515-940: 940nm 4000mW Fiber Coupled Multimode Laser Diode

LDX-3515-940: 940nm 4000mW Fiber Coupled Multimode Laser Diode

Inquire Price
Sold by: RPMC Lasers, Inc. Ships from: United States
Specifications
Operating Temperature: 25 °C
Threshold Current: 400 mA
Operating Current: 5000 mA
Operating Voltage: 1.7 V
Spectral Width FWHM: 3.0 nm
LDX-3510-1370: 1370nm 4000mW Fiber Coupled Multimode Laser Diode

LDX-3510-1370: 1370nm 4000mW Fiber Coupled Multimode Laser Diode

Inquire Price
Sold by: RPMC Lasers, Inc. Ships from: United States
Specifications
Package Types: Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Threshold Current: 450 mA
Operating Current: 10800 mA
Operating Voltage: 1.6 V
Beam Divergence (FWHM): 8.0 θ// (°)
LDX-3615-915: 915nm 5000mW Fiber Coupled Multimode Laser Diode

LDX-3615-915: 915nm 5000mW Fiber Coupled Multimode Laser Diode

Inquire Price
Sold by: RPMC Lasers, Inc. Ships from: United States
Specifications
Operating Temperature: 25 ℃
Operating Temperature: 300 mA
Operating Current: 3800 mA
Operating Voltage: 1.8 V
Beam Divergence (FWHM): 7 θ// (°)
Fiber-coupled diode lasers with multimode fibers are ideal for applications requiring high power and efficient light delivery, such as materials processing and medical procedures. These lasers offer a range of output powers from 1.5W to 1000W and wavelengths from 808nm to 1064nm, providing flexibility for various industrial and scientific needs. Suppliers like GKER Photonics and Sheaumann Laser, Inc. offer diverse options in this category. On FindLight, you can compare technical specifications, request pricing, and connect with manufacturers directly, all without needing to register.
