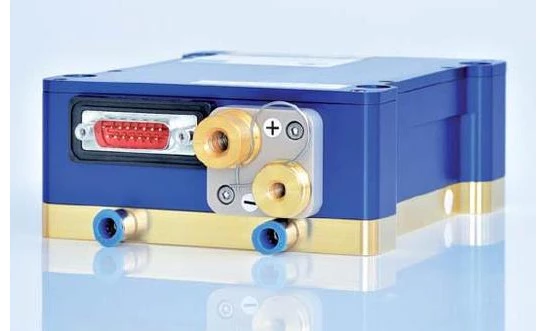

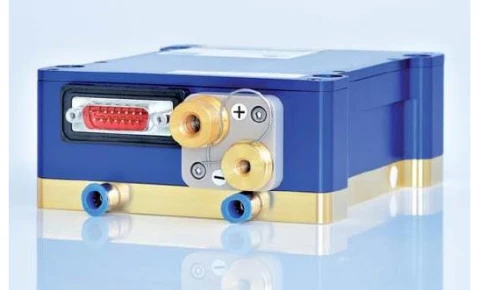

Thumbnail of JOLD-100-CPXF-2P W 808: Fiber Coupled Laser Diode photo 1

Description

The JOLD-100-CPXF-2P-W is a fiber-coupled, multimode laser diode array, with options for 808nm, 880nm, 915nm, 940nm, and 976nm wavelength, and CW output power up to 100 W, delivered via 400µm or 600µm core diameter fiber. This diode array is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock). The JOLD-100-CPXF-2P-W is conductively cooled and is designed for medical applications.

JOLD-100-CPXF-2P W 808: Fiber Coupled Laser Diode

Visit the RPMC Lasers, Inc. Store

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 808 nm
Output Power: 100000 mW
Fiber Core Diamater: 400 um
Fiber Cladding Diameter: Not Specified

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 808, 880, 915, 940 and 976 nm
  • High optical output power up to 100 W CW
  • Fiber core diameter: 400 or 600 μm ( NA 0.22 )
  • Integrated pilot laser and power monitor
  • Internal fiber detector ( interlock )
  • Conductive cooling
  • Designed for medical applications

Applications

  • Pumping of solid-state lasers and fiber lasers
  • Material processing
  • Medical applications

Frequently Asked Questions

What are the features of the JOLD-100-CPXF-2P-W laser diode array?
The features of the JOLD-100-CPXF-2P-W laser diode array include high optical output power up to 100 W CW, fiber core diameter of 400 or 600 μm, integrated pilot laser and power monitor, internal fiber detector (interlock), conductive cooling, and designed for medical applications.
What is the JOLD-100-CPXF-2P-W laser diode array used for?
The JOLD-100-CPXF-2P-W laser diode array is used for pumping of solid-state lasers and fiber lasers, material processing, and medical applications.
What is the wavelength range of the JOLD-100-CPXF-2P-W laser diode array?
The JOLD-100-CPXF-2P-W laser diode array has options for 808nm, 880nm, 915nm, 940nm, and 976nm wavelength.
What is the fiber core diameter of the JOLD-100-CPXF-2P-W laser diode array?
The JOLD-100-CPXF-2P-W laser diode array has options for fiber core diameter of 400μm or 600μm.
What is the maximum optical output power of the JOLD-100-CPXF-2P-W laser diode array?
The maximum optical output power of the JOLD-100-CPXF-2P-W laser diode array is 100 W.

Got more questions? Use the inquiry form to ask the supplier directly.
