Description

The JOLD-45-CPXF-1L is a fiber-coupled, multimode laser diode array, with options for 808nm, 880nm, 915nm, 940nm, and 976nm wavelength, and CW output power up to 45W, delivered via 400µm core diameter fiber. This diode array is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock). The JOLD-45-CPXF-1L is conductively cooled and is designed for medical applications.

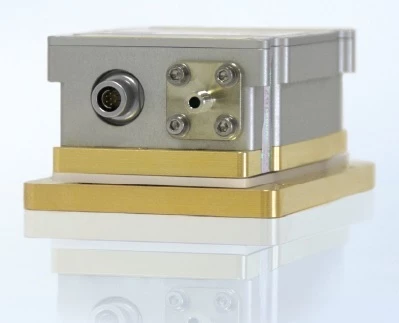

JOLD-45-CPXF-1L 808: Fiber Coupled Laser Diode

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 808 nm
Output Power: 45000 mW
Fiber Core Diamater: 400 um
Maximum Optical Output Power: 45 W
Center Wavelength At 25 °C: 808-976 nm
Center Wavelength Variation At 25 °C: 3-5 nm
Typical Spectral Bandwidth (FWHM): 3 nm
Maximum Spectral Bandwidth (FWHM): 4 nm
Typical Operation Current: 59-64 A
Maximum Operation Current: 65-70 A
Typical Threshold Current: 6-10 A
Maximum Threshold Current: 9-13 A
Typical Slope: 0.80-0.95 W/A
Minimum Slope: 0.70-0.80 W/A
Maximum Operating Voltage: 2 V
Fiber Core Diameter: 400 µm
Numerical Aperture: 0.22
Fiber Connector: F-SMA 905
Expected Lifetime: > 20,000 h
Diode Laser Operating Temperature: 15-30 °C
Maximum Cooling Power: 346 W
Maximum TEC Voltage, Current: 49.2 V, 11.3 A

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 808, 880, 915, 940, 976 nm
  • High optical output power up to 45 W cw
  • Fiber core diameter: 400 μm (NA 0.22)
  • Integrated pilot laser and power monitor
  • Internal fiber detector (interlock)
  • Conductive cooling
  • Designed for medical applications

Applications

  • Pumping of solid-state lasers and fiber lasers
  • Material processing
  • Medical applications

Frequently Asked Questions

What is the JOLD-45-CPXF-1L laser diode array used for?
The JOLD-45-CPXF-1L laser diode array is designed for medical applications, pumping of solid-state lasers and fiber lasers, and material processing.
Does the JOLD-45-CPXF-1L laser diode array come with any additional features?
Yes, the JOLD-45-CPXF-1L laser diode array is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock).
What is the expected lifetime of the JOLD-45-CPXF-1L laser diode array?
The expected lifetime of the JOLD-45-CPXF-1L laser diode array is over 20,000 hours (constant current), partly under qualification.
What is the maximum optical output power of the JOLD-45-CPXF-1L laser diode array?
The maximum optical output power of the JOLD-45-CPXF-1L laser diode array is 45W cw.
What is the fiber core diameter of the JOLD-45-CPXF-1L laser diode array?
The fiber core diameter of the JOLD-45-CPXF-1L laser diode array is 400μm (NA 0.22).

Got more questions? Use the inquiry form to ask the supplier directly.
