Description

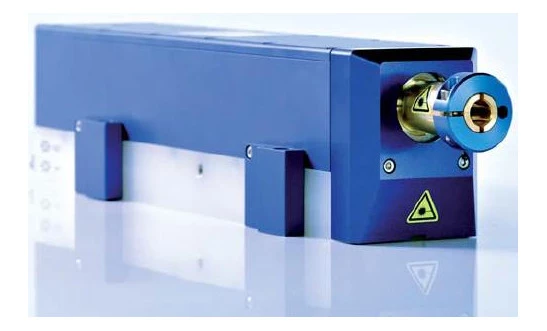

he JOLD-210-CAXF-6A from Jenoptik is a high-performance fiber-coupled diode laser stack designed for continuous wave (CW) operation with active deionized water cooling. Delivering an impressive optical output power of 210 W, it features a 600 μm core diameter fiber with a 0.22 NA for efficient coupling and beam delivery. Integrated pilot laser and power monitor systems ensure precise targeting and stable operation.

This laser stack operates at multiple center wavelengths—807 nm, 915 nm, 938 nm, and 976 nm—making it versatile for various industrial and research applications. With an expected lifetime exceeding 10,000 hours under constant current conditions, it guarantees high reliability and reduced downtime.

Optimized for critical tasks such as solid-state and fiber laser pumping and material processing, the JOLD-210-CAXF-6A is an ideal solution for demanding environments. Its design includes advanced features like a humidity reduction system using synthetic air and a durable high-power fiber connection, ensuring long-term performance even under challenging conditions.

Jenoptik's commitment to quality ensures that the JOLD-210-CAXF-6A meets rigorous industry standards, offering reliable, powerful, and efficient laser technology for your application needs.

JOLD-210-CAXF-6A 940: Fiber Coupled Laser Diode

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 940 nm
Output Power: 210000 mW
Fiber Core Diamater: 600 um
Fiber Cladding Diameter: Not Specified
Center Wavelength Variation (at 25 °C): ±3 to ±5 nm
Typical Spectral Bandwidth (FWHM): 4` nm
Maximum Spectral Bandwidth (FWHM): 5` nm
Typical Operation Current: 59-64 A
Typical Threshold Current: 6-10 A
Typical Slope Efficiency: 3.7–4.3 W/A
Maximum Operating Voltage: 13 V
Fiber Connection: High-power plug (15 mm ferrule diameter)
Cooling Method: Deionized water cooling
Cooling Water Temperature: 15–35 °C
Expected Lifetime: >10,000 hours (constant current)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Optical Output Power: Delivers up to 210 W continuous wave (CW) output
  • Versatile Wavelengths: Available at 807 nm, 915 nm, 938 nm, and 976 nm
  • Large Core Fiber: 600 μm fiber core with 0.22 numerical aperture (NA) for efficient beam coupling
  • Integrated Pilot Laser and Power Monitor: Provides easy targeting and precise output monitoring
  • High Reliability: Expected operational lifetime exceeding 10,000 hours under constant current
  • Efficient Cooling System: Actively cooled with deionized water for stable long-term operation

Applications

  • Pumping of Solid-State and Fiber Lasers: Ideal for use as a high-power laser pump source
    Material Processing: Supports applications requiring high optical power and stability, such as cutting, welding, and surface treatment

Frequently Asked Questions

What are the features of the JOLD-210-CAXF-6A laser diode array?
The JOLD-210-CAXF-6A laser diode array features a high optical output power, fiber core diameter of 600 μm, integrated pilot laser and power monitor, internal fiber detector, conductive cooling, and is designed for medical applications.
What is the JOLD-210-CAXF-6A laser diode array used for?
The JOLD-210-CAXF-6A laser diode array is designed for medical applications, pumping of solid-state lasers and fiber lasers, and material processing.
What are the available wavelength options for the JOLD-210-CAXF-6A laser diode array?
The JOLD-210-CAXF-6A laser diode array has options for 808nm, 915nm, 940nm, and 976nm wavelength.
What is the lifetime of the JOLD-210-CAXF-6A laser diode array?
The JOLD-210-CAXF-6A laser diode array has a lifetime of over 10,000 hours and high reliability.
What is the maximum optical output power of the JOLD-210-CAXF-6A laser diode array?
The JOLD-210-CAXF-6A laser diode array has a maximum optical output power of 210W cw.
