Description

The JOLD-100-CPXF-2P-A is a fiber-coupled, multimode laser diode array, with options for 915nm, 940nm, and 980nm wavelength, and CW output power up to 100 W, delivered via 400µm core diameter fiber. This diode array is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock). The JOLD-100-CPXF-2P-A is conductively cooled and is designed for medical applications.

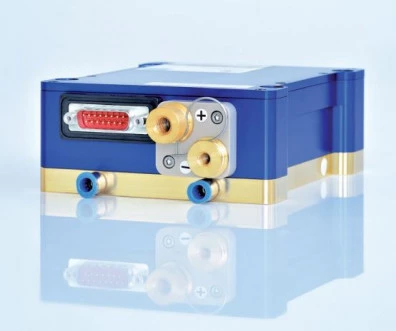

JOLD-100-CPXF-2P A 976: Fiber Coupled Laser Diode

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 976 nm
Output Power: 100000 mW
Fiber Core Diamater: 400 um
Maximum Optical Output Power: 100 W
Center Wavelengths: 915, 938, 976 nm
Fiber Core Diameter: 400 μm
Numerical Aperture: 0.22
Typical Operation Current: 95 A
Maximum Operation Current: 105 A
Maximum Operating Voltage: 4.5 V
Expected Lifetime (Constant Current): > 20,000 h
Flow Rate: > 3 l/min
Water Temperature: 8 ... 20 °C
Diode Laser Operating Temperature: 15 ... 35 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 915, 940 and 980 nm
  • High optical output power up to 100 W CW
  • Fiber core diameter of 400 μm ( NA 0.22 )
  • Integrated pilot laser and power monitor
  • Internal fiber detector ( interlock )
  • Conductive cooling
  • Designed for medical applications

Applications

  • Pumping of solid-state lasers and fiber lasers
  • Material processing
  • Medical applications

Frequently Asked Questions

What are the features of the JOLD-100-CPXF-2P-A laser diode array?
The JOLD-100-CPXF-2P-A laser diode array features a fiber core diameter of 400 μm (NA 0.22), an integrated pilot laser, power monitor, and an internal fiber detector (interlock), conductive cooling, and is designed for medical applications.
What is the JOLD-100-CPXF-2P-A laser diode array used for?
The JOLD-100-CPXF-2P-A laser diode array is designed for medical applications, pumping of solid-state lasers and fiber lasers, and material processing.
What is the expected lifetime of the JOLD-100-CPXF-2P-A laser diode array?
The JOLD-100-CPXF-2P-A laser diode array has an expected lifetime of over 10,000 hours at constant current.
What is the wavelength range of the JOLD-100-CPXF-2P-A laser diode array?
The JOLD-100-CPXF-2P-A laser diode array has options for 915nm, 940nm, and 980nm wavelength.
What is the maximum optical output power of the JOLD-100-CPXF-2P-A laser diode array?
The JOLD-100-CPXF-2P-A laser diode array has a maximum optical output power of 100 W CW.
