  5. JOLD-30-CPXF-1L 808: 808nm Fiber Coupled Laser Diode

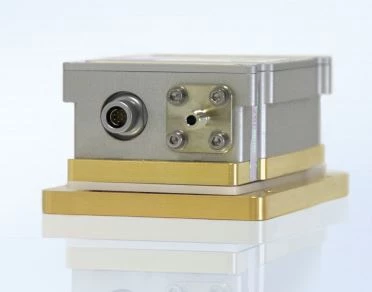

JOLD-30-CPXF-1L 808: 808nm Fiber Coupled Laser Diode

RPMC Lasers, Inc.
REQUEST QUOTE
JOLD-30-CPXF-1L 808: 808nm Fiber Coupled Laser Diode

OVERVIEW

JOLD-30-CPXF-1L – Passively Cooled 808nm Fiber Coupled Laser Diode with integrated TEC. The Jenoptik fiber-coupled diode laser modules can be used to produce an optical output power of 4 W to 400 W in cw mode and 120 W in qcw mode. They are also available in free space format. Depending on their power, these modules are cooled using water, TEC or air. Because of their reliability and efficiency, our modules are successfully used as beam sources in areas such as solid-state laser pumps, material processing and medicine. They have a robust and compact design and have proven their worth in daily use. We offer standard wavelengths of 808 nm, 940 nm, and 980 nm. The fiber core diameter of our diode lasers is 200µm, 400µm or 600µm. On request, we will be happy to adapt the parameters to your individual requirements. You can also choose between pilot lasers, monitor diodes and integrated Peltier elements.

SPECIFICATION

  • Laser Type: Continuous Wave (CW)
  • Fiber Type: Multi-Mode
  • Wavelength: 808 nm
  • Output Power: 30 mW
  • Fiber Core Diamater: 400 um
  • Fiber Cladding Diameter: 0 um
  • Typical Operation Current: 40 A
Download Data Sheet

Applications

Pumping of solid-state lasers and fiber lasers
Material processing
Medical applications

KEY FEATURES

High optical output power of 30 W cw
Wavelengths: 806.5 nm, 808nm
Fiber core diameter: 400 ¼m (NA 0.22)
Integrated power monitor
Lifetime > 10,000 h, high reliability
