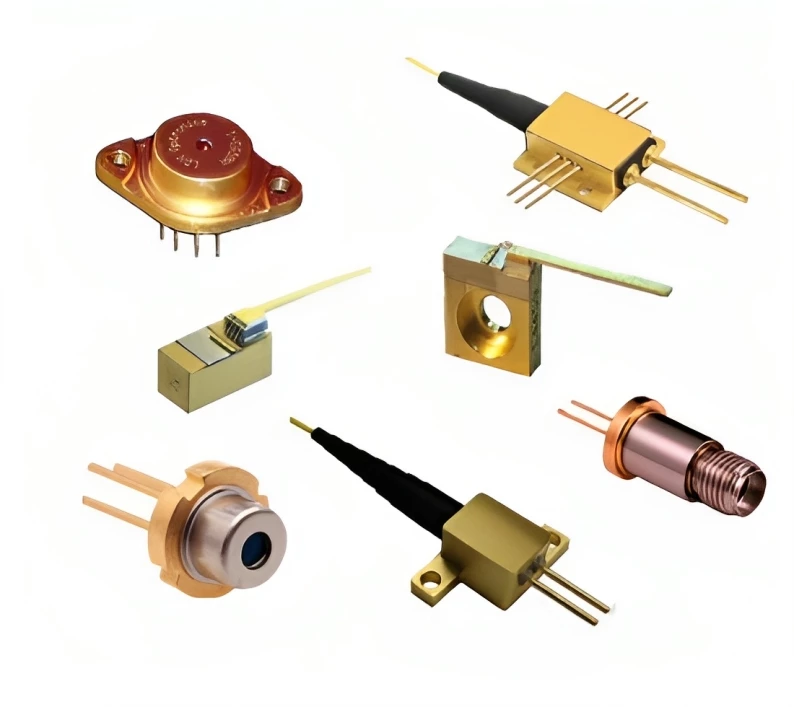

Thumbnail of LDX-3515-940: 940nm 4000mW Fiber Coupled Multimode Laser Diode photo 1

Description

The LDX-XXXX-940 is a high-power, multimode laser diode with a wavelength of 940nm. It offers exceptional output power, high efficiency, and can be customized to meet various requirements.

Whether you need a semiconductor laser diode for research, industrial applications, or beyond, RPMC Lasers Inc. has you covered.

LDX-3515-940: 940nm 4000mW Fiber Coupled Multimode Laser Diode

Visit the RPMC Lasers, Inc. Store

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 940 nm
Output Power: 3500 mW
Fiber Core Diamater: 200 um
Fiber Cladding Diameter: 300 um
Operating Temperature: 25 °C
Threshold Current: 400 mA
Operating Current: 5000 mA
Operating Voltage: 1.7 V
Beam Divergence (FWHM): 7 θ// (°)
Spectral Width FWHM: 3.0 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 940nm
  • Output Power: Up to 16000mW (free space), Up to 12000mW (from the fiber)
  • High output power and dynamic range
  • High efficiency
  • Custom packaging available
  • Custom wavelengths and laser designs are available

Applications

  • Wavelength: 940nm
  • Output Power: Up to 16000mW (free space), Up to 12000mW (from the fiber)
  • High output power and dynamic range
  • High efficiency
  • Custom packaging available
  • Custom wavelengths and laser designs are available

Frequently Asked Questions

What is the output power of the LDX-3515-940 laser diode?
The LDX-3515-940 laser diode has an output power of 5000mW in free space packages and 4000mW from the fiber in fiber coupled packages.
What is the wavelength of the LDX-3515-940 fiber-coupled laser diode?
The LDX-3515-940 laser diode has a wavelength of 940nm.
What applications is the LDX-3515-940 laser diode suitable for?
The LDX-3515-940 laser diode is suitable for diode laser solutions, scientific and industrial applications, and OEM applications.
Is custom packaging available for the LDX-3515-940 laser diode?
Yes, custom packaging is available for the LDX-3515-940 laser diode.
Are custom wavelengths and laser designs available for the LDX-3515-940 laser diode?
Yes, custom wavelengths and laser designs are available for the LDX-3515-940 laser diode.

Got more questions? Use the inquiry form to ask the supplier directly.
