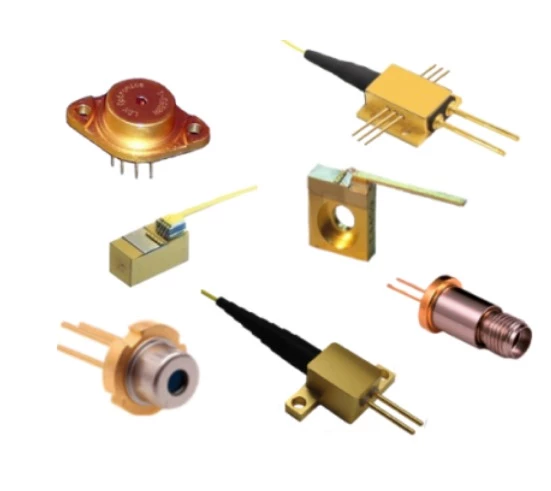

Thumbnail of LDX-3510-1470: 1470nm 4000mW Fiber Coupled Multimode Laser Diode photo 1

Description

The LDX-XXXX-1470 is a high-performance, multimode laser diode designed for various applications. With a wavelength of 1470nm and exceptional output power capabilities, this laser diode provides reliable and efficient laser solutions for a wide range of industries. It offers high efficiency, customizable packaging, and options for different configurations to meet your specific requirements.

LDX-3510-1470: 1470nm 4000mW Fiber Coupled Multimode Laser Diode

Visit the RPMC Lasers, Inc. Store

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 1470 nm
Output Power: 4000 mW
Fiber Core Diamater: 100 um
Fiber Cladding Diameter: 250 um
Package Types: Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL
Operating Temperature: 25 °C
Threshold Current: 530 mA
Operating Current: 10960 mA
Operating Voltage: 1.6 V
Beam Divergence (FWHM): 8.0 θ// (°)
Spectral Width (FWHM): 9.8 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 1470nm
  • Output Power: Up to 5000mW free space
  • Up to 4000mW from the fiber
  • High output power and dynamic range
  • High efficiency
  • Custom packaging available
  • Custom wavelengths and laser designs are available

Applications

  • Industrial and Manufacturing
  • Medical and Healthcare
  • Research and Biophotonics
  • Defense and Aerospace

Frequently Asked Questions

What is the output power of the LDX-3510-1470 laser diode?
The LDX-3510-1470 laser diode produces 5000mW in free space packages and 4000mW from the fiber in fiber coupled packages.
What is the wavelength of the LDX-3510-1470 laser diode?
The LDX-3510-1470 laser diode has a wavelength of 1470nm.
What applications is the LDX-3510-1470 laser diode suitable for?
The LDX-3510-1470 laser diode is suitable for diode laser solutions, scientific and industrial applications, and OEM applications.
Can the LDX-3510-1470 laser diode be customized?
Yes, the LDX-3510-1470 laser diode can be customized with custom packaging and custom wavelengths and laser designs.
What is the operating temperature range of the LDX-3510-1470 laser diode?
The operating temperature range of the LDX-3510-1470 laser diode is not provided in the product description.

Got more questions? Use the inquiry form to ask the supplier directly.
