Description

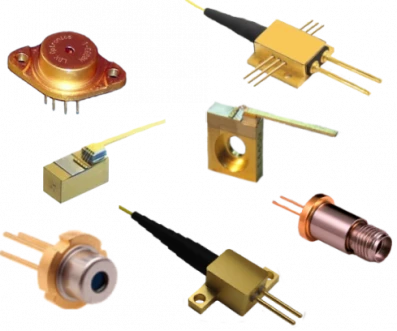

This 792nm diode laser produces 3500mW from a 150um emitter in the free space packages or 2800mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.
LDX-3315-792: 792nm Multimode Laser Diode
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 792 nm |
| Output Power: | 3500 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | Not Specified |
| Operating Current: | 2900 mA |
Download Data Sheet
Features
- Wavelength: 792nm
- Output Power: 3500mW free space, 2800mW from the fiber
- High output power and dynamic range
- High efficiency
- Custom packaging available
- Custom wavelengths and laser designs available.
Frequently Asked Questions
What is the output power of the LDX-3315-792 laser diode?
The LDX-3315-792 laser diode produces 3500mW from a 150um emitter in the free space packages or 2800mW from the fiber in the fiber coupled packages.
Are custom wavelengths and laser designs available for the LDX-3315-792 laser diode?
Yes, custom wavelengths and laser designs are available for the LDX-3315-792 laser diode.
What is the beam divergence of the LDX-3315-792 laser diode?
The LDX-3315-792 laser diode has a beam divergence of FWHM θ// (°) and FWHM θ ⊥ (°).
Is custom packaging available for the LDX-3315-792 laser diode?
Yes, custom packaging is available for the LDX-3315-792 laser diode.
What is the wavelength of the LDX-3315-792 laser diode?
The LDX-3315-792 laser diode has a wavelength of 792nm.
