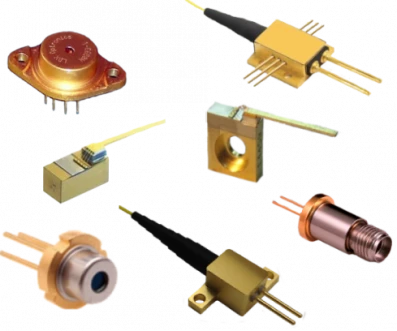

Thumbnail of LDX-3515-1120: 1120nm 4000mW Fiber Coupled Multimode Laser Diode photo 1

Description

The LDX-XXXX-1120 is a high-performance laser diode designed for a wide range of applications. This multimode laser diode emits light at a precise wavelength of 1120nm, making it suitable for various industrial, research, and medical applications.

With its high output power, efficiency, and customizable options, this laser diode offers exceptional performance and versatility.

LDX-3515-1120: 1120nm 4000mW Fiber Coupled Multimode Laser Diode

Visit the RPMC Lasers, Inc. Store

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 1120 nm
Output Power: 4000 mW
Fiber Core Diamater: 200 um
Fiber Cladding Diameter: 300 um
Operating Temperature: 25 °C
Threshold Current: 300 mA
Operating Current: 8500 mA
Operating Voltage: 2.0 V
Beam Divergenc E (FWHM): 7 θ// (°)
Spectral Width FWHM: 5.5 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Output Power (up to 5,000mW in free space, up to 4,000mW from the fiber) and dynamic range
  • High efficiency
  • Custom packaging available
  • Custom wavelengths and laser designs are available

Applications

  • Industrial Processing: Ideal for laser cutting, welding, and engraving applications
  • Biomedical Research: Used in various medical and research procedures, including fluorescence microscopy and DNA sequencing
  • Material Analysis: Enables precise material characterization and analysis in scientific research
  • Telecommunications: Supports optical communication systems for data transmission.
  • Scientific Research: Essential for laboratory experiments and scientific investigations across disciplines
  • Defense and Aerospace: Used in applications such as LIDAR systems and targeting

Frequently Asked Questions

What is the wavelength of the LDX-3515-1120 laser diode?
The wavelength of the LDX-3515-1120 laser diode is 1120nm.
What is the output power of the LDX-3515-1120 laser diode?
The output power of the LDX-3515-1120 laser diode is 5000mW in free space packages and 4000mW from the fiber in the fiber coupled packages.
What are the applications of the LDX-3515-1120 laser diode?
The LDX-3515-1120 laser diode is suitable for diode laser solutions, scientific and industrial applications, and OEM applications.
Is custom packaging available for the LDX-3515-1120 laser diode?
Yes, custom packaging is available for the LDX-3515-1120 laser diode.
Are custom wavelengths and laser designs available for the LDX-3515-1120 laser diode?
Yes, custom wavelengths and laser designs are available for the LDX-3515-1120 laser diode.

Got more questions? Use the inquiry form to ask the supplier directly.
