Description

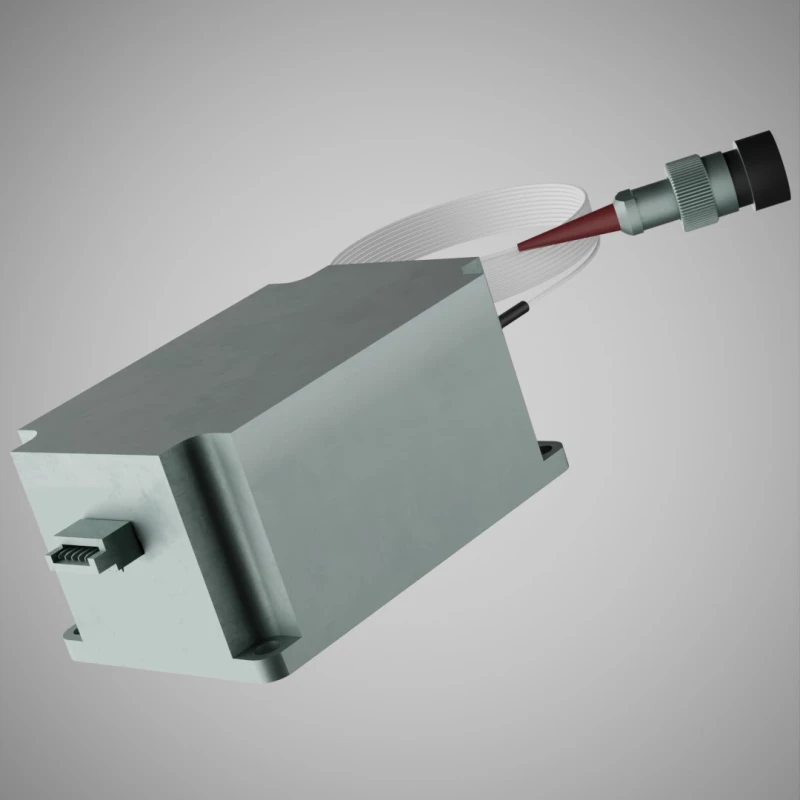

The Photodigm IsoBragg™ is a state-of-the-art fiber-coupled and optically isolated laser diode package, delivering high-power performance in a compact and efficient design. Utilizing Photodigm’s proprietary Distributed Bragg Reflector (DBR) laser diode, this package ensures a single spatial mode beam with exceptional spectral purity and stability.
Engineered for precision, the IsoBragg™ incorporates polarization-maintaining (PM) fiber coupling with an FC/APC male output connector for seamless integration into high-performance optical systems. With a typical optical isolation of ≥ 30 dB, it offers superior protection against back reflections, ensuring long-term operational reliability.
The rugged aluminum 6061 package houses advanced thermal management features, including a thermo-electric cooler (TEC) with bidirectional current and voltage control. A narrow linewidth of 500 kHz ensures superior coherence for demanding applications.
With a wavelength of 776 nm and an output power range of 10–70 mW, the IsoBragg™ is ideal for quantum optics, precision spectroscopy, and other high-precision photonics applications.
776.061 Single-Frequency DBR Fiber-Coupled Optically Packaged IsoBragg
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Single Mode |
| Wavelength: | 0.776 nm |
| Output Power: | 10 mW |
| Fiber Core Diamater: | Not Specified |
| Fiber Cladding Diameter: | Not Specified |
| Storage Temperature: | 0 to +70 °C |
| Nominal Laser Linewidth @ LIV Current: | 500 kHz |
| Temperature Tuning Rate: | 0.06 nm/ºC |
| Dimensions: | 58.0 x 40.0 x 29.0 mm |
| Fiber Numerical Aperture: | 0.12 |
Download Data Sheet
Features
- Single Spatial Mode Beam: Ensures precise and stable output for accurate spectroscopy
- Passivated Facets: Increases reliability and durability in various environments
- Temperature-Compensated: Wavelength guaranteed to hit the Rb two-photon transition (2PT) ± 10°C from room temperature
- High Power Output: Provides a power range from 40 mW to 120 mW, meeting diverse application needs
- Efficient Current Operation: Low threshold current (50 mA) and high slope efficiency (0.9 W/A) for optimal power conversion
- Customizable Options: Available with MHF and VPS lens configurations for enhanced beam control
Applications
- Rubidium Spectroscopy: Ideal for use in rubidium-based atomic spectroscopy, particularly in two-photon transition applications
- Precision Laser Systems: Used in precision instrumentation requiring stable, narrow linewidth output
- Research and Development: Essential for advanced research in atomic physics and related fields
- Optical Sensing: Useful in applications that require precise wavelength control and minimal noise interference
Frequently Asked Questions
What is the main application of the 776.061 nm DBR Laser Diode?
How does the 776.061 nm DBR Laser Diode ensure wavelength accuracy?
What are the available packaging options for this laser diode?
What is the maximum optical power output of the 776.061 nm DBR Laser Diode?
