770.108 Single-Frequency DBR Fiber-Coupled Optically Packaged IsoBragg

Name: 770.108 Single-Frequency DBR Fiber-Coupled Optically Packaged IsoBragg
Brand: Photodigm Inc.
Availability: InStock

Description

The Photodigm IsoBragg™ 770.108 DBRH-IBragg is an advanced fiber-coupled laser diode module that integrates optical isolation (≥30 dB) for superior performance and stability. Designed with Photodigm’s proprietary Distributed Bragg Reflector (DBR) technology, this laser diode delivers single-frequency operation, high spectral purity, and excellent power output ranging from 10 mW to 70 mW.

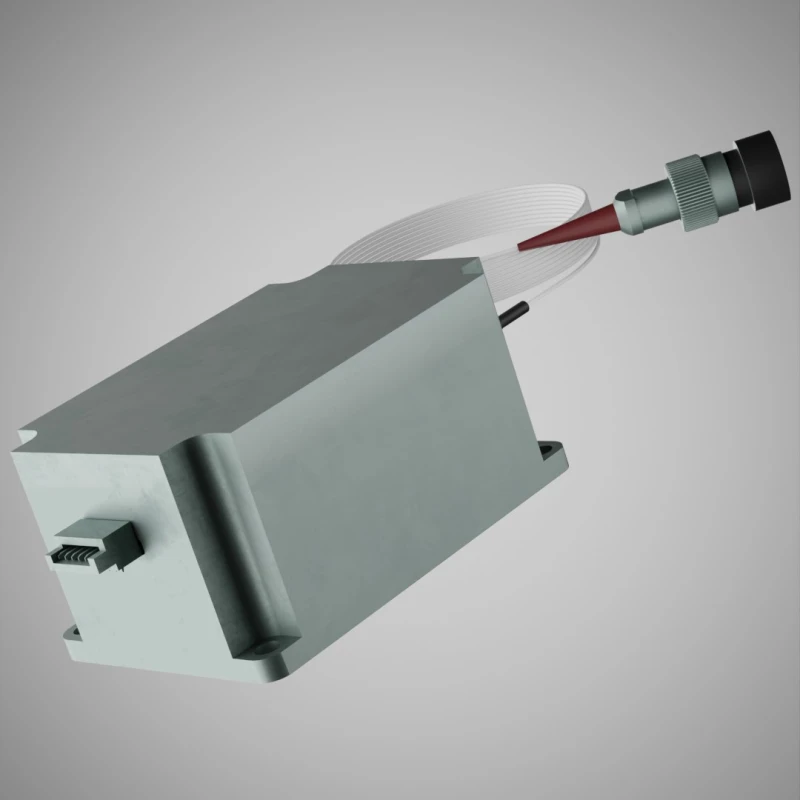

Housed in a compact and robust aluminum 6061 package (58.0 x 40.0 x 29.0 mm), the IsoBragg™ couples its edge-emitting DBR laser diode into a 1-meter-long polarization-maintaining (PM) fiber with an FC/APC male output connector. This configuration ensures a highly stable single spatial mode beam, making it ideal for quantum optics, spectroscopy, and precision metrology applications.

With an integrated thermo-electric cooler (TEC) and thermistor, the module provides temperature stability and wavelength consistency, ensuring long-term operational reliability.

Specifications

Laser Type:	Continuous Wave (CW)
Fiber Type:	Single Mode
Wavelength:	770 nm
Output Power:	10 mW
Fiber Core Diamater:	Not Specified
Fiber Cladding Diameter:	Not Specified
Optical Isolation:	≥ 30 dB
Fiber Bend Radius:	25 mm
Fiber Numerical Aperture:	0.12
Dimensions:	58.0 x 40.0 x 29.0 mm
Nominal Laser Linewidth @ LIV Current:	500 kHz
Operating Current, Max (CW & Pulsed):	200 mA

Download Data Sheet

Features

Fiber-Coupled Design: Delivers a single-mode beam via a PM fiber with FC/APC connector

Optical Isolation: Built-in ≥30 dB isolation prevents back reflections and enhances stability

High Power Output: Adjustable power range from 10 mW to 70 mW for diverse applications

Compact & Robust Package: Aluminum 6061 enclosure (58.0 x 40.0 x 29.0 mm) ensures durability

TEC & Thermistor Integration: Enables precise temperature control for wavelength stability

Low Numerical Aperture: 0.12 NA fiber minimizes beam divergence for enhanced precision

Applications

Atomic and Molecular Spectroscopy: Ideal for precision frequency stabilization and analysis

Quantum Optics and Quantum Computing: Supports coherent light sources for quantum experiments

Laser Cooling and Trapping: Essential for ultra-cold atom research and optical lattices

High-Resolution Metrology: Enables precise measurement systems requiring narrow linewidth lasers

Biomedical Imaging & Optical Sensors: Suitable for advanced diagnostic and research applications

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Photodigm Inc.

On FindLight:

since 2019

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

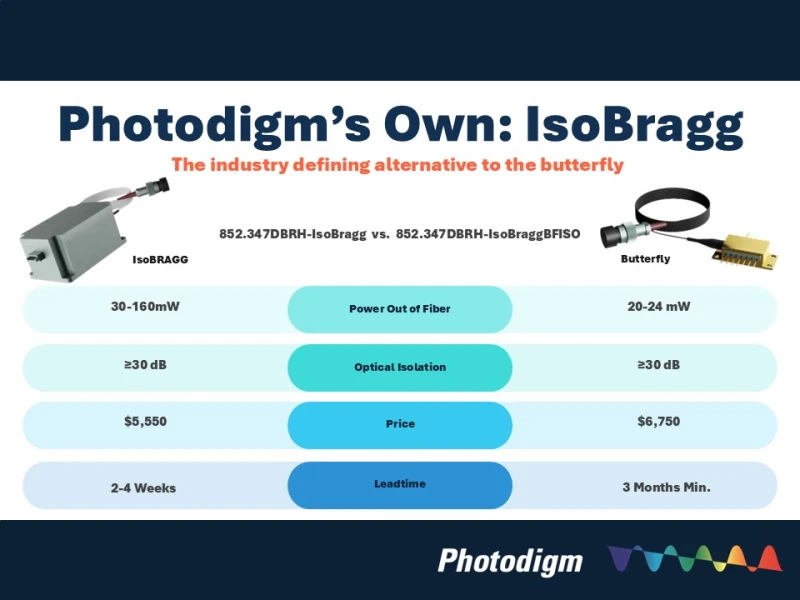

What makes the IsoBragg™ different from other fiber-coupled laser diode packages?

The IsoBragg™ integrates optical isolation (≥30 dB), reducing back reflections and enhancing stability. It also features Photodigm’s proprietary DBR laser diode technology, ensuring single-frequency operation with high spectral purity.

What type of fiber is used in this package?

The laser output is coupled into a 1-meter-long polarization-maintaining (PM) fiber with an FC/APC male connector, ensuring a stable, single spatial mode beam.

How is temperature stability maintained in this module?

The IsoBragg™ includes an integrated thermo-electric cooler (TEC) and thermistor, allowing precise temperature control for wavelength stability and long-term reliability.

What are the key applications of this laser module?

The IsoBragg™ is ideal for quantum optics, spectroscopy, laser cooling, precision metrology, and biomedical imaging, where high spectral purity and stability are essential.

What precautions should be taken when handling the IsoBragg™?

Since the module is ESD-sensitive, always handle it in a grounded work area with a wrist strap. Store it in an antistatic container with all leads shorted together to prevent damage.
