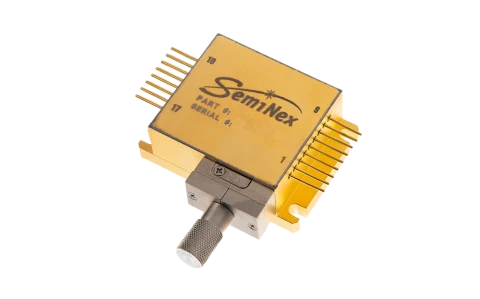

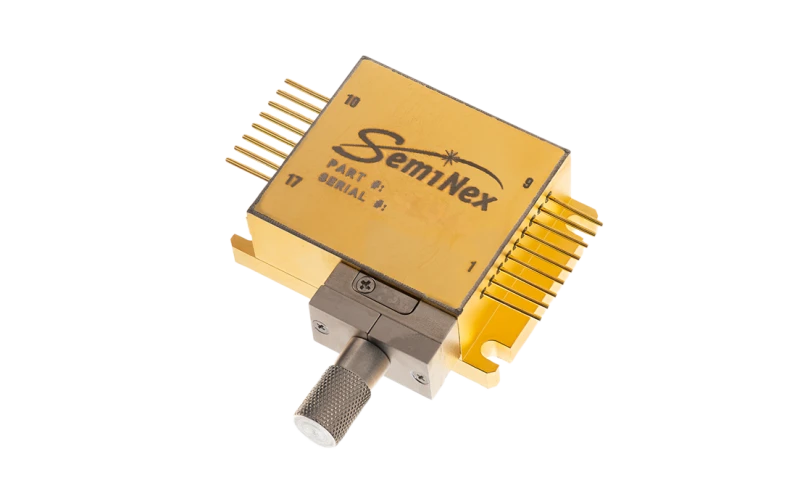

2CM-102 Packaged High Power Multi-Mode Laser Diode

Specifications

Laser Type: Continuous Wave (CW), Modulated
Fiber Type: Multi-Mode
Wavelength: 1550 nm
Output Power: 7700 mW
Fiber Core Diamater: 200 um
Spectral Width (δλ): 10 nm 3dB
Slope Efficiency (η°): 0.4 W/A
Fiber Length: 1 m
Connector: SMA905
Power Conversion Efficiency (η): 19 %
Threshold Current: 0.5 A
Operating Current: 12 A
Operating Voltage: 3 V
Aiming Beam Output Power (Pa): 2 mW
Aiming Beam Wavelength (λa): 635 nm
Aiming Beam Operating Current: 65 mA
Aiming Beam Voltage Limit: 2.3 V
Weight: 170 g
Operating Temperature: -40 to +60 °C
Storage Temperature: -40 to +80 °C
Thermistor Constant: 3477 β
Thermistor Resistance (R): 10000 K ohm
Document icon Download Data Sheet Download icon

Features


  • Two Laser Chip Package

  • Cost-effective fiber-coupled design

  • High Output Power

  • High Dynamic Range

  • High Efficiency

  • Standard Low-Cost Package

Applications


  • Professional Medical

  • DPSS pump source

  • LiDAR

  • Free Space Communications

  • Military / Aerospace
