The BLD-F785-06-22N0 is a high-performance 785nm 6W fiber coupled diode laser designed for demanding applications in medical care, printing, and as a fiber laser pumping source. This laser features a single emitting laser with an output power of 6W, coupled to a 105/125μm 0.22NA fiber. It offers high brightness and efficiency, making it suitable for applications requiring high energy and precision.

The laser operates within a temperature range of 15 to 55°C, ensuring reliable performance in various environments. The electro-optical characteristics of the BLD-F785-06-22N0 are optimized for superior performance. The laser provides a stable output power of 6.0W with a wavelength range of 782 to 788nm. It has a spectral width of 3.5nm at FWHM and a threshold current of 0.2 to 0.5A. The operating current at full power is 2.5 to 2.8A, with an operating voltage of 3.7V.

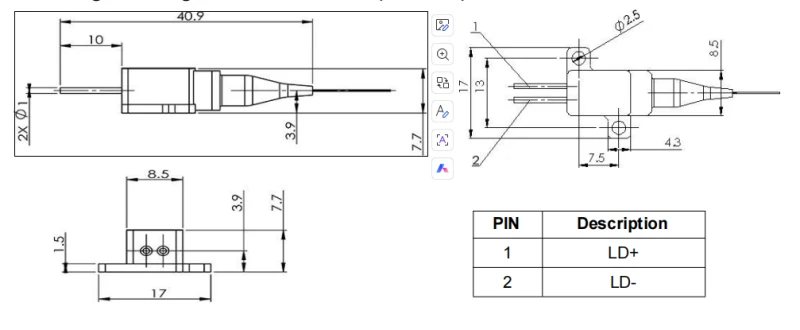

The power conversion efficiency is up to 45%, and the wavelength temperature coefficient is 0.3nm/℃. The fiber specifications include a 1.2m length, with options for Null, FC/PC, or SMA905 connectors. The mechanical design of the BLD-F785-06-22N0 ensures easy integration and reliable operation. The laser is housed in a robust package with dimensions of 55.00mm x 19.40mm x 35.00mm. It requires a proper heatsink for thermal management and must be operated in a cleanroom atmosphere or dust-protected housing.

 Safety precautions include wearing laser safety eyewear and avoiding direct eye or skin exposure to the laser beam. The BLD-F785-06-22N0 is an ideal choice for applications where high precision and reliability are critical.
