Description
Wavelength stabilized diode laser provides narrow linewidth and very small wavelength drift against current and temperature. This 981nm laser diode comes with a 2-pin hermetically sealed package measuring 48x33x14mm. It emits max.30W CW from a 105µm core and 0.22NA fiber pigtail. The wavelength starts to be locked from about 15W and lower.

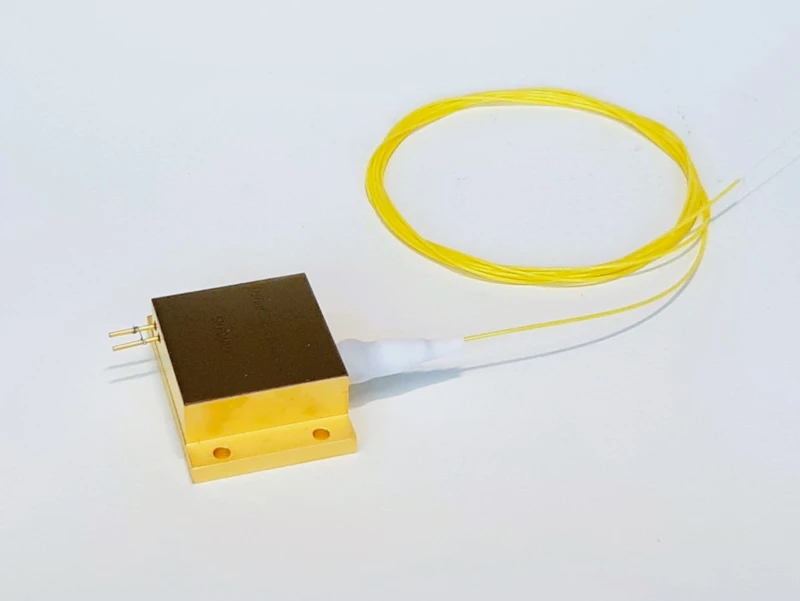

981nm wavelength-stabilized fiber-coupled diode laser
Specifications
Laser Type: | Continuous Wave (CW) |
---|---|
Fiber Type: | Multi-Mode |
Wavelength: | 981 nm |
Output Power: | 30000 mW |
Fiber Core Diamater: | 105 um |
Fiber Cladding Diameter: | 125 um |
Wavelength Tolerance: | +/- 0.5 nm |
Spectral Linewidth (FWHM): | < 1.0 nm |
Numerical Aperture (NA): | <= 0.20 |
Typical Threshold Current: | 0.6 A |
Typical Operating Current: | 10.0 A |
Typical Operating Voltage: | 6.15 V |
Fiber Connector (optional): | SMA905 |
Operating Temperatue (case, Depending On Wavelength Locking Range): | 25+/-3 °C |
MTTF (100% -> 80% Power): | >10,000 hours (under normal operation) |
Features
- Output power: from 9W up to 100W
- Power range for wavelength locking: typically starting from 50% of full power and lower
- Small fiber core: 105µm
- Back reflection protection: 1030 - 1100nm
- Fiber connector: SMA905
- Compact package size: 48x33x14mm
Applications
- Solid state laser pumping: Yb:YAG, Yb:KGW and Yb:KYW
- Pumping of Yb doped fiber laser
