Description

TEC Based Temperature Control System:
These units have an integrated high power TEC temperature controller with a full P.I.D. control loop to deliver fast and efficient heat removal from the source laser module. The laser diode is mounted on a Peltier / TEC cooled, nickel plated copper mounting plate. The mounting plate offers very high surface finish and flatness for low thermal impedance. The cooled mounting plate for the laser is attached to a fan cooled air duct to remove the waste heat and keep the laser temperature stable.

QCW and Modulation Functions:
In addition to the standard CW mode, these devices provide external modulation inputs and circuits, as well as an internal function generator for quasi-CW pulse applications. The internal function generator is used to generate QCW pulses from 20 μs to CW. The controller also accepts an external signal from a QCW trigger. Modulation can be TTL or analogue from DC to 50 kHz;

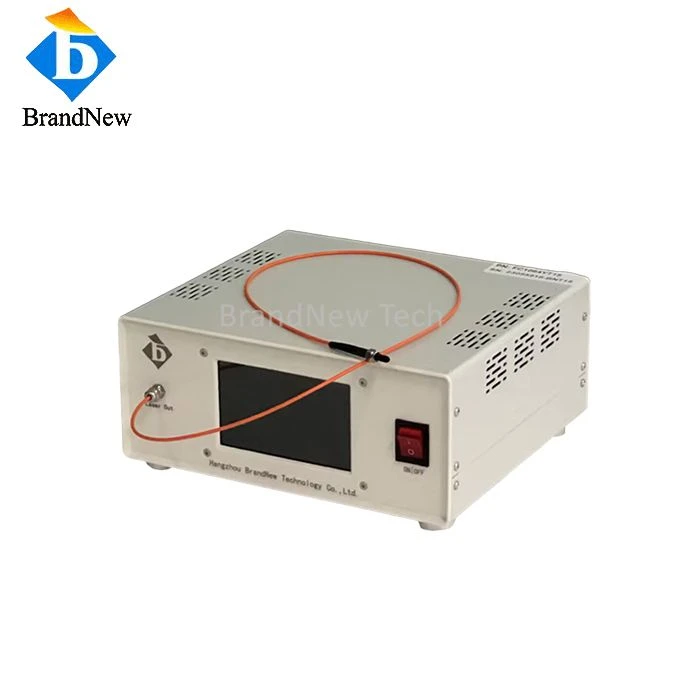

50W 808nm Fiber Coupled Diode Laser System

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 808 nm
Output Power: 40000 mW
Fiber Core Diamater: 200 um
Fiber Cladding Diameter: Not Specified

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • User-adjustable laser output power from 0 to 50 watts; user-controllable for all laser operating parameters
  • Output Power, CW/QCW: 0 - 50 Watts, User Adjustable
  • Cooling Method: TEC-Peltier Coolers, Dual Fans for Waste Heat Removal
  • Front panel LCD with full alphanumeric display

Applications

  • Biomedical & Medical
  • Scientific experiments
  • Laser tests
