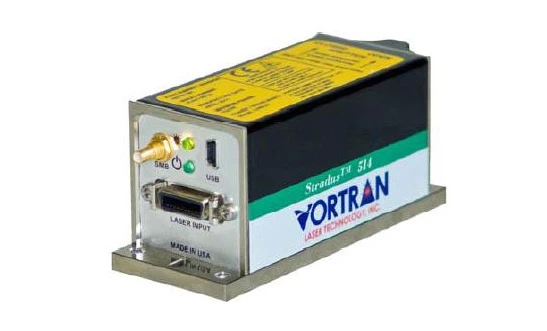

Stradus® 514-60 Diode Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
The Stradus® 514-60 diode laser module by Vortran Laser Technology, Inc. is a cutting-edge, fully integrated solution designed for precision and reliability. This self-contained laser module features a patented sealed optical cavity, ensuring exceptional power stability and low noise performance over time and varying temperatures. Its innovative electronics and design make it an ideal choice for users who demand high-quality laser output in a compact form.
Engineered for precision, the Stradus® 514-60 boasts impressive beam pointing stability and excellent beam quality. The module's small and standard beam sizes are complemented by a high degree of beam circularity, ensuring consistent and reliable performance. The laser's polarization orientation and extinction ratio further contribute to its superior optical output, making it suitable for a wide range of demanding applications. With user convenience in mind, the Stradus® 514-60 offers seamless remote control and monitoring capabilities via its Graphical User Interface (GUI) software.
Users can connect through USB or RS-232 interfaces, allowing for easy integration into various systems. The module supports both analog and digital modulation, providing flexibility and precision in laser operation. Designed to meet rigorous standards, the Stradus® 514-60 is CE Mark Certified and RoHS compliant, ensuring compliance with EU and China regulations.
Stradus® 514-60 Diode Laser Module
Specifications |
|
|---|---|
| Center Wavelength: | 0.515 um |
| Output Power: | 60 mW |
| Spatial Mode: | TEM 00 |
| Small Beam: | ~0.9 mm, ~1.0 mrad |
| Standard Beam: | ~1.2 mm, ~0.6 mrad |
| M² (typical): | < 1.25 |
| Power Stability: | < 0.5% over 24 hours |
| Polarization Orientation: | Vertical ±2⁰ |
| Polarization Extinction Ratio: | >100:1 |
| Input Power (Head): | 12V DC, 1.5A (max) |
| Input Power (Control Box): | 90‐250 VAC, 50/60Hz |
| Storage Temperature: | -10⁰C to +60⁰C |
| Operating Temperature: | +10⁰C to +45⁰C |
| Laser Head Weight: | 210g |
| Communication: | Mini‐USB and RS‐232 |
| CDRH Class: | Class IIIb |
| ESD Protection: | Class 4 |
| EU Compliance: | CE Mark Certified with control box |
| RoHS Compliance: | EU and China |
Features
- Wavelength: 515 ± 5 nm
- Power Output: 60 mW (‐0%, +10%)
- Spatial Mode: TEM00
- Beam Size: Small Beam: ~0.9 mm, ~1.0 mrad; Standard Beam: ~1.2 mm, ~0.6 mrad
- M² (typical): < 1.25
- Beam Circularity: > 90%
- Beam Centration: < 0.5 mm
- Beam Alignment: < 5 mrad
- Pointing Stability: < 5 µrad/⁰C
- Power Stability (over 24 hours): < 0.5%
- Polarization Orientation: Vertical ±2⁰
- Polarization Extinction Ratio: >100:1
Applications
- Biomedical Research & Imaging: Ideal for fluorescence excitation in microscopy and imaging systems requiring stable 561 nm illumination.
- Flow Cytometry: Provides reliable excitation for precise cell analysis in life science laboratories.
- Industrial Alignment & Inspection: Suitable for precision alignment and optical inspection tasks.
- Scientific Instrumentation: Integrates into OEM and laboratory systems demanding high stability and low noise laser sources.
Frequently Asked Questions
The Stradus diode laser module is a fully integrated, plug and play, and self-contained laser module with unparalleled power stability, beam pointing stability, and low noise over time and temperature.
The power output of the Stradus diode laser module is 60 mW (-0%, +10%) with a wavelength of 515 ± 5 nm.
The Stradus diode laser module has a USB or RS-232 interface with GUI for remote control and monitoring.
The Stradus diode laser module can be used in medical, biomedical, and industrial applications.
The weight of the laser head of the Stradus diode laser module is 210g.
