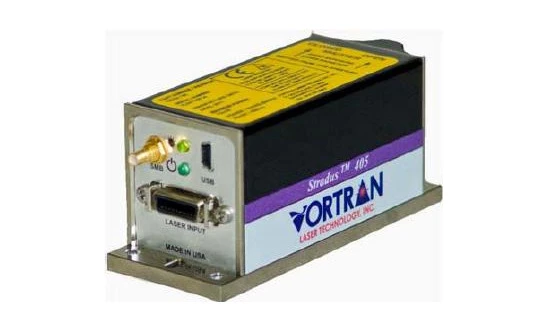

Stradus® 420-100 Diode Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Introducing the Stradus® 420-100 diode laser module by Vortran Laser Technology, Inc., a sophisticated and fully integrated solution designed for precision and reliability. This state-of-the-art laser module is a self-contained, plug-and-play device that provides exceptional performance across a range of applications. Engineered with a patented sealed optical cavity, the Stradus® 420-100 offers unparalleled power stability and beam pointing stability, maintaining low noise levels even over extended periods and varying temperatures.
The Stradus® 420-100 is equipped with Vortran’s innovative Graphical User Interface (GUI) software, allowing for seamless remote control and monitoring through USB or RS-232 connections. This feature ensures that users can maintain optimal functionality and performance with ease, making it an ideal choice for those requiring precise control over their laser systems. The module’s compact and self-contained design further enhances its appeal, offering excellent beam quality without compromising on portability or functionality.
Vortran Laser Technology, Inc. is committed to continuous improvement, ensuring that the Stradus® 420-100 remains at the forefront of laser technology. With its robust construction and adherence to high standards, including CE and RoHS compliance, this laser module is well-suited for demanding environments. Whether for medical, biomedical, or industrial applications, the Stradus® 420-100 sets a new benchmark for excellence in laser technology.
Stradus® 420-100 Diode Laser Module
Specifications |
|
|---|---|
| Center Wavelength: | 0.42 um |
| Output Power: | 100 mW |
| Spatial Mode: | TEM 00 |
| Small Beam (mm, Mrad): | ~1.0, ~0.6 |
| Standard Beam (mm, Mrad): | ~1.4, ~0.5 |
| M² (typical): | < 1.25 |
| Pointing Stability (µrad/⁰C): | < 5 |
| Power Stability (over 24 Hours): | < 0.5% |
| Polarization Orientation: | Vertical ±2⁰ |
| Polarization Extinction Ratio: | >100:1 |
| Input Power (Head): | 12V DC, 1.5A (max) |
| Input Power (Control Box): | 90‐250 VAC, 50/60Hz |
| Storage Temperature: | ‐10⁰C to +60⁰C |
| Operating Temperature: | +10⁰C to +45⁰C |
| Laser Head Weight: | 210g |
| Communication: | Mini‐USB and RS‐232 |
| CDRH Class: | Class IIIb |
| ESD Protection: | Class 4 |
| EU Compliance: | CE Mark Certified with control box |
| RoHS Compliance: | EU and China |
Features
- Wavelength: 420-425 nm
- Power Output: 100 mW (-0%, +10%)
- Spatial Mode: TEM 00
- Beam Size: Small Beam ~1.0 mm, ~0.6 mrad; Standard Beam ~1.4 mm, ~0.5 mrad
- M² (typical): < 1.25
- Beam Circularity: > 90%
- Beam Centration: < 0.5 mm
- Beam Alignment: < 5 mrad
- Pointing Stability: < 5 µrad/°C
- Power Stability (over 24 hours): < 0.5%
- Polarization Orientation: Vertical ±2°
- Polarization Extinction Ratio: >100:1
Applications
- Fluorescence Microscopy: Delivers stable 473 nm excitation for high-contrast imaging
- Flow Cytometry: Enables accurate cell analysis with low noise and stable beam output
- Spectroscopy: Supports Raman and absorption spectroscopy requiring precise blue wavelengths
- Biomedical Diagnostics: Ideal for devices needing reliable blue laser sources
- Industrial Metrology & Alignment: Provides precision alignment and measurement capabilities in manufacturing environments
Frequently Asked Questions
The Stradus diode laser module is a fully integrated, plug and play, and self‐contained laser module.
The Stradus diode laser module can be used in medical, biomedical, and industrial applications.
The operating temperature range of the Stradus diode laser module is +10⁰C to +45⁰C.
The power output of the Stradus diode laser module is 100 mW (‐0%, +10%).
The Stradus diode laser module has a USB or RS-232 interface with GUI.
