15-Pin Fiber-Coupled Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
Discover the forefront of infrared laser technology with SemiNex Corporation's High Power Multi-Mode Lasers, specifically engineered to deliver unmatched performance in the 1470 to 1550 nm wavelength range. As a leader in the industry, SemiNex is committed to pushing the boundaries of laser technology, offering customizable solutions to meet the precise optical and electrical performance needs of our clients. Our lasers are meticulously tested to ensure they meet the stringent demands of modern markets, providing reliability and exceptional power output.
At the heart of our offerings is the ability to deliver up to 6.0 Watts of continuous wave (CW) power, making our lasers ideal for a wide range of applications. Whether you're exploring cutting-edge medical equipment, advancing LIDAR technology, or innovating in free space optical communication, SemiNex lasers provide the robust performance you need. Our products are designed with efficiency in mind, ensuring that you achieve high output power with a dynamic power range that meets your specific requirements.
SemiNex's commitment to innovation is evident in our willingness to optimize the design of our InP laser chips. This customization ensures that each product is tailored to deliver optimal results for your unique applications. Our standard low-cost packaging options provide flexibility, while our dedicated team is ready to collaborate with you to develop custom wavelengths and packaging solutions that align with your project goals. Join the ranks of industry leaders who trust SemiNex for their high-power infrared laser needs. Contact us today to explore how our advanced laser technology can be tailored to your specific requirements, and experience the superior performance and reliability that only SemiNex can offer.

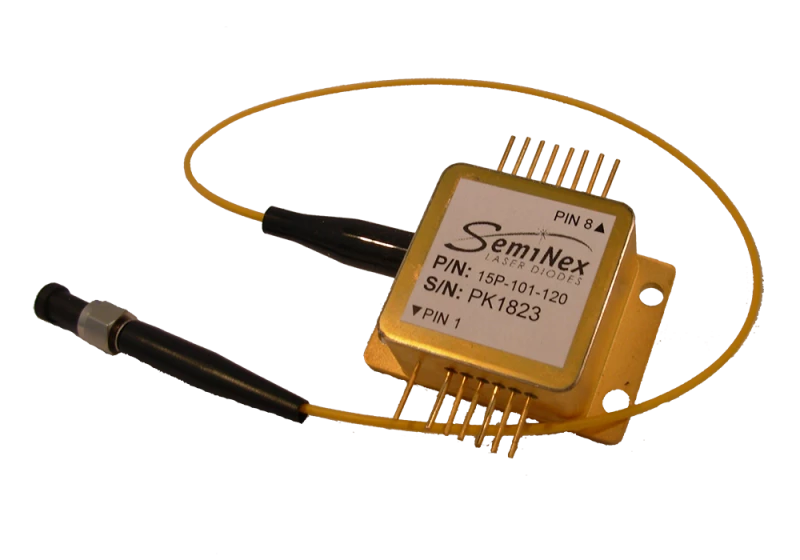

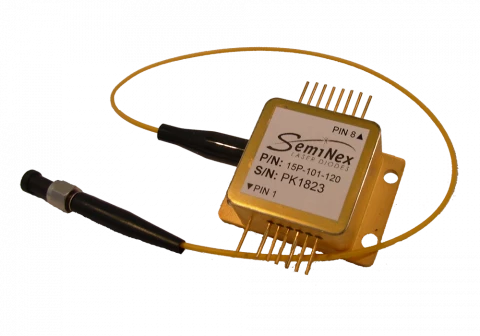

15-Pin Fiber-Coupled Laser
Specifications |
|
|---|---|
| Center Wavelength: | 1.55 um |
| Output Power: | 5400 mW |
| Wavelength: | 1470 nm |
| Spectral Width: | 10 nm |
| Slope Efficiency: | 0.37 W/A |
| Optical Fiber Core Diameter: | 200 µm |
| Optical Fiber NA: | 0.22 |
| Threshold Current: | 0.7 A |
| Operating Current: | 16 A |
| Operating Voltage: | 1.6 V |
| Lead Soldering Temperature: | 250 °C |
| TEC Voltage: | 9.8 V |
| TEC Current: | 6 A |
| Weight: | 99.5 grams |
| Operating Temperature: | -20 to 80 °C |
| Storage Temperature: | 10 to 30 °C |
| Fiber Length: | 1.5 meters |
Features
- High Output Power: Delivers up to 6.0 Watts of continuous wave (CW) power.
- Customizable Wavelengths: Available in standard 1470 and 1550 nm wavelengths, with custom options available to suit specific needs.
- High Dynamic Power Range: Ensures versatility and adaptability in various applications.
- High Efficiency: Designed for optimal performance with efficient power conversion.
- Cost-Effective Packaging: Comes in a standard low-cost package, making it accessible for various projects.
Applications
- Medical Laser Equipment: Ideal for applications in medical devices requiring precise and powerful laser technology.
- LIDAR: Suitable for Light Detection and Ranging systems, providing high power and efficiency.
- Free Space Optical Communication: Supports communication systems that rely on laser technology for data transmission through free space.
- DPSS Pump Lasers: Effective as a pump source for Diode-Pumped Solid-State lasers, enhancing performance and efficiency.
- Military / Aerospace: Applicable in military and aerospace sectors for various laser-based applications, offering reliability and high performance.
Frequently Asked Questions
The SemiNex 15-Pin Fiber-Coupled Laser has a power output of up to 6 watts of CW power.
The standard wavelengths for the SemiNex 15-Pin Fiber-Coupled Laser are 1470 and 1550nm.
Yes, custom wavelengths are available for the SemiNex 15-Pin Fiber-Coupled Laser.
The SemiNex 15-Pin Fiber-Coupled Laser can be used in medical equipment, LiDAR, free space optical communication, DPSS pump lasers, military, and aerospace applications.
The weight of the SemiNex 15-Pin Fiber-Coupled Laser ranges from 82.0 to 99.5 grams, depending on the model.
