Description
The RIO019x Series devices are high-performance cost effective External Cavity Laser (ECL). The design is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.
PLANEX™ laser combines high performance, comparable with long cavity fiber lasers, with the low cost, simplicity, small size and reliability of semiconductor lasers.
PLANEX™ laser is an ideal source for multiple commercial and military fiber optic sensors applications, including interferometric and Brillouin DTSS systems for oil & gas, security and smart infrastructures monitoring, coherent Doppler LIDAR for wind measurements, coherent and heterodyne metrology, photonic velocimetry and vibrometry, and coherent communications. Laser is available with various wavelength, phase noise and output power options.
RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser (10mw)
Specifications |
|
|---|---|
| Center Wavelength: | 1.55 um |
| Output Power: | 10 mW |
| Center Wavelength (ITU Grid): | nm |
| Side Mode Suppression Ratio: | 40 dB |
| Wavelength Tunability: | 30 pm |
| Relative Intensity Noise (>/= 1kHz): | -140 dB/Hz |
| Polarization Extinction Ratio: | 20 dB |
Features
- Single Longitudinal Mode: Ensures precision and stability in laser performance.
- Center Wavelength: 1530nm-1565nm, ITU-T DWDM 100 GHz C-band or custom.
- Very Narrow Linewidth: Offers long coherence length for enhanced performance.
- Very Low Phase Noise: Ideal for high-sensitivity applications.
- Wavelength Tunability: Provides flexibility for various applications.
- Ultra Low RIN: Reduces noise for clearer signal transmission.
- Excellent SMSR: Ensures high signal quality.
- Excellent Wavelength Stability: Reliable performance over life and temperature variations.
- Low Sensitivity to Vibration and Acoustic Noise: Maintains performance in dynamic environments.
- CW, Modulated, and Pulsed Operations: Versatile for different operational needs.

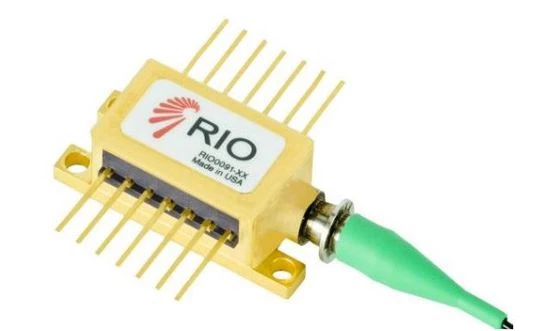

- Small Form Factor: Compact 14-pin butterfly package.
- Low Power Dissipation: Efficient energy use.
- SMF and PM Fiber Pigtail Options: Offers connectivity flexibility.
- Telcordia GR-468 Qualified: Meets industry standards for reliability.
- RoHS Compliant: Environmentally friendly design.
Applications
- Acoustic & seismic interferometric fiber optic sensing
- Defense and security
- Oil & Gas – exploration and production
- LIDAR
- Metrology
- RF and microwave photonics
- Coherent Communications
Frequently Asked Questions
The RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser is an ideal source for multiple commercial and military fiber optic sensors applications, including interferometric and Brillouin DTSS systems for oil & gas, security and smart infrastructures monitoring, coherent Doppler LIDAR for wind measurements, coherent and heterodyne metrology, photonic velocimetry and vibrometry, and coherent communications.
The key features of the RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser include single longitudinal mode, center wavelength of 1530nm-1565nm, ITU-T DWDM 100 GHz C-band or custom, very narrow linewidth, long coherence length, very low phase noise, wavelength tunability, ultra-low RIN, excellent SMSR, excellent wavelength stability over life and temperature, low sensitivity to vibration and acoustic noise, CW, modulated and pulsed operations, small form factor, 14 pin butterfly, low power dissipation, SMF and PM fiber pigtail options, Telcordia GR-468 qualified, and RoHS compliant.
The design of the RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.
The RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser is available with various wavelength, phase noise, and output power options.
The applications of the RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser include acoustic & seismic interferometric fiber optic sensing, defense and security, oil & gas – exploration and production, LIDAR, metrology, RF and microwave photonics, and coherent communications.
