OEwaves Ultra-Narrow Linewidth 1&2 Micron Lasers

Name: OEwaves Ultra-Narrow Linewidth 1&2 Micron Lasers
Brand: OEwaves
Availability: InStock

Description

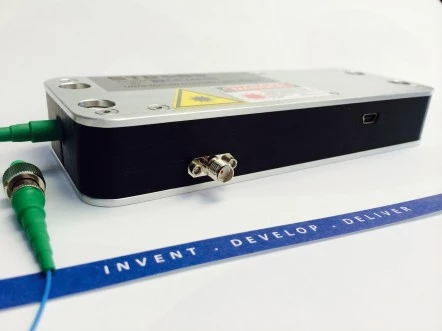

The 1 & 2 Micron Narrow Linewidth Laser Module houses a proprietary driver/controller and the OEwaves laser source which is based on a high quality factor (Q) Whispering Gallery Mode (WGM) micro-resonator. The laser is scalable to a variety of wavelengths within 780-2200 nm range.

The unique technology of the OEwaves Narrow Linewidth Laser Module leverages the self-injection locking of a suitable commercially available laser diode via a resonant optical feedback from a high-Q WGM micro-resonator. Its monolithically integrated approach, along with micro-scale mass and volume, make the laser virtually insensitive to environmental vibrations.

Specifications

Center Wavelength:	1 um
Output Power:	2 mW
Instantaneous Linewidth:	<200 Hz
Frequency Noise Floor:	<8 Hz/rt-Hz
Thermal Tuning Range:	5-10 GHz
Size:	2.3 x 6 x 1 in^3
FM Bandwidth-Optional:	DC-100 kHz

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Ultra-Narrow Lorentzian Laser Linewidth
Ultra-Low Phase/Frequency Noise
Wide Thermal Tuning Range
Low Vibration Sensitivity
Low Residual Amplitude Modulation
Wavelength Stability
Frequency Modulation Option
Compact Package
Integrated Proprietary Driver/Controller
USB or RS232 Control Interface

Applications

LIDAR
Laser seeding
Optical Metrology and Spectroscopy
Second Harmonic Generation
Optical Parametric Oscillator
Test and Measurement

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Ships from:

United States

Sold by:

OEwaves

On FindLight:

since 2017

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the wavelength range of the OEwaves Ultra-Narrow Linewidth 1&2 Micron Lasers?

The laser is scalable to a variety of wavelengths within 780-2200 nm range.

What is the unique technology used in the OEwaves Narrow Linewidth Laser Module?

What applications is the OEwaves Ultra-Narrow Linewidth 1&2 Micron Lasers suitable for?

The laser is suitable for LIDAR, laser seeding, optical metrology and spectroscopy, second harmonic generation, optical parametric oscillator, test and measurement.

What is the laser safety classification of the OEwaves Ultra-Narrow Linewidth 1&2 Micron Lasers?

This product meets the appropriate standard in Title 21 of the Code of Federal Regulations (CFR) 1040 and is classified as a FDA/CDRH Class 3b laser product.

What is the short term stability of the OEwaves Ultra-Narrow Linewidth 1&2 Micron Lasers?

The short term stability is 2 x 10-9 @1 s at constant case temperature.
