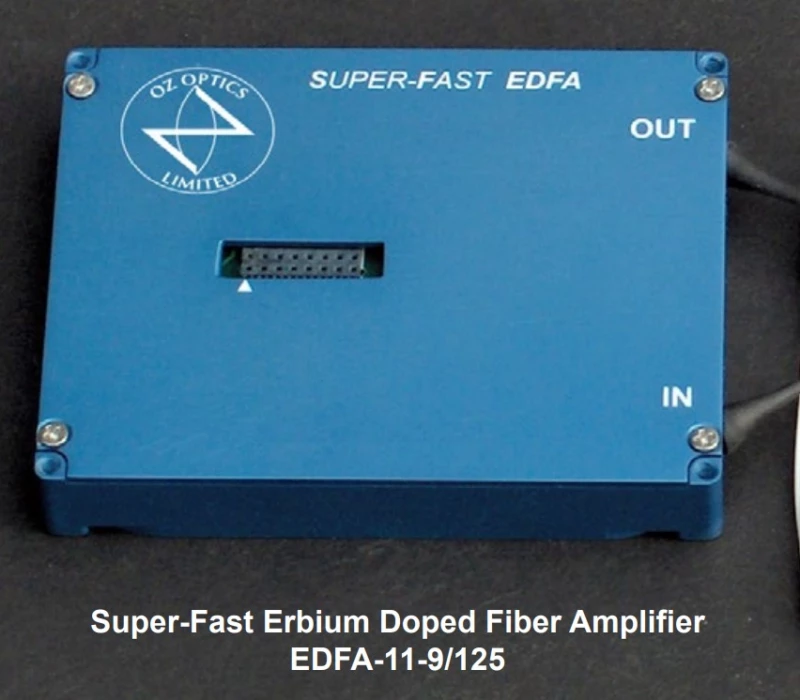

Super-Fast Auto Gain Controlled Erbium Doped Fiber Amplifier (EDFA)

Name: Super-Fast Auto Gain Controlled Erbium Doped Fiber Amplifier (EDFA)
Brand: OZ Optics
Availability: InStock

Description

The Super-Fast Auto Gain Controlled Erbium Doped Fiber Amplifier (EDFA) is a compact and high-performance optical amplifier designed to address fast transient conditions in WDM transmission lines.

It offers sub-µs suppression time and provides stable amplification with low noise and fixed 24 dB gain across a wide range of wavelengths and signal powers. This EDFA is suitable for various applications, including ROADM networks, CATV/NETWORK access, and C-band channel preamp.

This EDFA is designed to be used in the traditional C-band. During operation, the signal wavelengths must be confined to a 3.2 nm region for each optical amplifier, although the band may be anywhere within the C-band. The unit can work with up to 4 channels.

Due to the nature of the narrow band operation, the transient suppression of the Super Fast EDFA will be greatly improved, compared to a traditional EDFA.

Specifications

Amplifier Type:	EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range:	1529 – 1558 nm
Min Input Power:	-19 dBm
Max Output Power:	13 dBm
Nominal Gain:	24 dB
Output Fiber Type:	Not Specified
Noise Figure:	5.5 dB
Gain Flatness:	±0.3 dB
Polarization Dependent Gain:	±0.3 dB
Polarization Mode Dispersion:	0.5 ps/√km
Transient Suppression Time:	100 ns
Transient Over/Undershoot:	±0.3 dB
Input/Output Return Loss:	40 dB
Residual Pump Power At Output:	-25 dBm
Fiber Pigtai:	9 to 125 µm
Fiber Pigtail Length:	1 m
Connector Type:	FC/APC

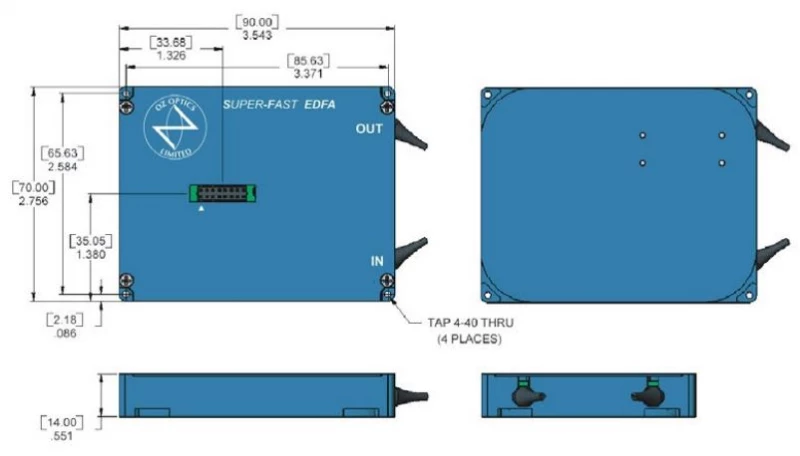

Dimensions:	90 x 70 x 14 mm
Operating Temperature:	0 to 70 °C
Storage Temperature:	-40 to +85 °C

Download Data Sheet

Features

Compact design

Sub-µs transient suppression time

Undershoot/overshoot ≤ ±0.3 dB

Auto gain control over wavelength and signal amplitude

Low noise

Fixed 24 dB gain independent of wavelength and signal power

Applications

ROADM network

CATV/NETWORK access

C-band channel preamp

Add to Watchlist (My Watchlist)

Ships from:

Canada

Sold by:

OZ Optics

On FindLight:

since 2015

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the Super-Fast Auto Gain Controlled Erbium Doped Fiber Amplifier (EDFA) used for?

The Super-Fast Auto Gain Controlled EDFA is designed to address fast transient conditions in WDM transmission lines and is suitable for various applications such as ROADM networks, CATV/NETWORK access, and C-band channel preamp.

What is the suppression time of the Super-Fast Auto Gain Controlled EDFA?

The Super-Fast Auto Gain Controlled EDFA offers sub-µs suppression time.

Can the Super-Fast Auto Gain Controlled EDFA work with multiple channels?

Yes, the unit can work with up to 4 channels.

What is the range of wavelengths that the Super-Fast Auto Gain Controlled EDFA can operate within the C-band?

The signal wavelengths must be confined to a 3.2 nm region for each optical amplifier, although the band may be anywhere within the C-band.

How does the transient suppression of the Super-Fast Auto Gain Controlled EDFA compare to a traditional EDFA?

Due to the nature of the narrow band operation, the transient suppression of the Super-Fast Auto Gain Controlled EDFA will be greatly improved compared to a traditional EDFA.
