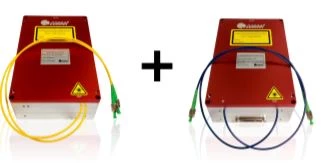

Thumbnail of 1550nm Long Pulse Single Frequency PM Fiber Laser (HP) photo 1

Description

Connet's CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser is a modularized pulsed fiber laser specially designed for long-distance coherent Doppler wind LiDAR application.

This fiber laser is generally suited for applications which require a long-pulse (in the pulse range of 100ns - 2us). The output of this fiber laser has a single-mode linear polarization with a single-pulse energy up to 150uJ.

CoLIS-HP series 1550nm nanosecond long pulse single-frequency polarization-maintaining fiber laser integrates Connet's proprietary single-frequency narrow linewidth seed laser source with a linewidth as narrow as 5kHz. The extinction ratio can be 100dB or more using a cascaded acousto-optic modulator (AOM), producing a pulsed signal with high turn-off ratio.

This nanosecond single-frequency polarization-maintaining fiber laser adopts an all PM fiber design and can achieve a high polarization extinction ratio (PER). The output fiber end can be integrated with high power three-port optical circulator according to the customer's application requirements.

1550nm Long Pulse Single Frequency PM Fiber Laser (HP)

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Amplifier Type: EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range: 1545 – 1565 nm
Min Input Power: Not Specified
Max Output Power: 34.77 dBm
Nominal Gain: Not Specified
Output Fiber Type: PLMA
Pulse Energy (@200ns, 20kHz): 150 uJ
Linewidth (Seed Laser): 10 kHz
Pulse Width (typ.): 200 ns
Repetition Rate (max.): 20 kHz
Beam Quality (M2): 1.3
Max Frequency Shift: 80 MHz
Polarization Extinction Ratio: 23 dB
Output Power Stability (8hrs): ±0.5 %
Peak Power (@200ns): 750 W
Output Isolation (min.): 35 dB
Power Supply: 12-24 V (DC)
Operating Temperature: -20 to +50 ℃
Storage Temperature: -40 to +85 ℃
Output Fiber Length: >0.5 m
Optical Connector: FC/APC or Other (optional)
Dimensions (Seed Laser): 200x135x55 mm
Dimensions (Amplifier): 200x135x41 mm
Built-in Circulator: Optional

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

This high power single frequency polarization maintaining fiber amplifier module exhibit various features, such as:

  • Single Pulse Energy of up to 150uJ
  • Adjustable Repetition Rate from 5 to 20kHz
  • Pulse Widths of  100-2000ns
  • Excellent Beam Quality: M2<1.3
  • High Polarization Extinction Ratio (PER)

For other wavelengths, higher output power, different pulse widths or a repetition rate, please inquire. We will be happy to work with you and customize our products to meet your needs.

Applications

Connet's nanosecond fiber lasers are typically used in the following applications:

  • Coherent Doppler Wind LiDAR
  • Environmental Monitoring
  • Pollution Monitoring
  • Scientific Research

Applications in other areas are also possible. We will support your requests and try to meet the needs of your specific application.

Frequently Asked Questions

What applications is the Connet nanosecond fiber laser typically used for?
The Connet nanosecond fiber laser is typically used for Coherent Doppler Wind LiDAR, environmental monitoring, pollution monitoring, and scientific research applications.
What is the polarization extinction ratio (PER) of the fiber laser?
The fiber laser can achieve a high polarization extinction ratio (PER).
What is the pulse width range of the fiber laser?
The pulse width range of the fiber laser is 100-2000ns.
What is the single pulse energy of the fiber laser?
The single pulse energy of the fiber laser can be up to 150uJ.
What is the wavelength of the Connet CoLIS-HP series fiber laser?
The operating wavelength of the Connet CoLIS-HP series fiber laser is 1550nm.
