Description
Ziguan Pulse-type erbium-doped fiber amplifiers feature high gain and low noise, short-pulse amplification capability, nonlinear effect suppression, flexible control and monitoring, and compact packaging design.

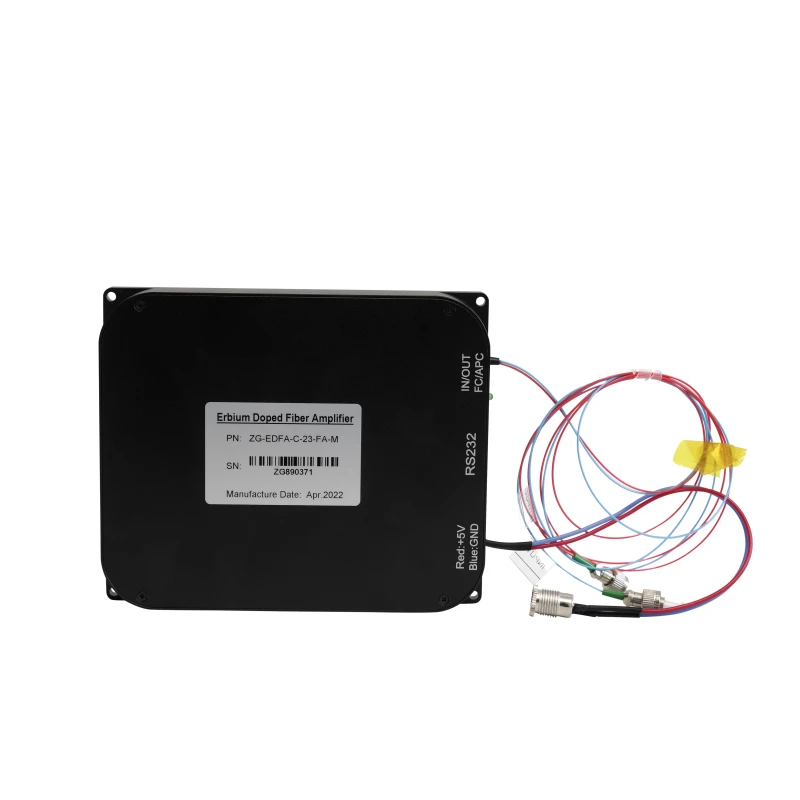

Featuring a compact design, the amplifier is available in both desktop and modular configurations. It supports Automatic Current Control (ACC) mode and offers PC software control via an RS232 interface, ensuring stable and efficient operation. With low-noise digital and high input/output isolation, the amplifier is ideal for integration into fiber-optic communication systems, laser setups, and sensing applications.
C Band Pulsed Erbium-Doped Fiber Amplifier
Specifications
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
|---|---|
| Wavelength Range: | 1530 – 1565 nm |
| Min Input Power: | -45 dBm |
| Max Output Power: | 57 dBm |
| Nominal Gain: | Not Specified |
| Output Fiber Type: | Not Specified |
| Input Pulse Peak Power: | 1-10 mW |
| Output Pulse Peak Power: | 500 W |
| Extinction Rati: | 20 dB |
| Input/Output Isolation: | 30 dB |
| Noise Figure: | 5.5 dB |
| 脉冲宽度: | 1-50 NS |
Download Data Sheet
Features
- Benchtop or module package
- Short pulse amplification
- Peak power
- Can be Customized
Applications
- Fiber Lasers
- Fiber Sensors
- Fiber Optic Communication Systems
- LIDAR Systems
Frequently Asked Questions
Can Ziguan pulsed EDFA be pakcaged in a module?
Yes, it support module or benchtop package.
What are the features of Ziguan pulsed EDFA?
The features include benchtop or module package, hort pulse amplification, peak power.
