Description
The high-power erbium-ytterbium co-doped optical amplifier adopts high-reliability components and a special optical design. Good craftsmanship ensures the reliability of the entire product. The product has a light-following function and integrates a calibration light source. Through reasonable structural design and thermal simulation, the entire product is guaranteed to work well at high and low temperatures. This product can be customized according to customer needs.

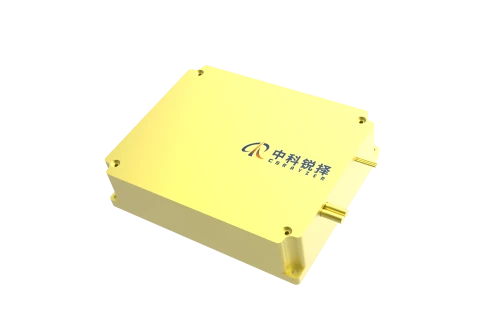

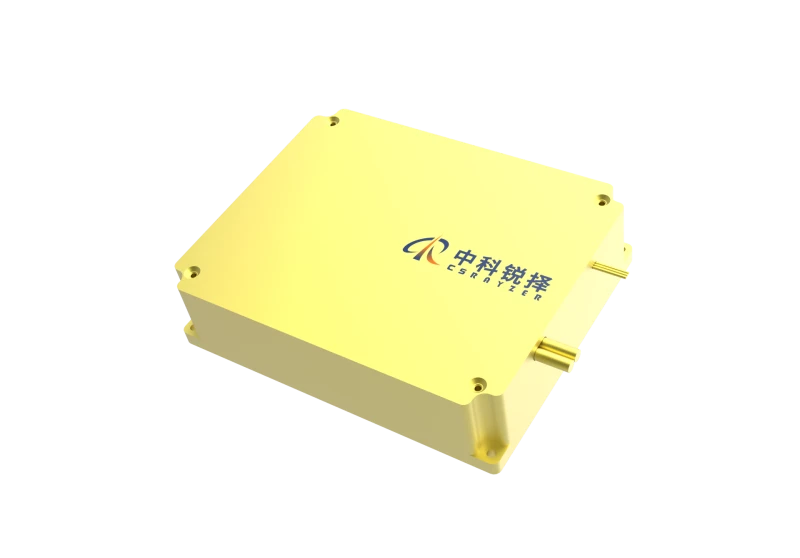

High Power Erbium-Ytterbium Co-Doped Optical Amplifier RZ-M-EYDFA- C-3W-SMF28e-FA-1m
Specifications
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
|---|---|
| Wavelength Range: | 1540 – 1565 nm |
| Min Input Power: | -10 dBm |
| Max Output Power: | 37 dBm |
| Nominal Gain: | 0.3 dB |
| Output Fiber Type: | SMF-28 |
Download Data Sheet
Features
- Integrated design
- High power output and low noise Figure
- The pre-amplifier itself has the function of light adjustment
- Integrated calibration light source
- High stability and reliability
Applications
- Laser aerospace communication
- Laser ranging
- University and Research Institute R&D
Frequently Asked Questions
What is the operating temperature range for the optical amplifier?
The operating temperature ranges from -5°C to 55°C. Additional heat dissipation measures are recommended.
Can the amplifier be customized to fit specific needs?
Yes, we offer customization options to adapt our amplifier to meet the specific requirements of different applications.
What is the significance of the integrated calibration light source?
The integrated calibration light source ensures precise and consistent performance by enabling accurate alignment and calibration during operations.
How is the product designed to handle extreme temperatures?
The amplifier is engineered with a robust design that includes thermal simulation to guarantee stable performance in both high and low temperature environments.
What types of optical fibers are compatible with the amplifier?
The amplifier is compatible with SMF28E or equivalent fibers, and it comes with either φ3 or φ2 yellow fiber optic cables.
What are the safety features included in the amplifier?
The amplifier includes various alarm thresholds for input and output optical power, as well as for pump laser temperature, to ensure safe operation under abnormal conditions.
How does the automatic power control feature benefit the user?
The automatic power control (APC) feature maintains consistent output power, which is crucial for applications requiring stable optical signals.
