Description

The Ytterbium-doped Fiber Amplifier (YDFA) from BOX OptronicsTech is a high-performance optical amplifier designed to amplify laser signals in the 1030–1100 nm wavelength range. Utilizing ytterbium-doped fiber pumped by a semiconductor laser, this amplifier offers a wide range of applications, including optical fiber communication and sensing.

Key features of the YDFA include a wide operating wavelength range, high output power with adjustable levels, and low noise performance. The amplifier is available in both single-mode (Hi1060) and polarization-maintaining (PM980) fiber versions, catering to diverse application needs. It provides saturated output power options ranging from 17 dBm to 40 dBm, with a noise figure of 5.0 dB and polarization-dependent gain of less than 0.3 dB.

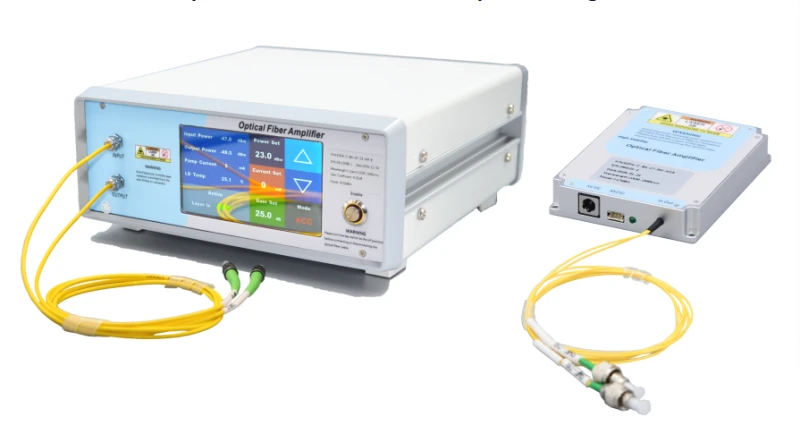

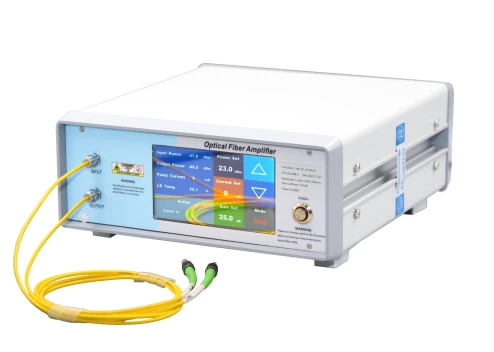

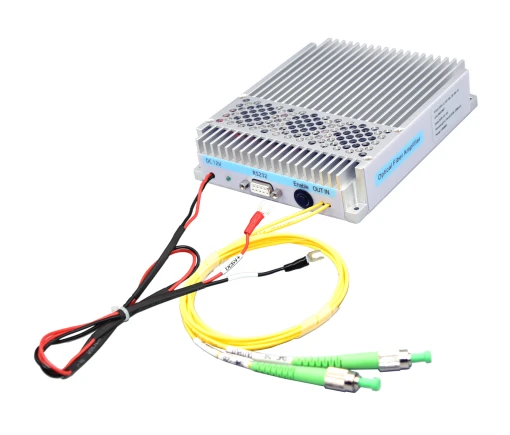

The YDFA is offered in two form factors: a benchtop model for ease of operation and a compact modular version for integration into larger systems. The benchtop version measures 260(W)Γ—280(D)Γ—120(H) mm, while the modular version is more compact at 125(W)Γ—150(D)Γ—30(H) mm. Both models feature FC/APC connectors and operate on AC 110–240V or DC 5V power supplies.

For control and monitoring, the YDFA includes a user-friendly front panel with buttons for adjusting pump current and output power. It also supports RS232 serial communication for remote operation. The amplifier operates within a temperature range of -5 to +55Β°C and a humidity range of 0–70%.
Ideal for applications requiring high gain and low noise, the YDFA is a versatile solution for enhancing optical signal strength.

Β

Tel/Whatsapp：+86-18476865009

Ytterbium-Doped Fiber Amplifier

Visit the Shenzhen Box Optronics Technology Co.,Ltd. Store

Specifications

Amplifier Type: YDFA - Ytterbium-Doped Fiber Amplifier
Wavelength Range: 1030 – 1100 nm
Min Input Power: 1 dBm
Max Output Power: 40 dBm
Output Fiber Type: PM980, HI1060
Saturated Output Power: 17/20/23/25/26/27/30/33/37/40 dBm
Noise Figure: 5.0 dB
Polarization Dependent Gain: <0.3 dB
Input/Output Isolation: >35 dB
Operating Mode: ACC/APC
Connector: FC/APC

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wide wavelength range
  • High output power and high gain
  • Low noise figure

Applications

  • Optical fiber communication
  • Optical fiber sensing
  • Fiber laser

Frequently Asked Questions

What is a Ytterbium-doped Fiber Amplifier?
A Ytterbium-doped Fiber Amplifier (YDFA) is a device that amplifies laser signals in the 1030~1100 nm wavelength range by using a semiconductor laser to pump ytterbium-doped fiber.
What are the key features of the Ytterbium-doped Fiber Amplifier?
The key features of the YDFA include a wide wavelength range, high output power and gain, and a low noise figure.
What applications can the Ytterbium-doped Fiber Amplifier be used for?
The YDFA can be used for optical fiber communication, optical fiber sensing, and as a fiber laser.
What are the available output power options for the Ytterbium-doped Fiber Amplifier?
The available saturated output power options range from 17 dBm to 40 dBm.
What types of fiber are compatible with the Ytterbium-doped Fiber Amplifier?
The YDFA is compatible with Hi1060 single-mode fiber and PM980 polarization maintaining fiber.
What are the dimensions of the Ytterbium-doped Fiber Amplifier?
For benchtop models, dimensions are 260x280x120 mm for 17~27 dBm and 360x350x120 mm for 30~40 dBm. For module versions, dimensions are 125x150x30 mm for 17~27 dBm and 139x235x70 mm for 30~40 dBm.
How can the Ytterbium-doped Fiber Amplifier be controlled?
The benchtop version can be controlled via buttons, while the module version can be controlled through RS232 serial communication using a DB9 female interface.
