Pulsed Fiber Lasers

Fiber Laser System by PhotoMachining
PhotoMachining
In a fiber laser, the active gain medium is an optical fiber doped with rare earth elements such as erbium, ytterbium, or neodymium. The fundamental wavelength of fiber lasers is between 1 and 2 µm depending on the dopant and host material.  Fiber lasers are available from a few watts to multiple kilowatt output, but ...

Specifications

Wavelength: 1064 nm
Average Output Power: 200 W
Pulse Duration: -- - -- ns
Beam Quality (M^2): --
Max Pulse Repetition Rate: 100 kHz
Data Sheet

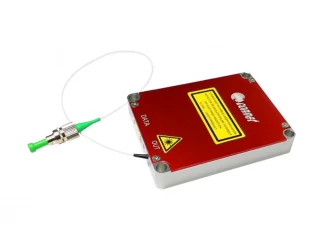

CoLID-HP 1550nm short pulse fiber laser for LiDAR is an eye- safe pulsed laser sources for LiDAR with high peak power and high pulse energy. The all-fiber design guarantees the robustness and the maintenance-free operation of the fiber laser module. This pulsed fiber laser is an ideal source for the applications in LiDAR, range ...

Specifications

Wavelength: 1550 nm
Average Output Power: 5 W
Pulse Duration: 1 - 250 ns
Beam Quality (M^2): 1.2
Max Pulse Repetition Rate: 3000 kHz
Data Sheet
Connet 1030nm picosecond pulsed fiber laser adopts the all-fiber design and is an all polarization-maintaining fiber laser based on SESAM passive mode-locked technology. The stable linearly polarized picosecond laser output can be achieved through the optimized optical path, which is highly reliable and maintenance-free. This laser ...

Specifications

Wavelength: 1030 nm
Average Output Power: 0.03 W
Pulse Duration: 0.005 - 0.010 ns
Beam Quality (M^2): 1.1
Max Pulse Repetition Rate: 60,000 kHz
Data Sheet
Connet 1064nm picosecond pulsed fiber laser adopts the allfiber design and is an all polarization-maintaining fiber laser based on SESAM passive mode-locked technology. The stable linearly polarized picosecond laser output can be achieved through the optimized optical path, which is highly reliable and maintenance-free. This laser ...

Specifications

Wavelength: 1064 nm
Average Output Power: 0.1 W
Pulse Duration: 0.005 - 0.050 ns
Beam Quality (M^2): 1.1
Max Pulse Repetition Rate: 60,000 kHz
Data Sheet
The 1064nm pulsed laser source module of Connet is specially designed for pulse application. It is an ideal seed laser for pulsed fiber laser. This laser source moduleinternally employs the high-performance diode laser which is especially designed for pulse application. The laser is modulated directly to pulse laser by the pulse ...

Specifications

Wavelength: 1064 nm
Average Output Power: 1 W
Pulse Duration: 2 - 2 ns
Beam Quality (M^2):
Max Pulse Repetition Rate: 1000 kHz
Data Sheet
Single frequency narrow linewidth fiber laser adopts rare earth-doped fiber DFB laser cavity structure, output wavelength 1550nm single longitudinal mode laser, spectral linewidth is less than 3kHz, output spectral side mode suppression ratio exceeds 60dB, can provide module or desktop package, it is distributed Ideal laser source ...

Specifications

Wavelength: 1550 nm
Average Output Power: 30 W
Pulse Duration: 5 - 30 ns
Beam Quality (M^2): --
Max Pulse Repetition Rate: 100 kHz
Data Sheet

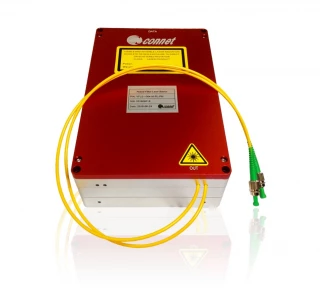

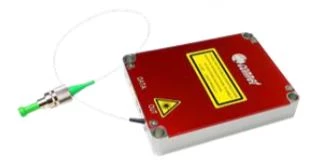

CoLID-HP 1064nm short pulse fiber laser for LiDAR of Connet is a high peak power, high pulse energy fiber laser source. Using the MOPA configuration and the all-fiberoptimized design, the laser can offer the high peak power and near diffraction-limit quality output beam. Connet 1064nm short pulse fiber lasers for LiDAR are the ideal ...

Specifications

Wavelength: 1064 nm
Average Output Power: 5 W
Pulse Duration: 1 - 50 ns
Beam Quality (M^2): 1.2
Max Pulse Repetition Rate: 10-500 kHz
Data Sheet

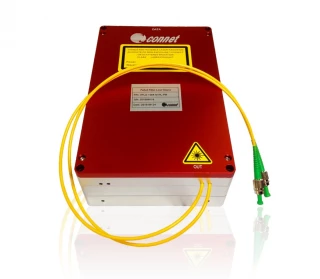

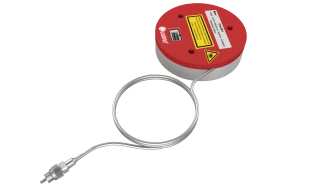

The CoLID series 1550nm short pulse fiber laser for LiDAR of Connet is a fiber laser source delivering high peak power and high pulse energy. Based on Master Oscillator Power- Amplifier (MOPA) configuration and optimized design of multi-stage optical amplification, the high peak power and the ns pulse width output can be achieved. ...

Specifications

Wavelength: 1550 nm
Average Output Power: 1.5 W
Pulse Duration: 0.5 - 250 ns
Beam Quality (M^2): 1.1
Max Pulse Repetition Rate: 3000 kHz
Data Sheet
The CoLID series 1064nm pulsed fiber laser of Connet is a laser source delivering high peak power and high pulse energy. Using MOPA configuration and all-fiber optimized design, the laser can offer the high peak power and the near diffraction-limit quality output beam. Connet CoLID series 1064nm pulsed fiber ...

Specifications

Wavelength: 1064 nm
Average Output Power: 2 W
Pulse Duration: 1 - 50 ns
Beam Quality (M^2): 1.1
Max Pulse Repetition Rate: 500 kHz
Data Sheet
Connet Laser Technology's CoLID series 1064nm short pulse fiber laser is a light source delivering high peak power and high pulse energy. Using ,aster oscillator power amplifier (MOPA) configuration and an optimized fiber design, this fiber laser can offer high peak powers and outstanding beam quality with a near diffraction-limit ...

Specifications

Wavelength: 1064 nm
Average Output Power: 2 W
Pulse Duration: 1 - 50 ns
Beam Quality (M^2): 1.1
Max Pulse Repetition Rate: 500 kHz
Data Sheet

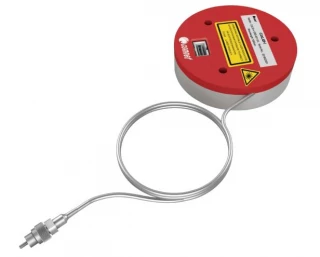

Connet Laser Technology instroduces CoLID-Mini, a 1550nm short pulse fiber laser for LiDAR. This is a new fiber laser source delivering high peak power and high pulse energy output. An optimized design with special configuration can achieve a high peak power and nanosecond (ns) level pulse width laser output. It is an ideal light ...

Specifications

Wavelength: 1550 nm
Average Output Power: 1.5 W
Pulse Duration: 0.5 - 250 ns
Beam Quality (M^2): <1.1
Max Pulse Repetition Rate: 500 kHz
Data Sheet
Connet's CoLID series 1550nm short pulse fiber laser for LiDAR is a fiber laser source delivering high peak power and high pulse energy. Based on Master Oscillator Power-Amplifier (MOPA) configuration and optimized design for multi-stage optical amplification, a high peak power and nanosecond (ns) pulse width output can be achieved. ...

Specifications

Wavelength: 1550 nm
Average Output Power: 1.5 W
Pulse Duration: 0.5 - 250 ns
Beam Quality (M^2): 1.1
Max Pulse Repetition Rate: 3000 kHz
Data Sheet

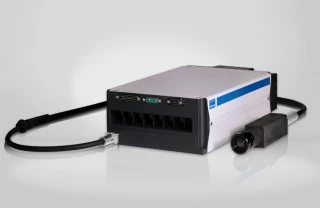

The JenLas® fiber ns series is available at 25, 35, 55, and 105 watt power levels, and are based on reliable, industry-proven fiber laser technology. Features include pulse durations of 125 – 150 nanoseconds, and peak pulse powers of up to 8 kilowatts. Designed specifically to meet the ...

Specifications

Wavelength: 1085 nm
Average Output Power: 100 W
Pulse Duration: 220 - 250 ns
Beam Quality (M^2): 1.8
Max Pulse Repetition Rate: 200 kHz
Data Sheet
The JenLas® fiber ns series is available at 25, 35, 55, and 105 watt power levels, and are based on reliable, industry-proven fiber laser technology. Features include pulse durations of 125 – 150 nanoseconds, and peak pulse powers of up to 8 kilowatts. Designed specifically to meet the ...

Specifications

Wavelength: 1085 nm
Average Output Power: 20 W
Pulse Duration: 200 - 260 ns
Beam Quality (M^2): 1.6
Max Pulse Repetition Rate: 80 kHz
Data Sheet
The JenLas® fiber ns series is available at 25, 35, 55, and 105 watt power levels, and are based on reliable, industry-proven fiber laser technology. Features include pulse durations of 125 – 150 nanoseconds, and peak pulse powers of up to 8 kilowatts. Designed specifically to meet the ...

Specifications

Wavelength: 1085 nm
Average Output Power: 30 W
Pulse Duration: 200 - 260 ns
Beam Quality (M^2): 1.6
Max Pulse Repetition Rate: 80 kHz
Data Sheet

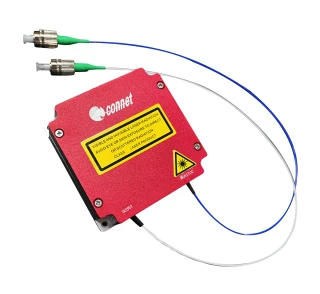

CoLID-Mini 1550nm short pulse fiber laser for LiDAR of Connet is a fiber laser source delivering high peak power and high pulse energy output based on safe wavelength for the human eyes. An optimized design with special configuration can achieve high peak power and ns-level pulse width laser output. It is an ideal light source ...

Specifications

Wavelength: 1550 nm
Average Output Power: 1.5 W
Pulse Duration: 0.5 - 250 ns
Beam Quality (M^2): 1.1
Max Pulse Repetition Rate: 3000 kHz
Data Sheet
The 1064nm pulsed laser source module of Connet Laser is specially designed for pulse application. It is an ideal seed laser for fiber laser. This laser source module employs internally high performance diode laser which is especially designed for pulse application. The laser is modulated directly to pulsed laser by the pulse circuit ...

Specifications

Wavelength: 1064 nm
Average Output Power: 0.4 W
Pulse Duration: 1 - 1000 ns
Beam Quality (M^2): 1.1
Max Pulse Repetition Rate: 1000 kHz
...
Data Sheet
PEFL-EOLA are pulsed Erbium fiber doped lasers delivering Fourier transform limited pulses. These eye-safe pulsed lasers are coming linearly polarized. These lasers have excellent RIN and phase noise characteristics. The Keopsys design allows the lasers to deliver energy pulse up to 10 µJ, pulsewidth ranges from 100 to 500 ns, ...

Specifications

Wavelength: 1550 nm
Average Output Power: Up to 4 W
Pulse Duration: 100 - 800 ns
Beam Quality (M^2): <1.1 to <1.5
Max Pulse Repetition Rate: From 10 to 20 kHz
...
Data Sheet
The PGFL series is a range of 532 nm pulsed fiber lasers, delivering high peak power and high energy per pulse in compact modules with a diffraction-limited output beam for range finding applications. Green lasers are commonly used for underwater operations in mapping and 3D scanning applications. The optical design consists of a ...

Specifications

Wavelength: 532 nm
Average Output Power: Up to 1.8 W
Pulse Duration: 0.5 - 4 ns
Beam Quality (M^2): From <1.1 to <1.4
Max Pulse Repetition Rate: 1000 kHz
...
Data Sheet
The PYFL-KULT series is a range of 1µm pulsed fiber laser transmitters, delivering highpeak power and high energy per pulse in ultra-compact modules with diffraction-limitedoutput beam for range finding applications. A varied choice of models offers the possibilityto operate over a wide range of operating setpoints (pulse ...

Specifications

Wavelength: 1064 nm
Average Output Power: Up to 2 W
Pulse Duration: 1 - 3 ns
Beam Quality (M^2): 1.1 to 1.3
Max Pulse Repetition Rate: 1000 kHz
...
Data Sheet
The PGFL series is a range of 532 nm pulsed fiber lasers, delivering high peak power and high energy per pulse in compact modules with a diffraction-limited output beam for range finding applications. Green lasers are commonly used for underwater operations in mapping and 3D scanning applications. The optical design consists of a ...

Specifications

Wavelength: 532 nm
Average Output Power: Up to 1.8 W
Pulse Duration: 0.5 - 4 ns
Beam Quality (M^2): From <1.1 to <1.4
Max Pulse Repetition Rate: 1000 kHz
...
Data Sheet
PUFL series UV fiber lasers are pulsed laser sources emitting at 355 nm and delivering high peak power pulse in a very compact package. The 355 nm series is a UV laser based on the combination of a powerful 1.0 µm fiber laser and a com-pact/efficient frequency converter. The output beam is near Gaussian and collimated. The ...

Specifications

Wavelength: 355 nm
Average Output Power: Up to 0.001 W
Pulse Duration: 0 - 1 ns
Beam Quality (M^2): <1.3
Max Pulse Repetition Rate: 100000000 kHz
...
Data Sheet
PEFL-EOLA are pulsed Erbium fiber doped lasers delivering Fourier transform limited pulses. These eye-safe pulsed lasers are coming linearly polarized. These lasers have excellent RIN and phase noise characteristics. The Keopsys design allows the lasers to deliver energy pulse up to 10 µJ, pulsewidth ranges from 100 to 500 ns, ...

Specifications

Wavelength: 1550 nm
Average Output Power: Up to 4 W
Pulse Duration: 100 - 800 ns
Beam Quality (M^2): <1.1 to <1.5
Max Pulse Repetition Rate: From 10 to 20 kHz
...
Data Sheet
PTFL-KULT 2 µm series Thulium doped fiber lasers are eye-safe pulsed laser sources delivering high peak power and high energy per pulse in a very compact package. The 2 µm KULT laser is one of the most compact laser of its category. Due to its low attenuation during atmospheric propagation, this laser allows ultra long ...

Specifications

Wavelength: 1995 nm
Average Output Power: 0.2 W
Pulse Duration: 10 - 40 ns
Beam Quality (M^2): <1.1
Max Pulse Repetition Rate: 20 kHz
...
Data Sheet
PEFL-KULT series are pulsed Erbium doped fiber lasers, delivering high peak power and high energy per pulse. These PEFL-KULT lasers provide high quality output beams (diffraction-limited, M2<1.1 or near Gaussian, M2<1.5). Our patented VSP technology insure robustness and high reliability for cost effective solution, without ...

Specifications

Wavelength: 1545/1550 nm
Average Output Power: Up to 2.5 W
Pulse Duration: 0.5 - 200 ns
Beam Quality (M^2): 1.1 to 1.5
Max Pulse Repetition Rate: 2000 kHz
Data Sheet

Frequently Asked Questions

Pulsed Fiber Lasers typically use either active or passive Q-switching to generate a train of laser pulses with durations in the order of 10s to100s of nanoseconds. In a typical Q-switching architecture intracavity lasing is modulated, thus curating the time windows where the resonator is open for lasing. This allows accumulation of population inversion in the off time and generation of high-energy laser pulses with short temporal profile when the gates are open. There is also a subset of pulsed fiber lasers that achieve pulsing through mode-locking that allows achieving sub-picosecond temporal domains in the creation of ultrashort pulses. We have a dedicated category for such ultrafast fiber lasers, which you can browse by selecting that particular category above.

A special component such as a saturable absorber is typically integrated with the design to achieve passive mode-locking in ultrafast fiber lasers. In some cases, the birefringence of the fiber itself is used. Mode-locking is the technique behind generating ultrafast laser pulses.

Unlike free-space lasers, many pulsed fiber lasers tend to emit unpolarized or partially polarized light. Unfortunately, for such lasers fixing it through external optics might also prove to be difficult since the polarization state of lasing modes might show inherent instability and can drift with temperature and other environmental factors.

In fiber lasers, Bragg grating mirrors are added to the fiber in order to amplify the signal. Therefore, the fiber itself acts as both the laser cavity and the gain medium. Fiber Bragg grating (FBG) is a periodic structure (segment of periodic variation of optical index) created inside the fiber core that causes the light to diffract, reflect or transmit based on the phase and wavelength. These periodic structures applied to the core of the optical fibers are typically a few millimeters or centimeters long with a period that is on the order of a wavelength or hundreds of nanometers. FBG acts as an effective optical filter in fiber optic devices including fiber lasers.

Compared to free-space pulsed lasers, fiber lasers are very compact and because the light is confined in a fiber, it can be easily coupled to other fibers and devices with minimal loss. Fiber lasers are also lighter than free-space lasers. This makes them easy to move around and work with. Given their compact and robust architecture fiber lasers have become a formidable competitor to other DPSS lasers for many applications including laser machine processing systems (laser engravers, laser cutters, laser welding machines, etc.).

Thanks to their flexibility, high pulse powers, and wide wavelength range pulsed fiber lasers are used in laser cutting, cleaning, marking, welding, and engraving. Some of the less popular applications of pulsed fiber lasers include LiDAR systems, sensing, and mapping.

Both types of lasers are commonly used in many machining applications including marking and cutting. However, the main difference lies in the quality of their performance and wavelength. Pulsed fiber lasers exhibit an overall higher performance and precision when it comes to cutting materials like copper and aluminum. The cost of operation is another huge difference between the two types of lasers. It is estimated that fiber lasers’ cost of operation is half that of CO2 lasers. This is primarily due to the longevity of fiber lasers compared with that of CO2 lasers which naturally age as the CO2 gas mixture deteriorates over time.

Did You know?

Pulsed fiber lasers have gained significant popularity in laser marking market specifically in advanced micro machining applications. Pulsed fiber lasers possess a number of useful and practical properties. They usually come in compact form factors with air-assisted cooling and offer nearly maintenance free performance, making it a great choice in manufacturing settings. Typically shorter pulsed systems (< 30ns) enable more controlled energy input when processing sensitive materials, while the longer pulsed systems (>200ns) find a range of applications like dark marking, cutting, welding and micro-machining.
