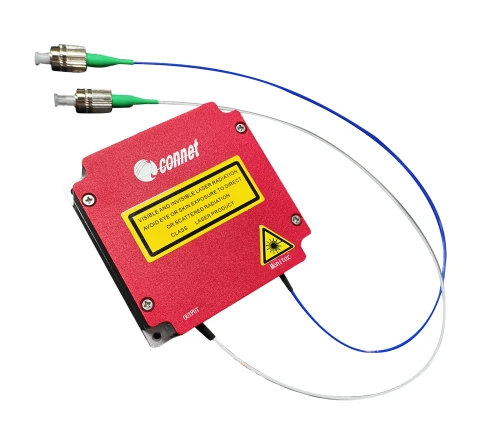

CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR

Name: CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR
Brand: Connet Laser Technology Co., Ltd.

Description

CoLID-Mini 1550nm short pulse fiber laser for LiDAR of Connet is a fiber laser source delivering high peak power and high pulse energy output based on safe wavelength for the human eyes. An optimized design with special configuration can achieve high peak power and ns-level pulse width laser output. It is an ideal light source for LiDAR, telemetry and range finding.

CoLID-Mini 1550nm short pulse fiber laser for LiDAR has a compact structure in small size (70x70x25mm) with wide operating temperature range, low delay jitter and power consumption. The pulse output can be achieved by external TTL trigger signal, which is very suitable for system integration.

Specifications

Wavelength:	1550 nm
Average Output Power:	1.5 W
Pulse Duration:	0.5 – 250 ns
Beam Quality (M^2):	1.1
Max Pulse Repetition Rate:	3000 kHz

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High peak power: up to 2 kW
Small size : 70x70x25 mm
Low delay jitter and power consumption
Good stability in the full temperature range
Pulse energy: up to 20 uJ
Near-diffraction-limited beam quality

Applications

LiDAR
Range Finding
Telemetry
3D Scanning
Other Scientific Research

Request Quote

To: Connet Laser Technology Co., Ltd.
Re: CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Connet Laser Technology Co., Ltd. ✓ Verified Supplier
On FindLight:: since 2016

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the wavelength of the CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR?

The wavelength of the CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR is 1550nm.

What are the dimensions of the CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR?

The dimensions of the CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR are 70x70x25mm.

What is the peak power output of the CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR?

The CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR can deliver a peak power output of up to 2 kW.

What are the applications of the CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR?

The CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR is suitable for applications such as LiDAR, range finding, telemetry, 3D scanning, and other scientific research.

Can the pulse output of the CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR be triggered externally?

Yes, the pulse output of the CoLID-Mini 1550nm Short Pulse Fiber Laser for LiDAR can be achieved by an external TTL trigger signal, making it suitable for system integration.
