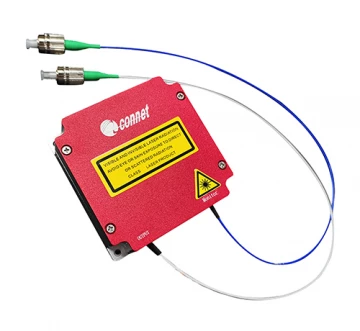

Thumbnail of CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR photo 1

Description

Connet Laser Technology introduces CoLID-Mini, a 1550nm short pulse fiber laser for LiDAR. This is a new fiber laser source delivering high peak power and high pulse energy output. An optimized design with special configuration can achieve a high peak power and nanosecond (ns) level pulse width laser output. It is an ideal light source for LiDAR, telemetry and range finding, among other applications.

CoLID-Mini 1550nm short pulse fiber laser for LiDAR has a compact structure (70x70x25mm) with wide operating temperature range, low delay jitter and power consumption. The pulse output can be achieved by external TTL trigger signal making this fiber laser suitable for system integration and OEM applications.

Ordering Information for customers:

  • CoLID-Mini-1550-M-PW-RR-PP-FA
  • PW: Pulse width in ns
  • RR: Repetition rate in kHz
  • PP: Peak power in kW, 01: 1kW
  • FA: FC/APC connector, Collimator (Col) is optional.

Example: CoLID-Mini-1550-M-03-500-01-FA, i,e, a CoLID-Mini 1550nm Short Pulse Fiber Laser, 3ns pulse width, 500kHz repetition rate, 1kW peak power, FC/APC connector.

CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Wavelength: 1550 nm
Average Output Power: 1.5 W
Pulse Duration: 0.5 – 250 ns
Beam Quality (M^2): 1.1
Max Pulse Repetition Rate: 500 kHz

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

This 1550nm nanosecond fiber laser exhibits various features, such as:

  • High peak power: up to 2kW
  • Small size : 70x70x25mm
  • Low delay jitter and power consumption
  • Good stability in the full operating temperature range
  • Pulse energy: up to 20uJ
  • Near-diffraction-limited beam quality

For other wavelegnths, higher output power, different pulse widths or a repetition rate, please contact Connet Laser Technology. We will be happy to work with you and customize our products to meet your needs.

Applications

Connet's nanosecond fiber lasers are typically used in the following applications:

  • LiDAR
  • Range Finding
  • Telemetry
  • 3D Scanning
  • Metrology
  • Scientific Research

Applications in other areas are also possible. We will support your requests and try to meet the needs of your specific application.

Frequently Asked Questions

What is the wavelength of the CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR?
The wavelength of the CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR is 1550nm.
What are the dimensions of the CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR?
The dimensions of the CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR are 70x70x25mm.
What is the peak power of the CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR?
The peak power of the CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR can reach up to 2kW.
Can the CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR be integrated into a system?
Yes, the CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR can be integrated into a system and is suitable for system integration and OEM applications.
What are the applications of the CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR?
The CoLID-Mini 1550nm Short Pulse Fiber Laser Source for LiDAR is commonly used in applications such as LiDAR, range finding, telemetry, 3D scanning, and scientific research.

Got more questions? Use the inquiry form to ask the supplier directly.
