Description
Box Optronics’ 1550 nm, all-fiber source delivers up to 100 µJ pulses and 10 kW peak power with 1–200 ns width and 1 kHz–3 MHz repetition rate from a compact 100 × 100 × 30 mm module.
Linear-polarized, single-mode (M² ≤ 1.1) output exhibits ≤ ±1 % power stability over 8 h, 30 dB isolation, and 30 W 12 V DC consumption. RS-232 control, FC/APC or collimated port, and -5–35 °C operation make it ideal for eye-safe LiDAR, range-finding and nonlinear optics.
High Power Nanosecond Pulse Fiber Laser
Specifications
| Wavelength: | 1550 nm |
|---|---|
| Average Output Power: | 2 W |
| Pulse Duration: | 1 – 200 ns |
| Beam Quality (M^2): | 1.1 |
| Max Pulse Repetition Rate: | 3000 kHz |
| Output Isolation: | ≥30 dB |
| Fiber Type: | SMF-28e, Length ≥0.3m |
| Connector: | FC/APC or fiber collimator |

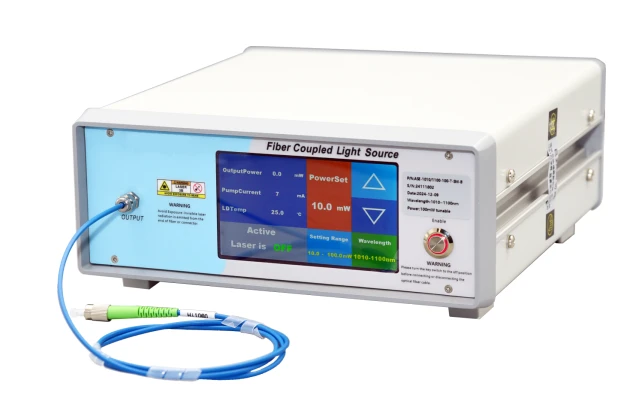

| Dimensions 1.0: | 255(W)×322(D)×115(H) Benchtop |

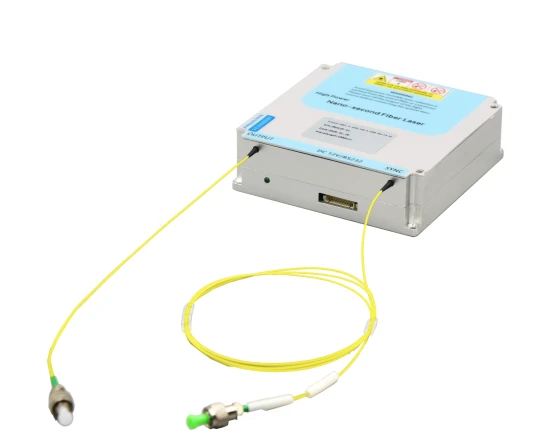

| Dimensions 2.0: | 100(W)×100(D)×30(H) Module |
| Dimensions 3.0: | 70(W)×70(D)×25(H) Module |
Download Data Sheet
Features
- All-fiber structure
- High pulse energy

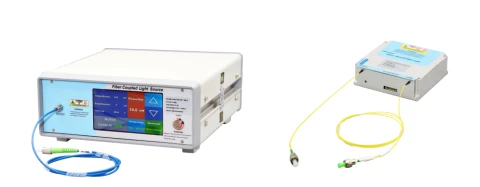

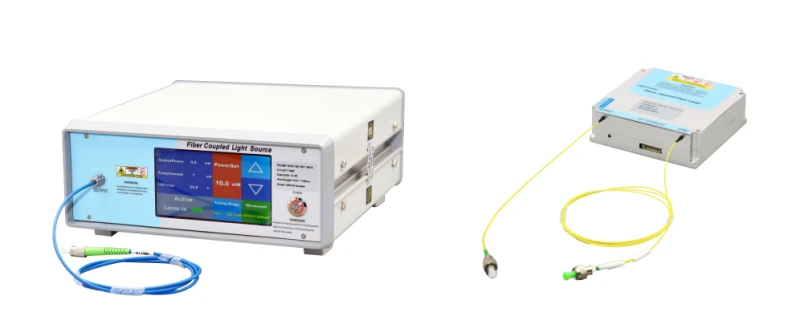

- Benchtop or Module Package
Applications
- LiDAR
- Laser Ranging
- Nonlinear Optics
Frequently Asked Questions
What is the operating wavelength of the High Power Nanosecond Pulse Fiber Laser?
The operating wavelength is 1550±1 nm.
What are the main applications of this laser?
The main applications include LiDAR, laser ranging, and nonlinear optics.
What is the maximum single pulse energy of the laser?
The maximum single pulse energy is 100 μJ at ≤10kHz and ≥10ns.
What is the power supply requirement for the benchtop version?
The power supply requirement for the benchtop version is AC 100~240V, 30W.
What is the pulse width range for this laser?
The pulse width is adjustable from 1 to 200 ns.
What is the beam quality (M²) of the laser?
The beam quality M² is ≤1.1.
What are the dimensions of the benchtop package?
The dimensions of the benchtop package are 255 mm (W) × 322 mm (D) × 115 mm (H).
