Description
This product is a 1.5μm pulsed fiber laser source for human eye safety developed by Lumispot Tech. The product can produce peak power output, with high electric-optical conversion efficiency, low ASE and nonlinear effect noise, and wide temperature operating range. It is suitable for use as a LiDAR emission light source.

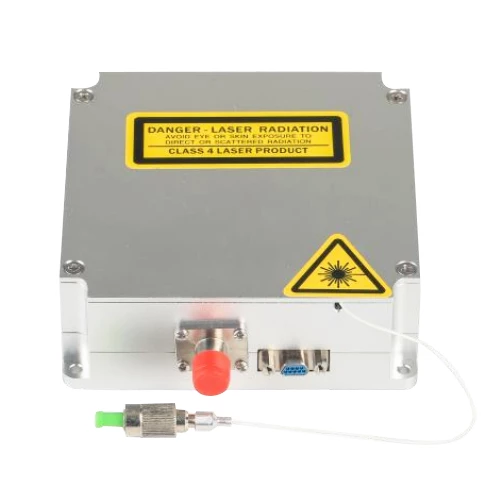

1550nm Pulsed Fiber Laser For Remote Sensing Mapping
Specifications
| Wavelength: | 1550 nm |
|---|---|
| Average Output Power: | 1 W |
| Pulse Duration: | 3 – 5 ns |
| Beam Quality (M^2): | 1 |
| Max Pulse Repetition Rate: | 1.6 kHz |
| Re-frequency: | 0.1-2 MHz |
| Peak Power: | 1.6 kW |
| Polarization State: | Random |
| Weight: | 100 g |
| Output Fiber Length: | 0.5 m |
Download Data Sheet
Features
- Laser integration technology
- Narrow pulse drive and shaping technology
- ASE noise suppression technology
- Narrow pulse amplification technique
- Low power and low repetition frequency
Applications
- Automatic driving
- Laser ranging
- Remote sensing Mapping
- Security monitoring
