Description

1550nm Nano-second Pulse Fiber Laser – DK-XS-DT-006-A/2

The DK-XS-DT-006-A/2 1550nm Nano-second Pulse Fiber Laser from DK Photonics is a high-performance, single-frequency fiber laser designed for advanced photonics applications. Utilizing a rare earth-doped fiber DFB (Distributed Feedback) laser cavity, this laser delivers a stable, single longitudinal mode output at 1550nm, making it an ideal choice for demanding environments where precision and reliability are paramount.

This fiber laser stands out for its ultra-narrow spectral linewidth of less than 3kHz and an exceptional side mode suppression ratio (SMSR) exceeding 60dB. Such characteristics ensure high spectral purity and minimal noise, which are critical for applications like high-power laser seeding, nonlinear optics experiments, and distributed fiber sensing. The all-fiber construction enhances robustness and longevity, reducing maintenance and ensuring consistent performance over extended periods.

Flexibility is a core advantage of the DK-XS-DT-006-A/2. Users can precisely adjust the pulse width (5–30ns), repetition frequency (1–100kHz), and peak output power (5–30W), allowing for tailored operation to meet specific experimental or industrial requirements. The laser is available in both desktop and compact module formats, catering to a wide range of integration needs, from laboratory setups to OEM system integration.

The device supports both SMF-28 and PM1550 Panda fiber types, ensuring compatibility with standard and polarization-maintaining fiber systems. With its robust power stability (≤±0.02dB over 15 minutes, ≤±0.05dB over 10 hours) and external trigger capability, the DK-XS-DT-006-A/2 is engineered for precision and repeatability. Its user-friendly interface—button control for desktop or RS232 for module—further simplifies operation and integration.

Designed to operate reliably in a wide temperature range (-5°C to +55°C) and humidity conditions (0–70%), this fiber laser is well-suited for both laboratory and field environments. Whether used as a high-power seed source or in advanced sensing and nonlinear optics, the DK-XS-DT-006-A/2 delivers the performance and versatility required by today’s photonics professionals.

1550nm Nano-Second Pulse Fiber Laser

Visit the DK Photonics Store

Specifications

Wavelength: 1550 nm
Average Output Power: 30 W

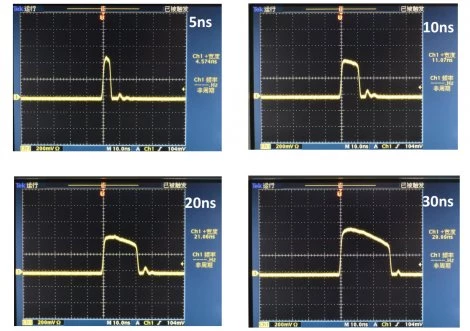

Pulse Duration: 5 – 30 ns
Max Pulse Repetition Rate: 100 kHz
Center Wavelength: 1550±1 nm
Spectral Width: ≤1 nm
Peak Output Power: 5~30 W adjustable
Pulse Width: 5~30 ns adjustable
Repeat Frequency: 1~100 kHz adjustable
Power Stability: ≤±0.02 dB @15min, ≤±0.05 dB @10h
Trigger Method: External trigger
Fiber Type: SMF-28 / PM1550 Panda
Optical Connector: FC/APC
Control Mode (Desktop): Button
Control Mode (Module): RS232
Communication Interface: DB9 Female (Optional)
Power Supply (Desktop): 100~240V AC, <30W
Power Supply (Module): 5V DC, <15W
Dimensions (Desktop): 260(W)×280(D)×120(H) mm
Dimensions (Module): 125(W)×150(D)×20(H) mm
Operation Temperature Range: -5~+55°C
Operation Humidity Range: 0~70%

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 1550nm Nano-second Pulse Fiber Laser – Delivers high-performance pulsed laser output at 1550nm, ideal for advanced photonics applications.
  • Ultra-Narrow Linewidth – Single frequency, single longitudinal mode with spectral linewidth <3kHz for superior coherence and stability.
  • High Side Mode Suppression Ratio (SMSR) – >60dB SMSR ensures clean spectral output and minimal noise.
  • Adjustable Pulse Parameters – Pulse width (5–30ns), repetition frequency (1–100kHz), and peak output power (5–30W) are all user-adjustable for maximum flexibility.
  • All-Fiber Structure – Robust, alignment-free design for enhanced reliability and long-term stability.

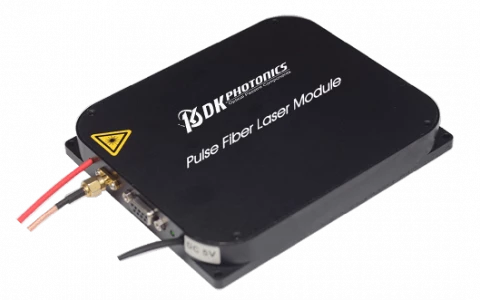

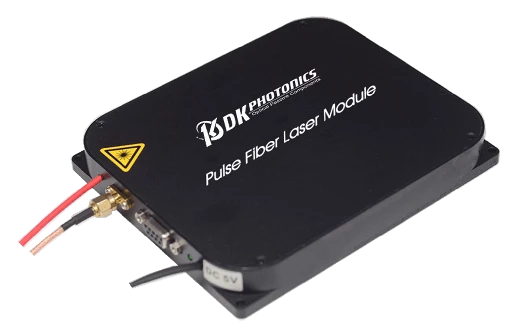

  • Multiple Packaging Options – Available in both desktop and compact module formats to suit laboratory or OEM integration.
  • External Trigger Capability – Supports external triggering for precise synchronization with other equipment.
  • Fiber Type Options – Choose between SMF-28e or PM1550 Panda fiber for standard or polarization-maintaining applications.
  • High Power Stability – Exceptional power stability (≤±0.02dB @15min, ≤±0.05dB @10h) for consistent performance in demanding environments.
  • Flexible Control Interfaces – Desktop version with button control; module version with RS232/DB9 interface for remote operation and easy system integration.
  • Wide Operating Conditions – Operates reliably from -5°C to +55°C and 0–70% humidity, suitable for diverse environments.
  • Standard FC/APC Optical Connector – Ensures low back-reflection and compatibility with common fiber optic systems.
  • Low Power Consumption – Efficient design with <30W (desktop) or <15W (module) power requirements.
  • Customizable Specifications – Tailored solutions available for wavelength, power, pulse width, and more to meet specific application needs.
  • Typical Applications: High power laser seed source, nonlinear optics, fiber distributed sensing, scientific research, and industrial testing.

Applications

  • Optical Fiber Sensing: Ideal for distributed fiber optic sensing systems, including temperature, strain, and acoustic sensing in structural health monitoring, oil & gas pipelines, and perimeter security.
  • Seed Source for High Power Fiber Lasers: Serves as a stable, narrow-linewidth seed laser for high power fiber laser amplification systems in industrial and scientific applications.
  • Nonlinear Optics Research: Suitable for generating supercontinuum, frequency conversion, and other nonlinear optical phenomena due to its high peak power and narrow linewidth.
  • LIDAR (Light Detection and Ranging): Used in LIDAR systems for precise distance measurement, atmospheric monitoring, and 3D mapping, benefiting from its stable pulse characteristics.
  • Optical Coherence Tomography (OCT): Provides a coherent and stable light source for high-resolution imaging in medical diagnostics and material inspection.
  • Quantum Optics and Quantum Communication: Supports quantum key distribution (QKD) and other quantum information applications requiring narrow linewidth and low phase noise.
  • Metrology and Spectroscopy: Enables high-precision measurements and spectral analysis in scientific research and industrial quality control.
  • Component Testing and Characterization: Used as a reference source for testing optical components such as isolators, circulators, and filters at 1550nm.
  • Telecommunications and Photonic Device Development: Supports R&D and production testing of photonic devices and systems operating in the C-band (1550nm).
  • Environmental and Atmospheric Sensing: Suitable for remote sensing and environmental monitoring applications, including gas detection and pollution analysis.
  • Laser Spectroscopy: Facilitates high-resolution laser spectroscopy for chemical and biological analysis.
  • Interferometry: Provides a stable light source for interferometric measurements in precision engineering and scientific research.

Frequently Asked Questions

What is the DK Photonics 1550nm Nano-second Pulse Fiber Laser?
The DK Photonics 1550nm Nano-second Pulse Fiber Laser is a high-performance, single-frequency, narrow linewidth fiber laser designed for applications such as high power laser seed sources, nonlinear optics, and fiber distributed sensing. It features an all-fiber structure, adjustable pulse width, repetition frequency, and output power, and is available in both desktop and modular packaging.
What are the key features and specifications of the 1550nm Nano-second Pulse Fiber Laser?
Key features include an all-fiber structure, adjustable pulse width (5–30 ns), adjustable repetition frequency (1–100 kHz), and adjustable peak output power (5–30 W, customizable). The laser operates at a center wavelength of 1550±1 nm, with a spectral linewidth less than 3 kHz and a side mode suppression ratio over 60 dB. It offers high power stability (≤±0.02 dB @15min, ≤±0.05 dB @10h) and supports both SMF-28 and PM1550 Panda fiber types.
What applications is the DK Photonics 1550nm Nano-second Pulse Fiber Laser suitable for?
This fiber laser is ideal for use as a high power laser seed source, in nonlinear optics experiments, and for fiber distributed sensing applications. Its narrow linewidth and high stability make it suitable for precision measurement, LIDAR, and scientific research.
How do I select the right configuration and customize the DK Photonics 1550nm Nano-second Pulse Fiber Laser?
You can select the appropriate configuration by specifying the wavelength range, package type (module or desktop), fiber type (SMF-28e or PM1550 Panda), and output power. For custom requirements, provide a detailed description of your specifications when inquiring, including desired pulse width, repetition frequency, and power levels.
What are the available control and communication interfaces for this fiber laser?
The desktop version is controlled via a button interface and powered by 100–240V AC (
What are the environmental operating conditions for the DK Photonics 1550nm Nano-second Pulse Fiber Laser?
The laser operates reliably within a temperature range of -5°C to +55°C and a humidity range of 0% to 70%, making it suitable for a variety of laboratory and industrial environments.
What fiber types and optical connectors are supported by this fiber laser?
The DK Photonics 1550nm Nano-second Pulse Fiber Laser supports both SMF-28 and PM1550 Panda fiber types, and comes standard with an FC/APC optical connector, ensuring compatibility with a wide range of optical systems.
