Description
The HFL-1 is a high energy q-switched 1064nm wavelength stabilized OEM fiber laser from Bktel. This ultra-compact, q-switched series of lasers are designed for a wide range of applications that require high pulse repetition rates up to several megahertz and large average power.
The HFL-1 delivers up to 150 uJ of pulse energy and a pulse width between 0.4 and 10 ns. High-speed triggering is available by external triggering, TTL, or LVDS make this laser ideal for integration into a wide range of high-speed applications.
HFL-1 laser produces a perfect TEM00 output beam which can be delivered via an FC/APC fiber connector or an optional collimating lens. This laser requires less than 50 W pf power consumption and comes standard with RS-232 communication interface
All of these features make the HFL-1 laser series a robust tool for applications like LIDAR, 3D Scanning, and many others.

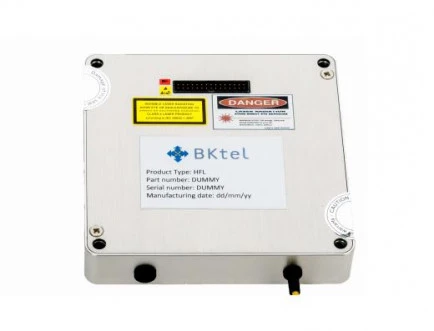

HFL-1: 1µm Band High Power Pulsed Fiber Laser
Specifications
Wavelength: | 1064 nm |
---|---|
Average Output Power: | 5 W |
Pulse Duration: | 0.4 – 10 ns |
Max Pulse Repetition Rate: | 500 kHz |
Center Wavelength: | 1030 / 1053 / 1064 … 1100 nm |
Wavelength Drift: | 0.1 nm/°C |
Laser Peak Power: | Up to 25 W |
Laser Output Power, Average: | Up to 5 W |
Pulse Width: | 0.4 … 10 ns |
Pulse Energy: | Up to 150 µJ |
Repetition Rate: | 10 … 500 kHz |
Pulse Timing: | External trigger, TTL |
Polarization: | Random / Linear |
Mechanical Dimensions: | 110x110x20 mm |
Operating Case Temperature: | -5…+65 °C |
Output Fiber Length: | 30 cm |
Output Termination: | SC/APC, FC/APC, Collimator |
Power Supply Voltage: | +12 / +24 VDC |
Power Consumption: | <50 W |
Communication Interface: | RS-232 |
Features
- High peak power, up to 25kW
- Compact Package
- Low Power Consumption
Applications
- Distance measurement Airborne LIDAR
- 3D Scanning
- Test & Measurement
Frequently Asked Questions
What is the wavelength of the HFL-1 laser?
What is the pulse energy of the HFL-1 laser?
What are the applications of the HFL-1 laser?
What is the power consumption of the HFL-1 laser?
What type of communication interface does the HFL-1 laser have?
