Description
The CoLID-HP 1064nm short pulse fiber laser for LiDAR by Connet is a high peak power, high pulse energy fiber laser source designed for LiDAR applications. It utilizes the MOPA configuration and an all-fiber optimized design to deliver a high peak power output and a near diffraction-limit quality beam.
This laser is ideal for applications such as 3D scanning, telemetry, and range finding in LiDAR systems. With its compact and rugged module package, integrated trigger and output monitor, and optional external trigger mode, the CoLID-HP-1064 offers easy deployment, maintenance-free operation, and excellent cost-effectiveness.

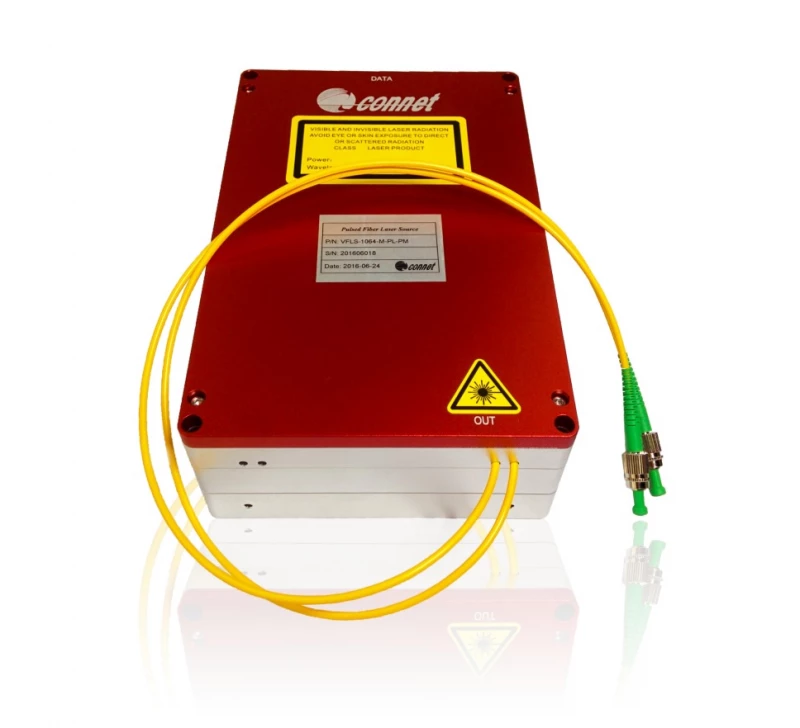

CoLID-HP 1064nm Short Pulse Fiber Laser for LiDAR
Specifications
| Wavelength: | 1064 nm |
|---|---|
| Average Output Power: | 5 W |
| Pulse Duration: | 1 – 50 ns |
| Beam Quality (M^2): | 1.2 |
| Max Pulse Repetition Rate: | 10 kHz |
| Peak Power: | 5 kW |
| Max Average Power: | 5 W |
| Output Power Stability: | ±2 % |
| Operation Mode: | Pulse |
| Polarization: | Random |
| Trigger Mode: | Internal or External TTL Trigger |
| Output Fiber Type: | SM or LMA fiber |
| Output Fiber Length: | 0.5 m |
| Optical Connector: | FC/APC or Collimator |
| Communication Interface: | RS232 |
| Operating Voltage: | 12-24 VDC |
| Warm-up Time: | 1 min |
| Cooling Mode: | Air-cooling |
| Operating Temperature: | -35 to +50 °C |
| Storage Temperature: | -40 to +85 °C |
| Dimension: | 200 (L) x 135 (W) x 60 (H) mm |
Download Data Sheet
Features
- High peak power: up to 50kW
- Maximum average power: 5W
- Adjustable repetition rate: 10-500kHz
- Excellent beam quality
- Maintenance-free operation
Applications
- LiDAR
- 3D scanning
- Range finding
- Target detection
- Telemetry
Frequently Asked Questions
Is the CoLID-HP 1064nm short pulse fiber laser easy to deploy and maintain?
Yes, it offers easy deployment, maintenance-free operation, and excellent cost-effectiveness.
What is the CoLID-HP 1064nm short pulse fiber laser used for?
It is designed for LiDAR applications such as 3D scanning, telemetry, and range finding.
What is the cooling mode of the CoLID-HP 1064nm short pulse fiber laser?
The cooling mode is air-cooling.
What is the maximum average power of the CoLID-HP 1064nm short pulse fiber laser?
The maximum average power is 5W.
What is the range of the repetition rate of the CoLID-HP 1064nm short pulse fiber laser?
The repetition rate is adjustable from 10-500kHz.
