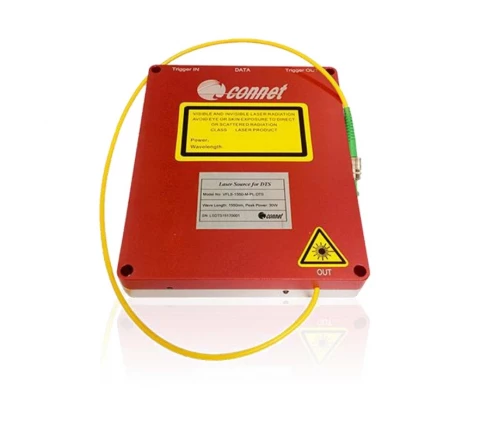

Thumbnail of Connet 1030nm Picosecond Pulsed Fiber Laser photo 1

Description

The Connet 1030nm picosecond pulsed fiber laser is an innovative solution featuring an all-fiber design and built upon SESAM passive mode-locked technology. This polarization-maintaining fiber laser delivers stable, linearly polarized picosecond laser output, ensuring high reliability and maintenance-free operation.

Whether for scientific research or as a seed laser for high-power industrial-grade ultrafast pulsed fiber lasers, this laser is the optimal choice.

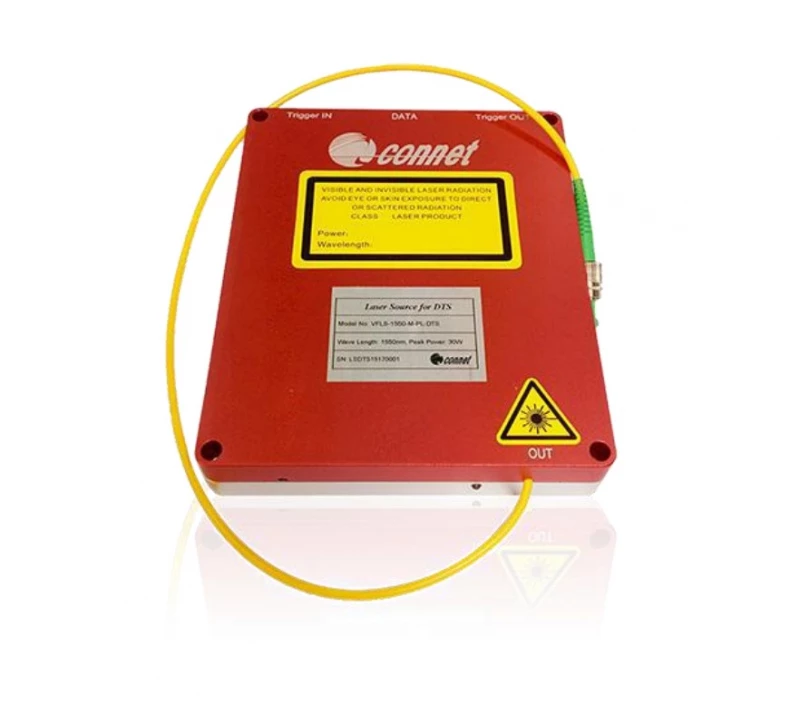

Connet 1030nm Picosecond Pulsed Fiber Laser

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Wavelength: 1030 nm
Average Output Power: 0.03 W
Pulse Duration: 0.005 – 0.01 ns
Beam Quality (M^2): 1.1
Max Pulse Repetition Rate: 60000 kHz
Spectral Width: 1 nm
Output Power: >2 >30 mW
Polarization: Linear Polarization
Polarization Extinction Ratio (PER): 20 dB
Output Isolation: 35 dB
Pulse Peak Stability: 5.0 %
Operating Temperature: +10 to +50 ℃
Storage Temperature: -40 to +85 °C
Supply Voltage: 5.5-12 VDC
Output Fiber Type: PM980-XP PM1060L
Output Fiber Length: > 0.5 m
Output Fiber Connector: FC/APC (other options available)
Dimension: 150(L)x125(W)x25(H) mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • SESAM passive mode-locked all PM fiber design
  • Narrow spectral width (<1nm)
  • Robust and compact design
  • 5ps pulse width, MHz repetition rate
  • Low amplitude noise
  • Maintenance-free operation

Applications

  • Seed laser for fiber laser or fiber amplifier
  • Time precision detection
  • Test and measurement
  • Research and Development (R&D)
  • LiDAR

Frequently Asked Questions

What are some applications of the Connet 1030nm picosecond pulsed fiber laser?
The laser can be used as a seed laser for fiber laser or fiber amplifier, for time precision detection, test and measurement, R&D, and LiDAR.
What is the polarization of the laser output?
The laser output is linearly polarized.
What is the pulse width of the laser?
The pulse width of the laser is 5-10 ps.
What is the repetition rate of the laser?
The repetition rate of the laser is 20-60 MHz.
What is the wavelength of the Connet 1030nm picosecond pulsed fiber laser?
The wavelength of the Connet 1030nm picosecond pulsed fiber laser is 1030nm.

Got more questions? Use the inquiry form to ask the supplier directly.
