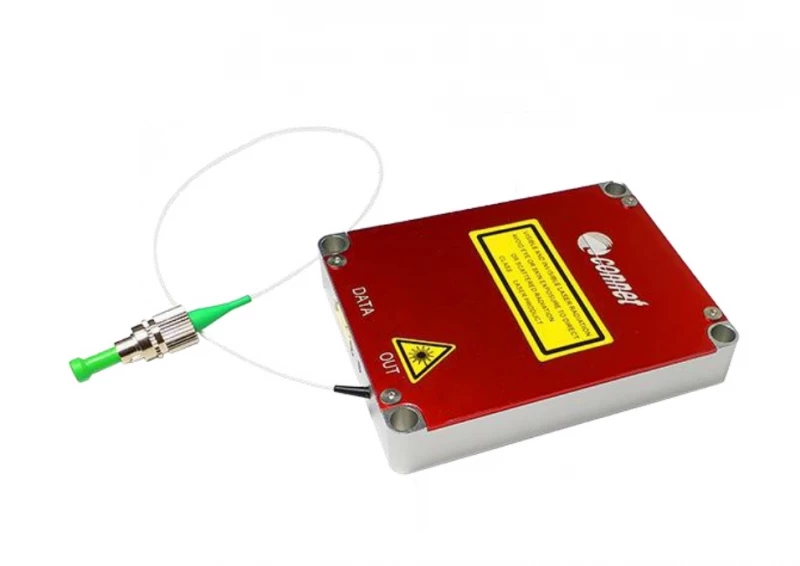

Thumbnail of CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR photo 1

Description

The CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR by Connet is a high-performance fiber laser source designed specifically for LiDAR applications. With its optimized design and Master Oscillator Power-Amplifier (MOPA) configuration, it delivers high peak power and pulse energy, making it ideal for LiDAR, telemetry, range finding, and more.

The compact and robust module offers easy control and integration, making it a reliable choice for demanding LiDAR systems.

CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Wavelength: 1550 nm
Average Output Power: 1.5 W
Pulse Duration: 0.5 – 250 ns
Beam Quality (M^2): 1.1
Max Pulse Repetition Rate: 3000 kHz
Pulse Energy @<10kH: 100 μJ
Polarization: Random
Output Power Stability: ±1.5 %
Output Isolation: 45 dB
Operating Temperature: -35 to +65 ℃
Storage Temperature: -40 to +85 ℃
Operating Voltage: 5.5-12 VDC
Trigger Mode: External TTL Trigger
Optical Connector: FC/APC or Collimator
Output Fiber Length: >0.3 m
Weight: <330 g
Dimension: 100 (L) x 90 (W) x 25 (H) mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High peak power and pulse energy for superior LiDAR performance
  • Narrow pulse width from 0.5ns to 250ns for precise ranging and measurement
  • Wide operating temperature range with low power consumption
  • Compact module design with integrated MCU for easy control
  • Support for external TTL trigger mode for seamless system integration
  • Eye-safe 1550nm wavelength with near diffraction-limit beam quality

Applications

  • LiDAR systems for autonomous vehicles and robotics
  • Range finding and target detection
  • Telemetry and remote sensing
  • 3D scanning and mapping
  • Metrology and pollution detection
  • Scientific research in various fields

Frequently Asked Questions

What are the applications of the CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR?
The CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR is suitable for LiDAR systems for autonomous vehicles and robotics, range finding and target detection, telemetry and remote sensing, 3D scanning and mapping, metrology and pollution detection, and scientific research in various fields.
What are the features of the CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR?
The CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR features high peak power and pulse energy for superior LiDAR performance, narrow pulse width from 0.5ns to 250ns for precise ranging and measurement, wide operating temperature range with low power consumption, compact module design with integrated MCU for easy control, and support for external TTL trigger mode for seamless system integration.
What are the specifications of the CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR?
The specifications of the CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR include center wavelength of 1540-1565nm, pulse energy up to 100uJ, peak power up to 10kW, pulse width from 0.5ns to 250ns, repetition rate from 1kHz to 3MHz, and near diffraction-limit beam quality.
What is the CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR?
The CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR is a high-performance fiber laser source designed specifically for LiDAR applications.
What is the ordering information for the CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR?
The ordering information for the CoLID-II 1550nm Short Pulse Fiber Laser for LiDAR includes pulse width in ns, repetition rate in kHz, peak power in kW, and connector type (FC/APC or collimator). An example of the ordering information is CoLID-II-1550-07-20-04-FA, which stands for CoLID-II 1550nm Short Pulse Fiber Laser with 7ns pulse width, 20kHz repetition rate, 4kW peak power, and FC/APC connector.

Got more questions? Use the inquiry form to ask the supplier directly.
