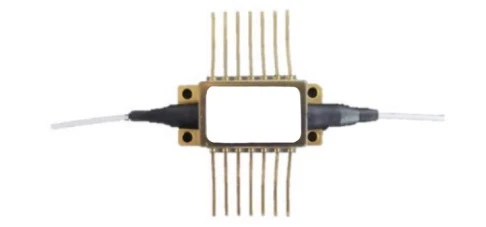

Rof Optoelectronics Electro-Optic Amplifier SOA Butterfly Semiconductor Optical Amplifier

Name: Rof Optoelectronics Electro-Optic Amplifier SOA Butterfly Semiconductor Optical Amplifier
Brand: Beijing Rofea Optoelectronics Co,. Ltd.
Availability: InStock

Description

Rof-SOA butterfly semiconductor optical amplifier (SOA) is mainly used for 1550nm wavelength optical amplification, using sealed inorganic butterfly device packaging technology, the whole process of domestic autonomous control, with high gain, low power consumption, low polarization related loss, high extinction ratio and other characteristics, support temperature monitoring and TEC thermoelectric control, to ensure the stability of the whole temperature.

Specifications

Amplifier Type:	SOA - Semiconductor Optical Amplifier
Wavelength Range:	1490 – 1590 nm
Min Input Power:	12 dBm
Max Output Power:	12 dBm
Nominal Gain:	25 dB
Output Fiber Type:	Not Specified
Operating Wavelength Range:	1490-1590 nm
Bandwidth @-3dB:	55-60 nm
Saturated Optical Power:	12-15 dBm
Small-signal Gain:	25-30 dB
Saturation Output Gain:	12 dB
Working Current:	250-400 mA
Forward Voltage:	1.8 V
Extinction Ratio:	50 dB
TEC Current:	1.8 A
TEC Voltage:	3.4 V
Polarization Dependent Gain:	1.5-2 dB
Thermistor Resistance:	9.5-10.5 KΩ
Thermistor Current:	5 mA
Operating Temperature:	-10 to 70 ℃
Storage Temperature:	85 ℃

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High gain
Low power consumption
Low polarization dependent loss
High extinction ratio
Supports temperature monitoring and TEC thermoelectric control

Applications

Production and performance testing of optical fiber devices
Small signal power amplification
Laboratory research field
Optical fiber communication system

Name

Work Email

Organization (recommended)

How many do you need?

Your message to supplier

FAST RESPONSE

Ships from:

China

Sold by:

Beijing Rofea Optoelectronics Co,. Ltd. ✓ Verified Supplier

On FindLight:

since 2023

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the Rof-SOA butterfly semiconductor optical amplifier used for?

The Rof-SOA butterfly semiconductor optical amplifier is mainly used for 1550 nm wavelength optical amplification.

What are the key features of the Rof-SOA amplifier?

The key features include high gain, low power consumption, low polarization dependent loss, high extinction ratio, and support for temperature monitoring and TEC thermoelectric control.

What is the operating wavelength range of the Rof-SOA amplifier?

The operating wavelength range is from 1490 nm to 1590 nm.

What is the typical small-signal gain of the Rof-SOA amplifier?

The typical small-signal gain is between 25 dB and 30 dB.

What is the maximum operating temperature for the Rof-SOA amplifier?

The maximum operating temperature is 70°C.

What is the purpose of TEC thermoelectric control in the Rof-SOA amplifier?

TEC thermoelectric control is used to ensure the stability of the whole temperature of the device.

What is the saturation output gain of the Rof-SOA amplifier?

The saturation output gain is 12 dB.
